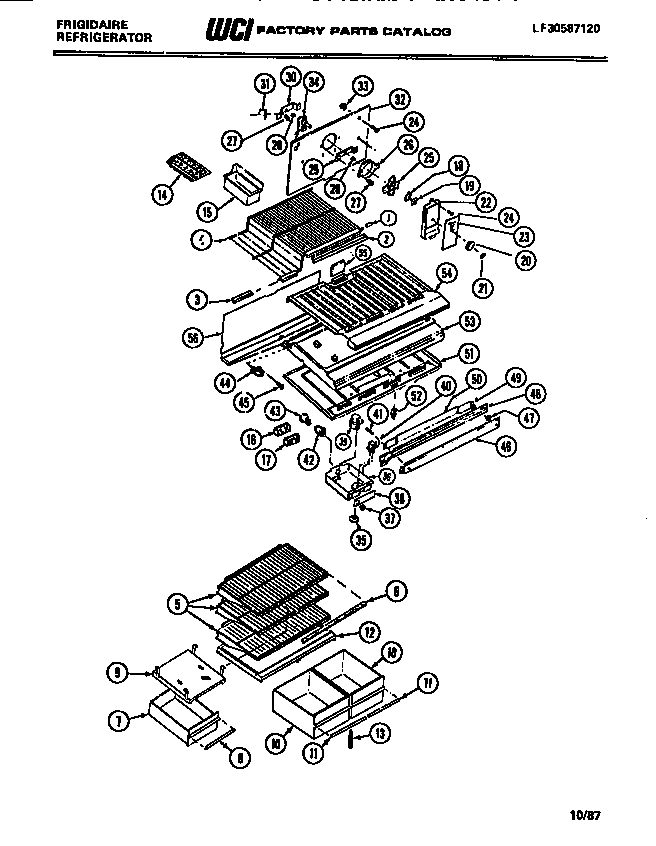

FPI16TEH0 04 – SHELVES, MOULDING

Products

Position	Product
1	WCI 8013638
2	TRIM, SHELF
3	TRIM-HALF SHELF (3)
4	WCI 8009859
5	SHELF, FULL (3)
6	TRIM, SHELF (3)
7	MEAT PAN
8	TRIM-MEAT PAN
9	WCI 8017502
10	PAN-CRISPER RS
11	TRIM-PAN
12	WCI 8013649
13	WCI 8013637
14	ICE CUBE TRAY (2)
15	ICE, CONTAINER
16	WCI 8000071
17	WCI 8000055
18	WCI 8000066
19	WCI 8000067
20	WCI 8009793
21	WCI 8009823
22	WCI 8009817
23	LABEL-FAN COVER
24	SCREW (5)
25	WCI 8000010
26	WCI 8000124
27	SCREW-PANEL MOUNTING (56)
28	WCI 8000032
29	WCI 8000043
30	WCI 8000042
31	WCI 8000107
32	COVER-EVAPORATOR
33	WCI 8000126
34	WCI 8004176
35	WCI 8010011
36	CONTROL BOX
37	WCI 8016615
38	WCI 8009816
39A	WCI 8000008
39	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
40	WCI 8017218
40A	SCREW-CONTROL MOUNTING (2) (NON-ILLUSTRATED)
41	WCI 8003637
42	WCI 8000129
43	WCI 8000801
44	WCI 8000056
45	WCI 8013647
46B	WCI 8010031
47	WCI 8003607
48	WCI 8017408
49	WCI 8010007
50	WCI 8003604
51A	SCREW-TOP MOUNTING (3)
51	WCI 8010000
52	SWITCH, LIGHT
53	WCI 8009750
54	WCI 8010002
55	WCI 8000185
56A	WCI 8006993
56	DRAIN TROUGH
