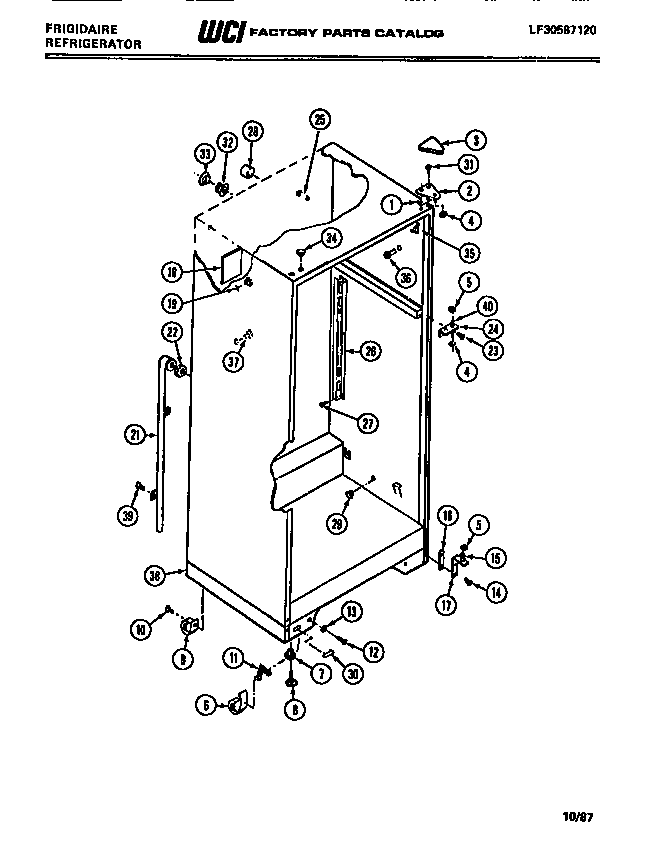

| 1 | WCI 8012829 |
| 2 | WCI 8012843 |
| 3D | COVER, HNG, ALMD |
| 4 | WASHER-1/4 NYLON (3) |
| 5 | WASHER-5/16 NYLON |
| 6 | WCI 8009760 |
| 7 | WCI 8003584 |
| 8 | SCREWS LEVELING (4) |
| 9 | WCI 8009773 |
| 9A | SCREW (5) |
| 10 | WCI 8009762 |
| 11 | WCI 8009790 |
| 12 | WCI 8009761 |
| 13A | WCI 8013678 |
| 13 | WCI 8011326 |
| 14 | SCREW-HINGE MOUNTING |
| 15 | PIN-LOWER HINGE |
| 16 | SHIM-LOWER HINGE |
| 17 | WCI 8017609 |
| 18 | WCI 8000082 |
| 19 | WCI 8016571 |
| 21 | WCI 8010012 |
| 22 | WCI 8009755 |
| 23 | SCREW-HINGE/MULLION (4) |
| 24 | WCI 8000757 |
| 25 | WCI 8000097 |
| 26 | WCI 8000302 |
| 27 | WCI 8002728 |
| 28 | WCI 8000004 |
| 29 | PLUG-REFRIGERATOR LINER (2) |
| 30 | WCI 8003585 |
| 31 | SCREW-HINGE MOUNTING (2) |
| 32 | WCI 8006970 |
| 33 | WCI 8006971 |
| 34D | WCI 8007129 |
| 35D | WCI 8010018 |
| 36 | WCI 8002747 |
| 37 | WCI 8009759 |
| 38 | CABINET BASE |
| 39A | TAPPING PLATE (4) |
| 39 | SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED) |
| 40 | WCI 8000184 |
