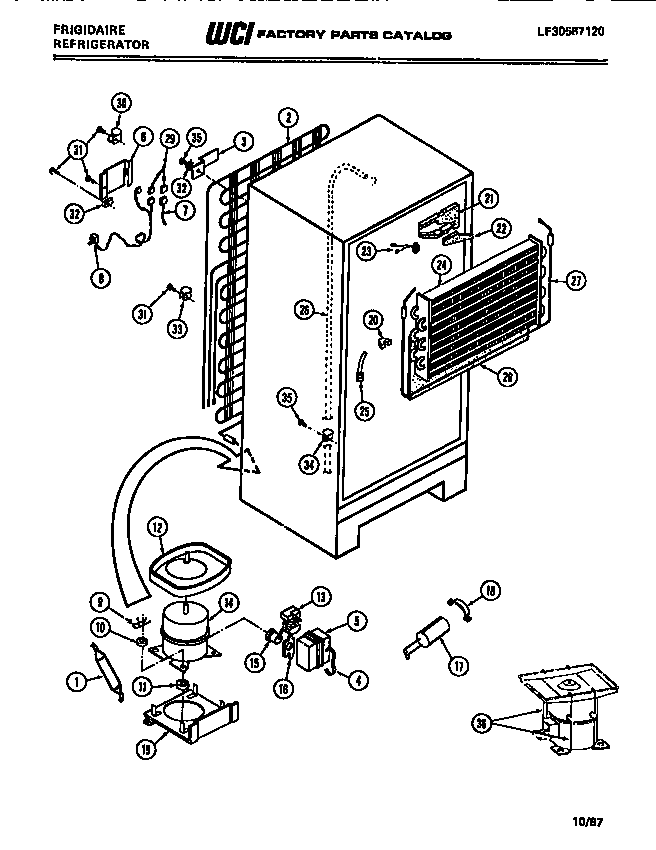

FPI16TEW0 05 – COMPRESSOR, CONDENSER, EVAPORATOR

Products

Position	Product
1	WCI 8000027
2	WCI 8009262
3	BRACKET-CONDENSER MOUNTING (4)
5	WCI 8006982
6	WCI 8013644
7	WCI 8009628
8	WCI 8000064
9	CLIP (4)
10	WASHER (4)
11	WCI 8008778
12	DEFROST PAN-SERVICE COMPRESSOR
13	WCI 8017226
14	WCI 8950233
15	WCI 8017572
16	WCI 8000117
17	WCI 8017536
18	WCI 8017231
19	WCI 8013663
20	WCI 8017227
21	WCI 8013648
22	WCI 8013646
23	WCI 8000073
24	PANEL, INTERIOR FOOD DOOR
25	WCI 8000110
26	WCI 8010274
27	HEATER-DEFROST
28	WCI 8009638
29	WCI 8006993
30	WCI 8000187
31	SCREW-PANEL MOUNTING (56)
32	CLAMP-STRAIN RELIEF (3)
33	CLAMP-CABLE (3)
34	WCI 8003643
35	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
36A	SOUND TAPE-PAN (NON-ILLUSTRATED)
36	WCI 8950024
