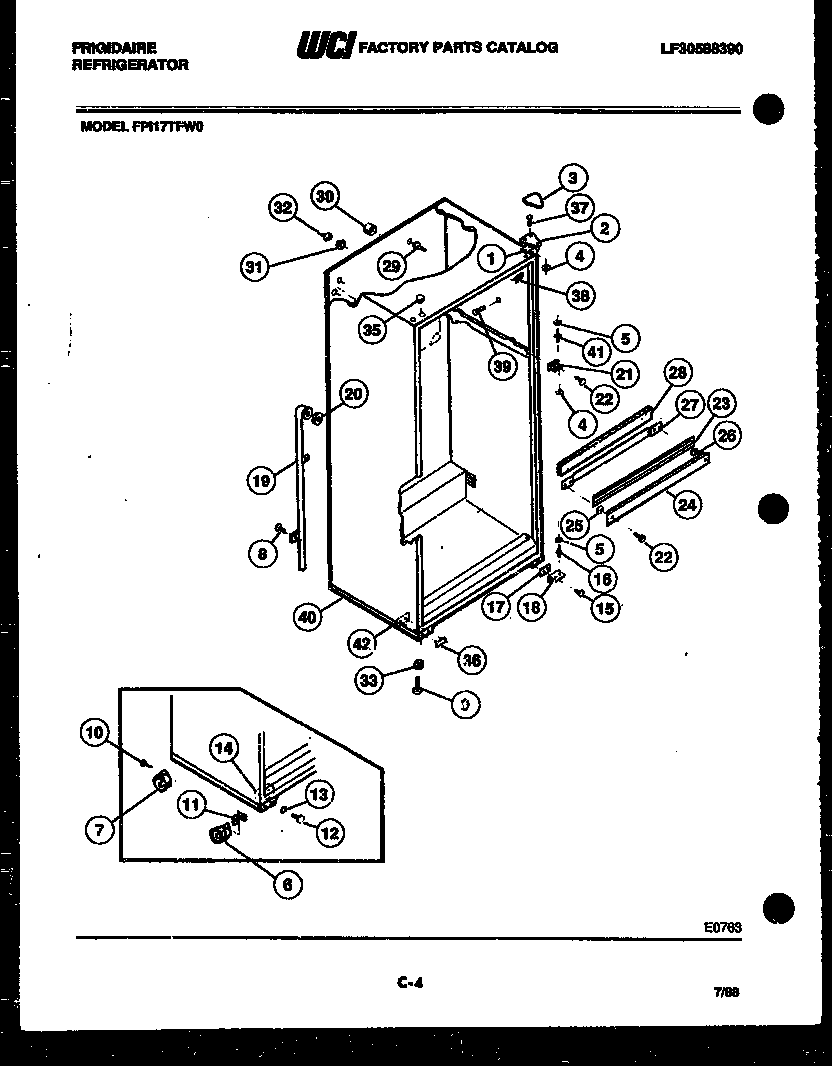

FPI17TFA0 03 – CABINET PARTS

Products

Position	Product
1	WCI 8012829
2	WCI 8012843
3	COVER, HNG, AVOC
4	WASHER-1/4 NYLON (3)
5	WASHER-5/16 NYLON
6	WCI 8009760
7	WCI 8009773
8	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
9	SCREWS LEVELING (4)
10	WCI 8009762
11	WCI 8009790
12	WCI 8009761
13	WCI 8011326
14	WCI 8013678
15	SCREW-HINGE MOUNTING
16	PIN-LOWER HINGE
17	SHIM-LOWER HINGE
18	WCI 8017609
19	WCI 8010012
20	WCI 8009755
21	WCI 8000757
22	SCREW-HINGE/MULLION (4)
23	WCI 8000744
24	MULLION-AVOCADO
25	WCI 8003607
26	WCI 8010007
27	WCI 8003604
28	WCI 8009638
29	WCI 8000097
30	WCI 8000004
31	WCI 8006970
32	WCI 8006971
33	WCI 8003584
35	WCI 8007126
36	WCI 8003585
37	SCREW-HINGE MOUNTING (2)
38	WCI 8010015
39	WCI 8009759
39A	WCI 8002747
40	CABINET BASE
41	WCI 8000184
42	TAPPING PLATE (4)
