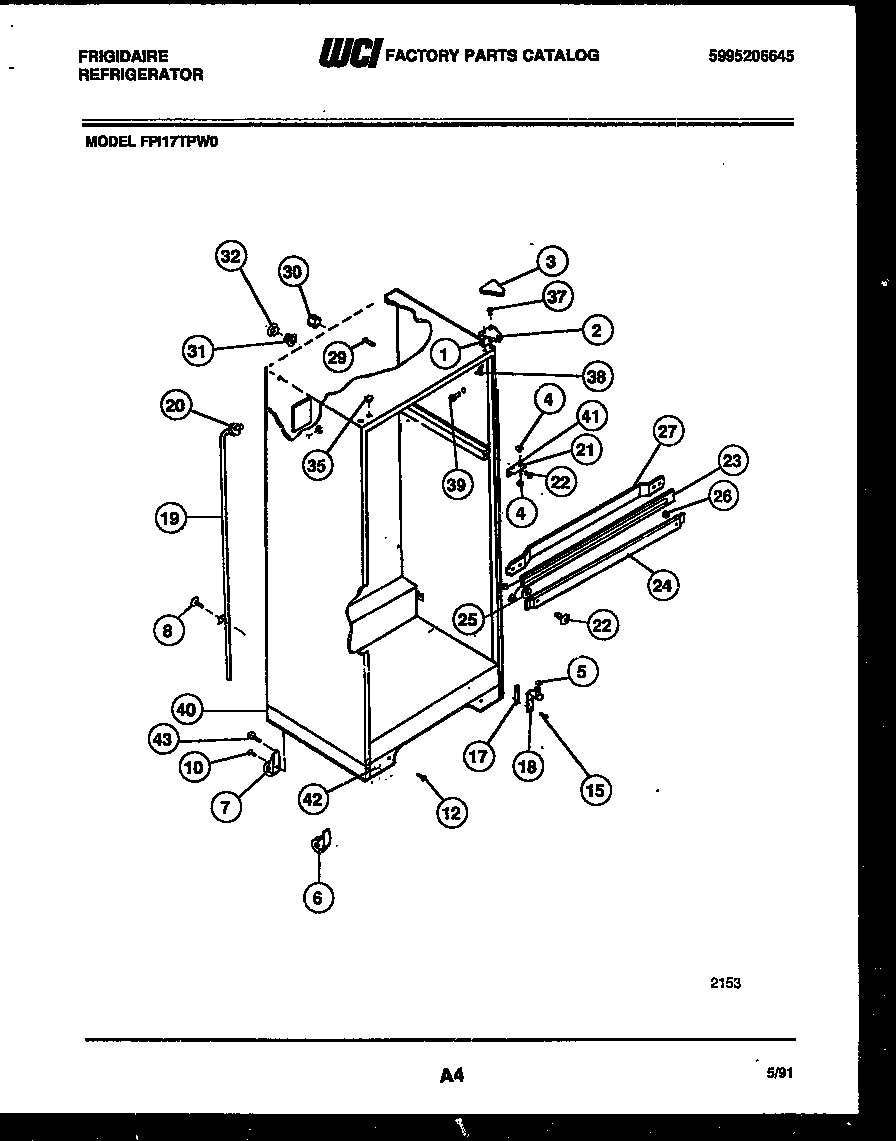

FPI17TPL0 03 – CABINET PARTS

Products

Position	Product
*46211	PLUG, BUTTON, CABINET LINER (NI)
1	SHIM - UPPER HINGE
2	BRACKET-UPPER HINGE
3	COVER-UPPER HINGE, ALMOND
4	WASHER, .34 X .62 X .05, NYLON
5	WCI 5308000186
6	WCI 5303212490
7	WCI 5308009773
10	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
12	BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
17	WCI 5303212488
18C	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
18B	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
18A	241710601 Frigidaire Refrigerator Screw
18	BRACKET-LOWER HINGE, W/ HINGE PIN
19	WCI 5303210377
20	WCI 5303207353
21	BRACKET-CTR HINGE
22	WCI 5308012258
23	WCI 5308017408
24	WCI 3916134
25	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
26	SPACER-MULLION MTG, STEEL
27	WCI 5308003604
29	SUPPORT-COIL COVER
30	TUBE-RUBBER
31	WCI 5303001286
32	WCI 5303001287
35	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
38	TRIM-CABINET CORNER, ALMOND
39A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
39	5304509705 Frigidaire Refrigerator Grommet
40	BASE-CABINET
41	WCI 5308000184
42	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
43	5304455651 Frigidaire Refrigerator Screw
