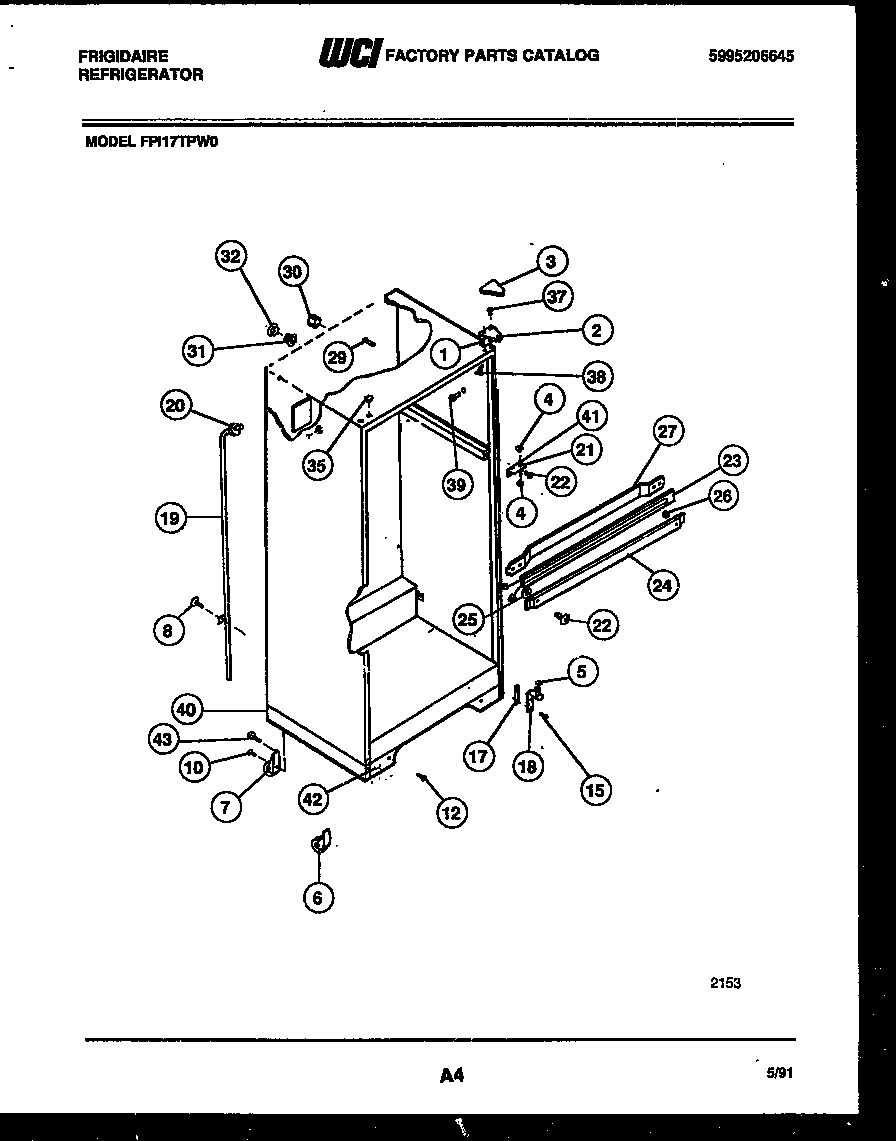

FPI17TPW0 03 – CABINET PARTS

Products

PositionProduct
*46211PLUG, BUTTON, CABINET LINER (NI)
1SHIM – UPPER HINGE
2BRACKET-UPPER HINGE
3COVER-UPPER HINGE, WHITE
4WASHER, .34 X .62 X .05, NYLON
5WCI 5308000186
6WCI 5303212490
7WCI 5308009773
10BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
12BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
17WCI 5303212488
18CTAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
18BTAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
18BRACKET-LOWER HINGE, W/ HINGE PIN
18A241710601 Frigidaire Refrigerator Screw
19WCI 5303210377
20WCI 5303207353
21BRACKET-CTR HINGE
22WCI 5308012258
23WCI 5308017408
24WCI 5303200465
25WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
26SPACER-MULLION MTG, STEEL
27WCI 5308003604
29SUPPORT-COIL COVER
30TUBE-RUBBER
31WCI 5303001286
32WCI 5303001287
35PLUG-BUTTON, WHITE
38TRIM-CABINET CORNER, WHITE
39A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
395304509705 Frigidaire Refrigerator Grommet
40BASE-CABINET
41WCI 5308000184
42TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
435304455651 Frigidaire Refrigerator Screw
