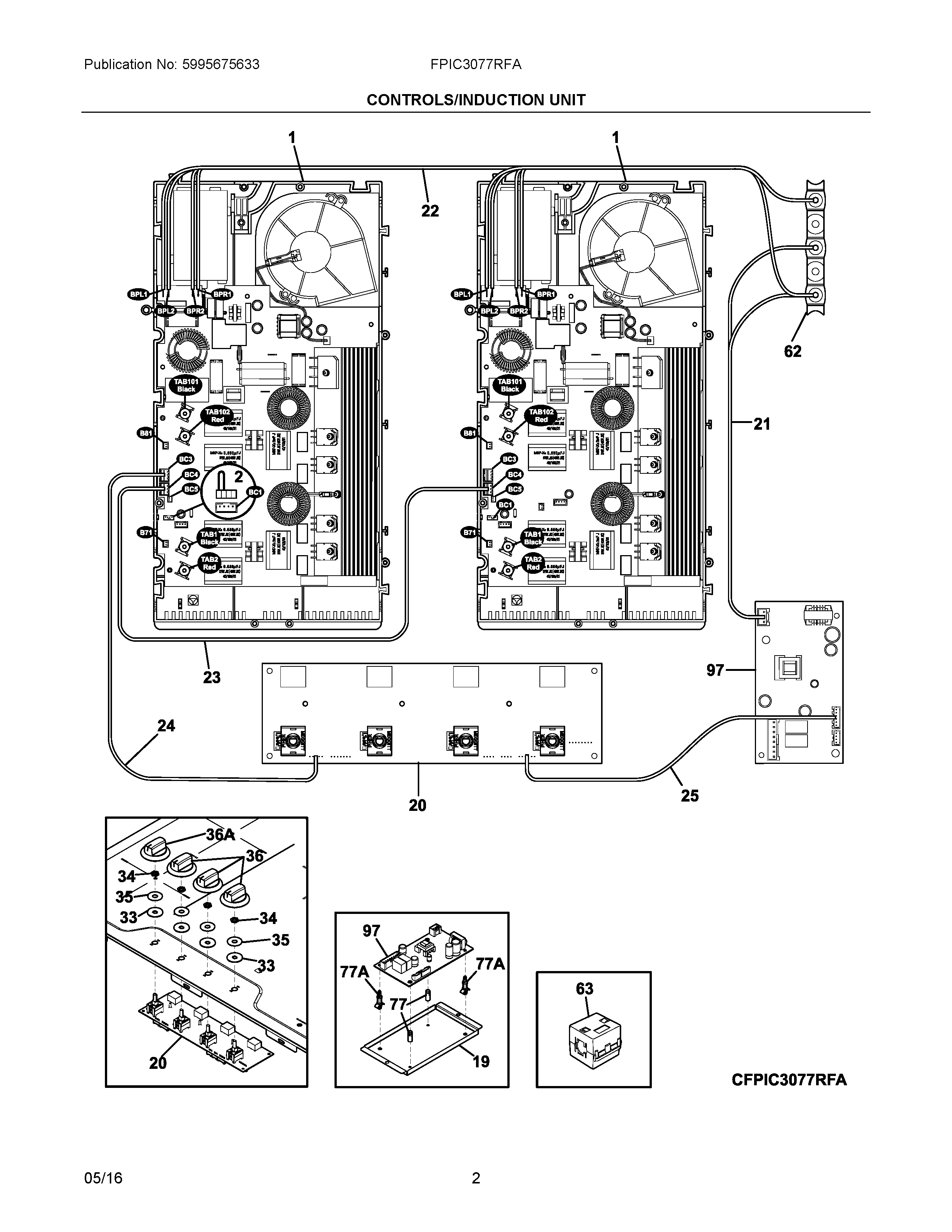

FPIC3077RFA 02 – CONTROLS/INDUCTION UNITadmin2025-04-26T08:36:24+00:00FPIC3077RFA 02 – CONTROLS/INDUCTION UNIT
Products
| Position | Product |
|---|
| NI | 202855101 Frigidaire Holder |
| NI | SCREW, ST, 4.2 : 12, (9) |
| NI | 330447900 Frigidaire Oven Screw |
| NIA | NUT, TERMINAL BLOCK, (2) |
| NIA | SCREW, M4 |
| NIB | 305452800 Frigidaire Screw |
| NI | WCI 5304506077 |
| 1 | 357266088 Frigidaire Generator Circuit Board |
| 2 | 5304506068 Frigidaire Wire |
| 19 | BOX, PROTECTION, SMPS1 |
| 20 | 808843402 Frigidaire PCB Assembly |
| 21 | HARNESS |
| 22 | 5304522463 Frigidaire Harness |
| 23 | 318578332 Frigidaire Oven Harness |
| 24 | 5304506072 Frigidaire Harness |
| 25 | 5304506073 Frigidaire Harness |
| 33 | 318146012 Frigidaire Oven Bushing |
| 34 | 316247700 Frigidaire Oven Nut |
| 35 | 318086007 Frigidaire Washer Assembly |
| 36A | KNOB, CONTROL, DUAL |
| 36 | 5304506074 Frigidaire Knob |
| 62 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 63 | 5304506076 Frigidaire Filter |
| 77A | 316114100 Frigidaire Oven Spacer |
| 77 | 316247900 Frigidaire Oven Spacer |
| 97 | 808844401 Frigidaire Board Assembly |
