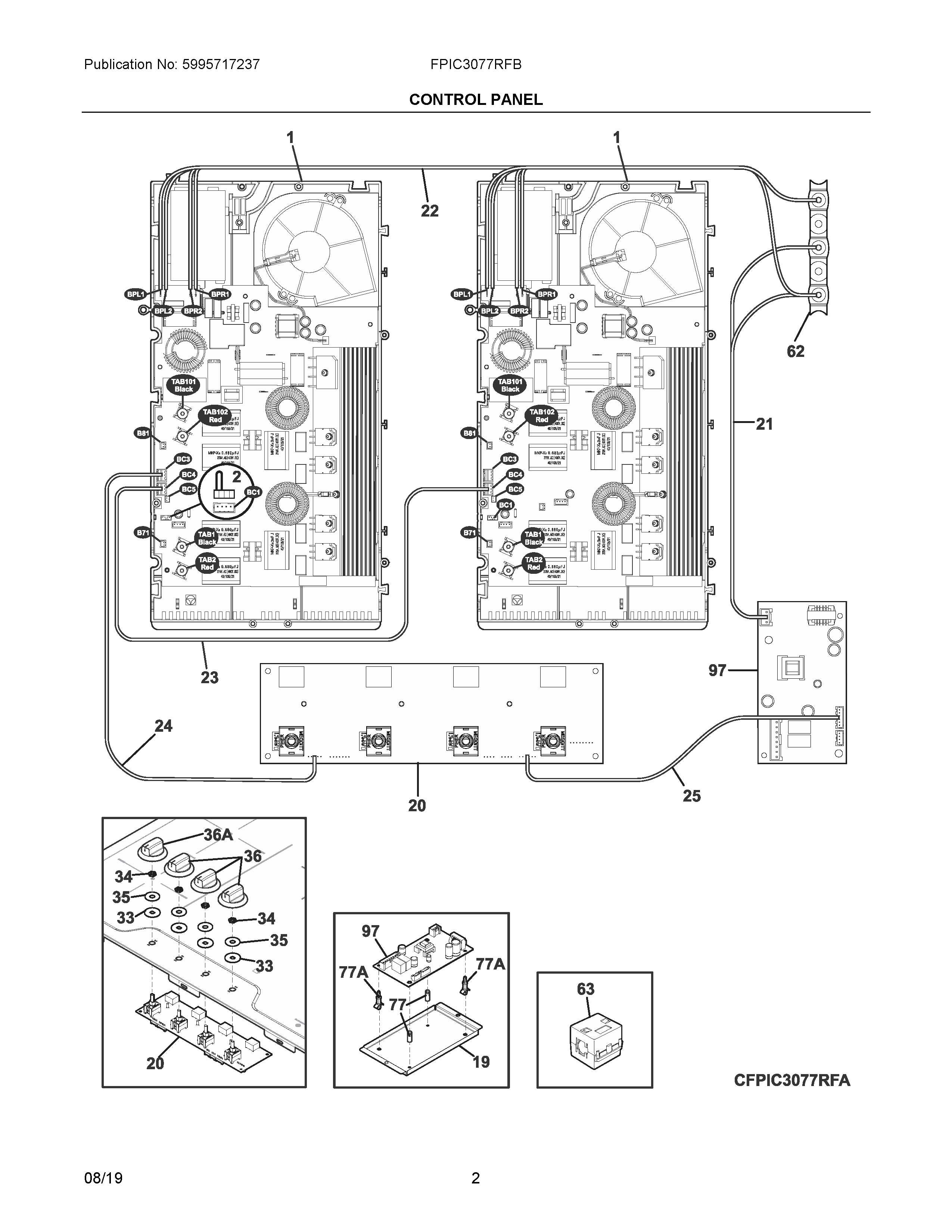

FPIC3077RFB 02 – CONTROL PANEL

Products

Position	Product
NI	202855101 Frigidaire Holder
NI	SCREW, ST, 4.2 : 12, (9)
NI	330447900 Frigidaire Oven Screw
NIA	NUT, TERMINAL BLOCK, (2)
NIA	SCREW, M4
NIB	305452800 Frigidaire Screw
NI	WCI 5304522491
1	357266088 Frigidaire Generator Circuit Board
2	5304506068 Frigidaire Wire
19	BOX, PROTECTION, SMPS1
20	808843402 Frigidaire PCB Assembly
21	HARNESS
22	5304522463 Frigidaire Harness
23	318578332 Frigidaire Oven Harness
24	5304506072 Frigidaire Harness
25	5304506073 Frigidaire Harness
33	318146012 Frigidaire Oven Bushing
34	316247700 Frigidaire Oven Nut
35	318086007 Frigidaire Washer Assembly
36A	KNOB, CONTROL, DUAL
36	5304506074 Frigidaire Knob
62	5304409888 Frigidaire Oven Terminal Block with Hardware
63	5304506076 Frigidaire Filter
77A	316114100 Frigidaire Oven Spacer
77	316247900 Frigidaire Oven Spacer
97	808844401 Frigidaire Board Assembly
