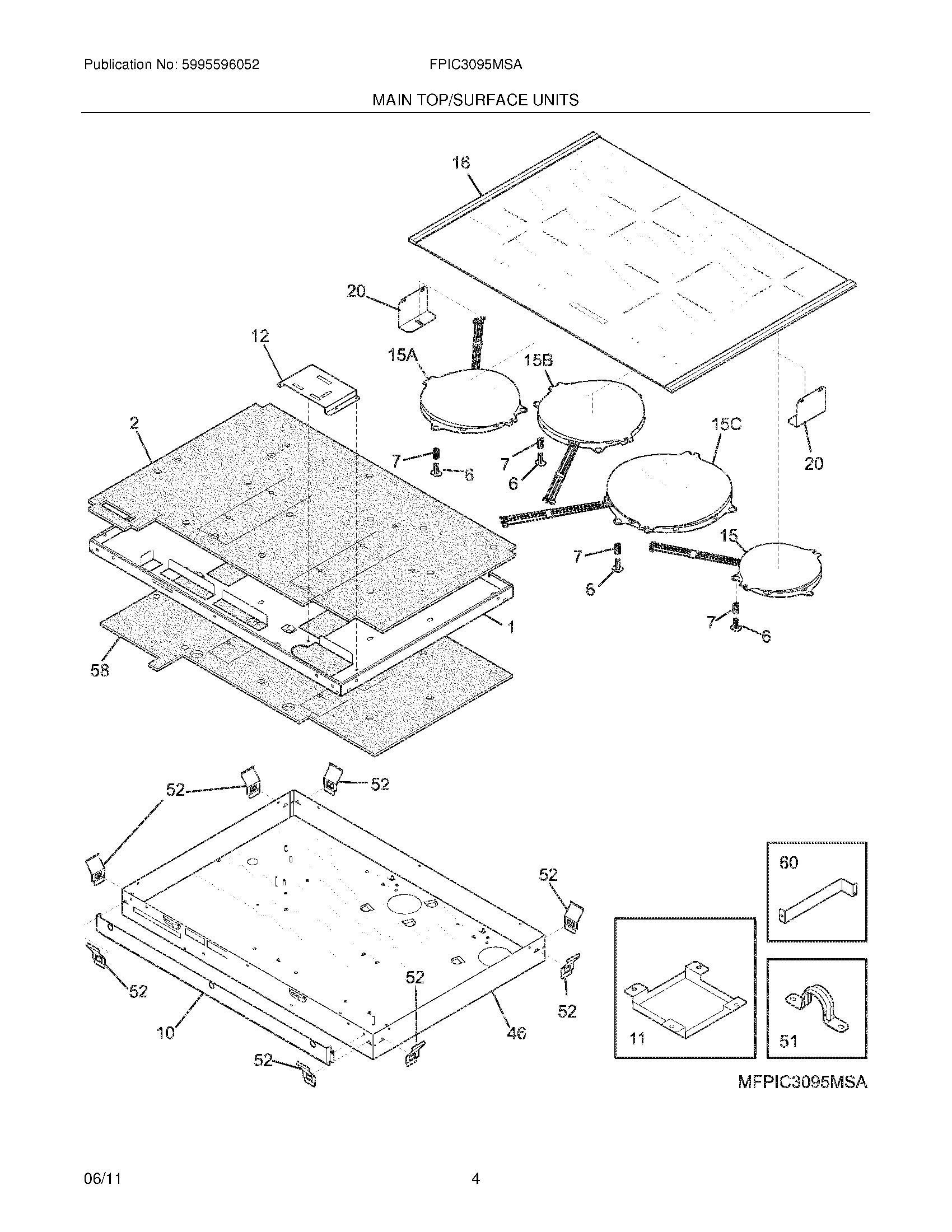

FPIC3095MSA 05 – MAINTOP/SURFACE UNITS

Products

Position	Product
NI	SCREW,TRUSS HEAD,8-18 X 0.375
NI	73218-3010 Frigidaire Foam Tape
NI	5304424462 Frigidaire Foam Tape
NI	5304462994 Frigidaire Oven Screw
NI	5305511218 Frigidaire Ceramabryte C12 18O
NI	WCI 318163602
NI	5303307980 Frigidaire Oven Screw
NI	SCREW, 8 X 5/8, SPARK MODULE
1	PANEL, MOUNTING
2	INSULATION, CARRIER PANEL
6	318405000 Frigidaire Oven Pin
7	318534300 Frigidaire Spring
10	WCI 318534000
11	DEFLECTOR, AIR
12	SHIELD, EMI
15C	318329244 Frigidaire Oven Element
15B	318329243 Frigidaire Oven Heating Element
15	318329241 Frigidaire Oven Element
15A	318329242 Frigidaire Oven Element
16	318935220 Frigidaire Black Maintop Glass Assembly
20	WCI 318121915
46	BOX, BURNER
51	318389600 Frigidaire Bracket Assembly
52	318560900 Frigidaire Oven Spacer
58	INSULATION, SERVICE PANEL
60	BOX, PLENUM, LOWER
