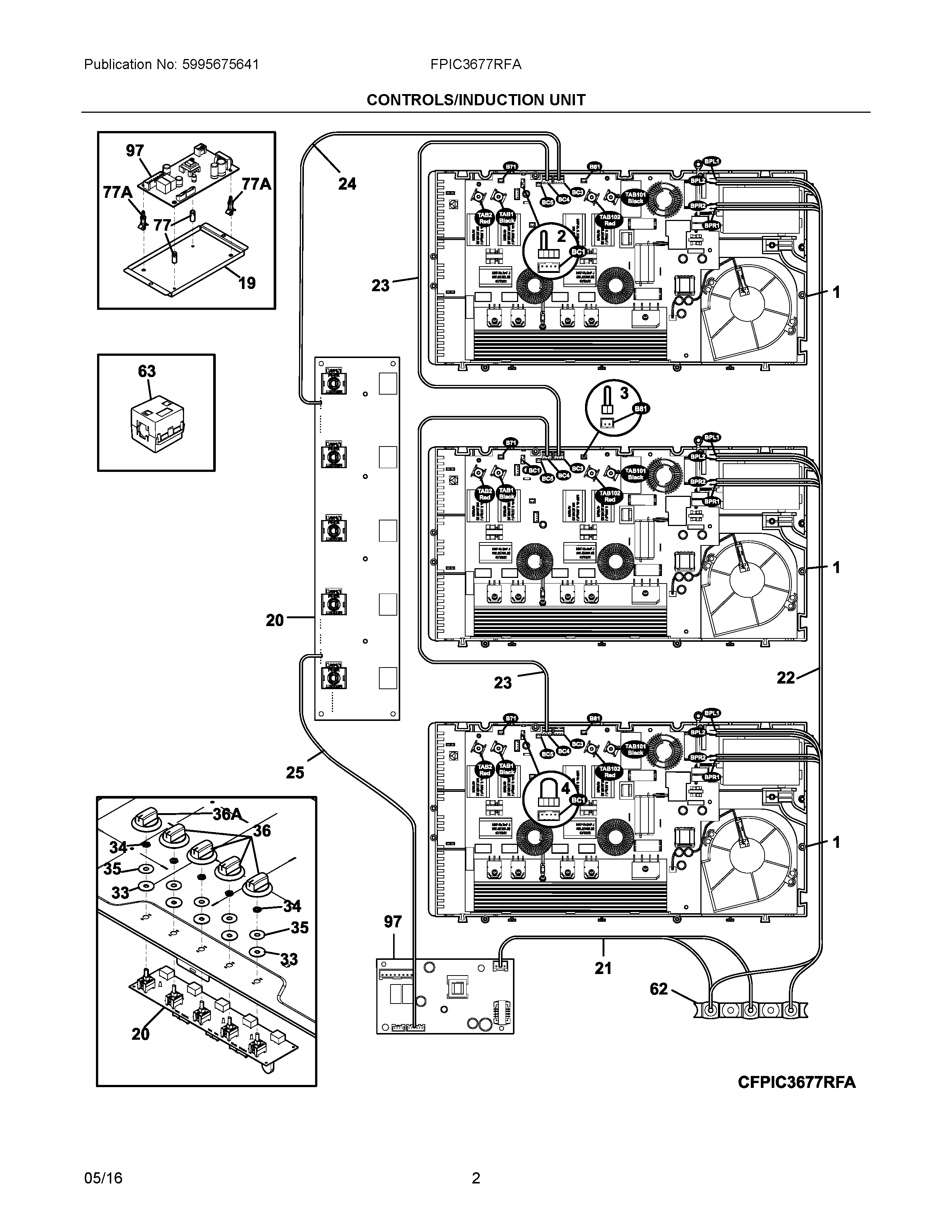

FPIC3677RFA 02 – CONTROLS/INDUCTION UNIT

FPIC3677RFA 02 – CONTROLS/INDUCTION UNIT

Written by

in

FPIC3677RFA 02 – CONTROLS/INDUCTION UNIT

Products

PositionProduct
NIWCI 5304506104
NISCREW, ST, 4.2 : 12, (9)
NI330447900 Frigidaire Oven Screw
NIANUT, TERMINAL BLOCK, (2)
NIASCREW, M4
NI202855101 Frigidaire Holder
NIB305452800 Frigidaire Screw
1357266088 Frigidaire Generator Circuit Board
25304506068 Frigidaire Wire
3387540300 Frigidaire Bridging Plug
4318578302 Frigidaire Wire
19BOX, PROTECTION, SMPS1
20808844002 Frigidaire Board Assembly
21HARNESS
225304522492 Frigidaire Harness
23318578332 Frigidaire Oven Harness
245304506103 Frigidaire Oven Harness
255304506102 Frigidaire Oven Harness
33318146012 Frigidaire Oven Bushing
34316247700 Frigidaire Oven Nut
35318086007 Frigidaire Washer Assembly
365304506074 Frigidaire Knob
36AKNOB, CONTROL, DUAL
625304409888 Frigidaire Oven Terminal Block with Hardware
635304506076 Frigidaire Filter
77A316114100 Frigidaire Oven Spacer
77316247900 Frigidaire Oven Spacer
97808844401 Frigidaire Board Assembly
