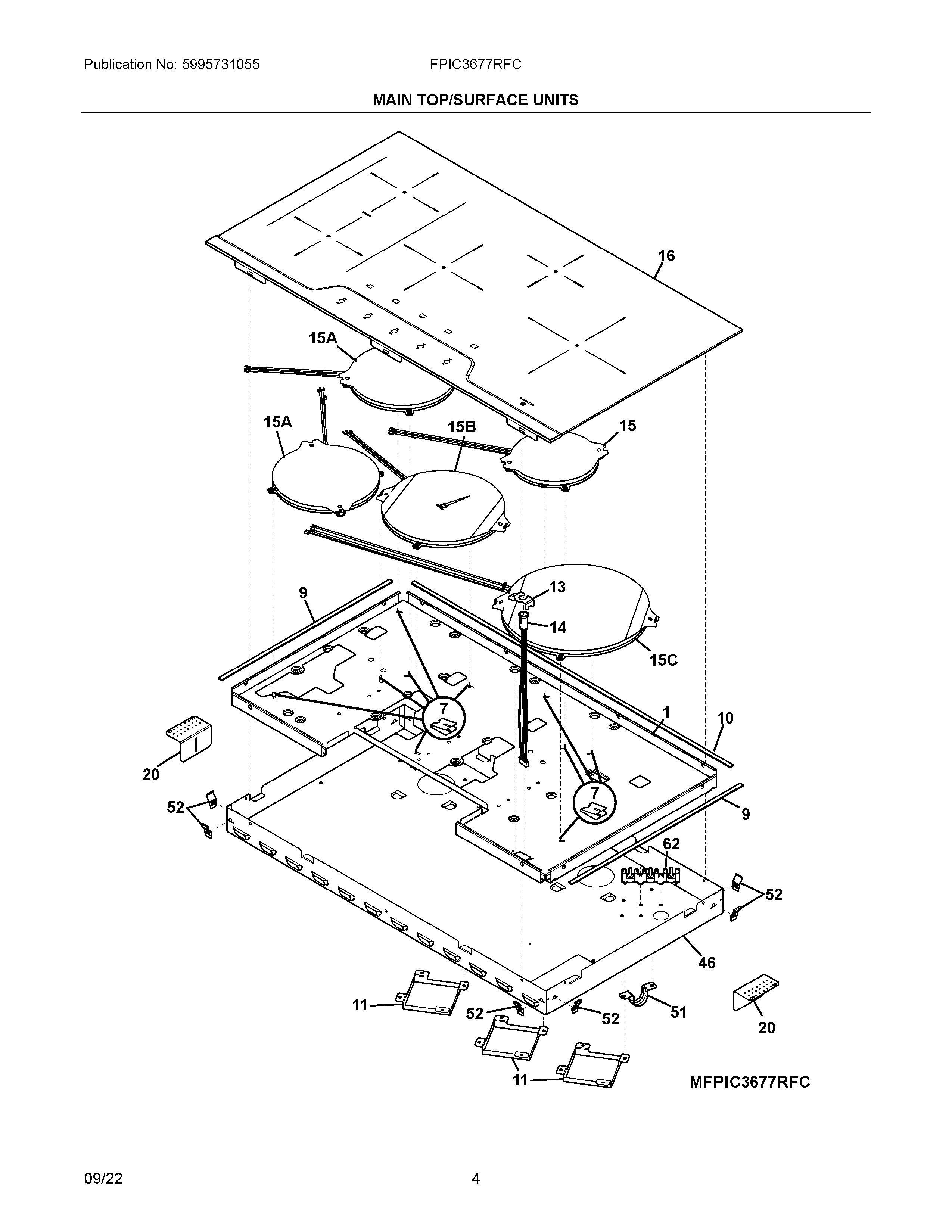

FPIC3677RFC 03 – MAIN TOP/SURFACE UNITS

FPIC3677RFC 03 – MAIN TOP/SURFACE UNITS

Written by

in

FPIC3677RFC 03 – MAIN TOP/SURFACE UNITS

Products

PositionProduct
NIASCREW, 8 X 5/8, SPARK MODULE
NIBNUT, TERMINAL BLOCK, (2)
NIASCREW, M4
NIC305452800 Frigidaire Screw
NI5304462994 Frigidaire Oven Screw
NIB5303307980 Frigidaire Oven Screw
15304506099 Frigidaire Carrier Panel
7808697402 Frigidaire Spring
9TAPE, MAINTOP, SIDES
105304531772 Frigidaire Tape
115304506079 Frigidaire Deflector
13BRACKET, INDICATOR LIGHT
145304506081 Frigidaire Light Bulb
15357226265 Frigidaire Element
15C5304506100 Frigidaire Oven Element
15B357227569 Frigidaire Oven Element
15A357226364 Frigidaire Oven Element
16305638971 Frigidaire Oven Maintop
20BRACKET
46BOX, PROTECTION, 36"
51318389600 Frigidaire Bracket Assembly
52387174602 Frigidaire Oven Bracket
625304409888 Frigidaire Oven Terminal Block with Hardware
