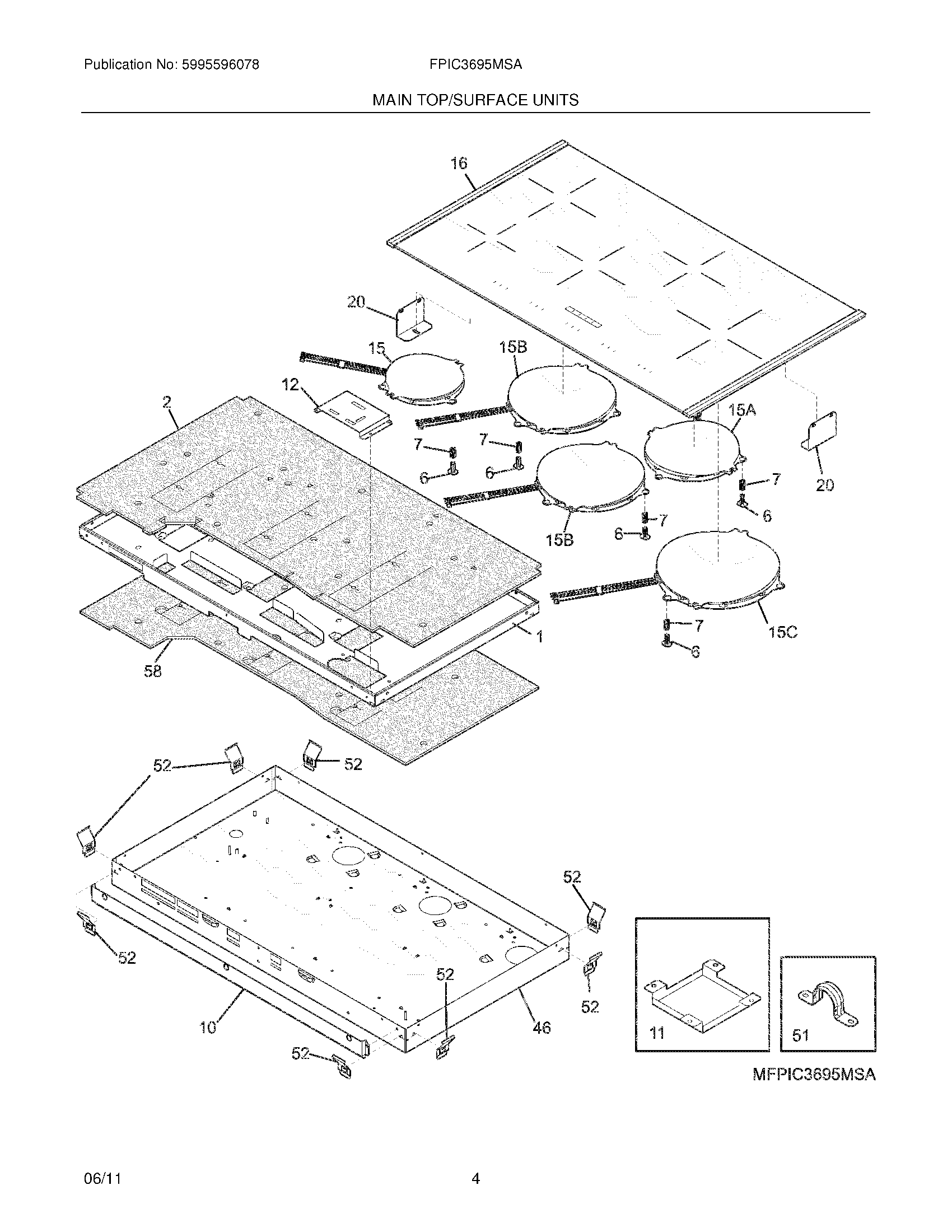

FPIC3695MSA 05 – MAINTOP/SURFACE UNITSadmin2025-04-26T08:35:34+00:00FPIC3695MSA 05 – MAINTOP/SURFACE UNITS
Products
| Position | Product |
|---|
| NI | SCREW,TRUSS HEAD,8-18 X 0.375 |
| NI | 73218-3010 Frigidaire Foam Tape |
| NI | 5304424462 Frigidaire Foam Tape |
| NI | NUT, KEPS, 8-32, (2) |
| NI | 5304462994 Frigidaire Oven Screw |
| NI | 5305511218 Frigidaire Ceramabryte C12 18O |
| NI | WCI 318163602 |
| NI | 5303307980 Frigidaire Oven Screw |
| NI | SCREW, 8 X 5/8, SPARK MODULE |
| 1 | PANEL, MOUNTING |
| 2 | INSULATION, CARRIER PANEL |
| 6 | 318405000 Frigidaire Oven Pin |
| 7 | 318534300 Frigidaire Spring |
| 10 | DEFLECTOR, OUTER |
| 11 | DEFLECTOR, AIR |
| 12 | SHIELD, EMI |
| 15 | 318329241 Frigidaire Oven Element |
| 15C | 318329244 Frigidaire Oven Element |
| 15A | 318329242 Frigidaire Oven Element |
| 15B | 318329243 Frigidaire Oven Heating Element |
| 16 | 318935221 Frigidaire Assembly Main Top |
| 20 | WCI 318121915 |
| 46 | WCI 318225458 |
| 51 | 318389600 Frigidaire Bracket Assembly |
| 52 | 318560900 Frigidaire Oven Spacer |
| 58 | INSULATION, SERVICE PANEL |
