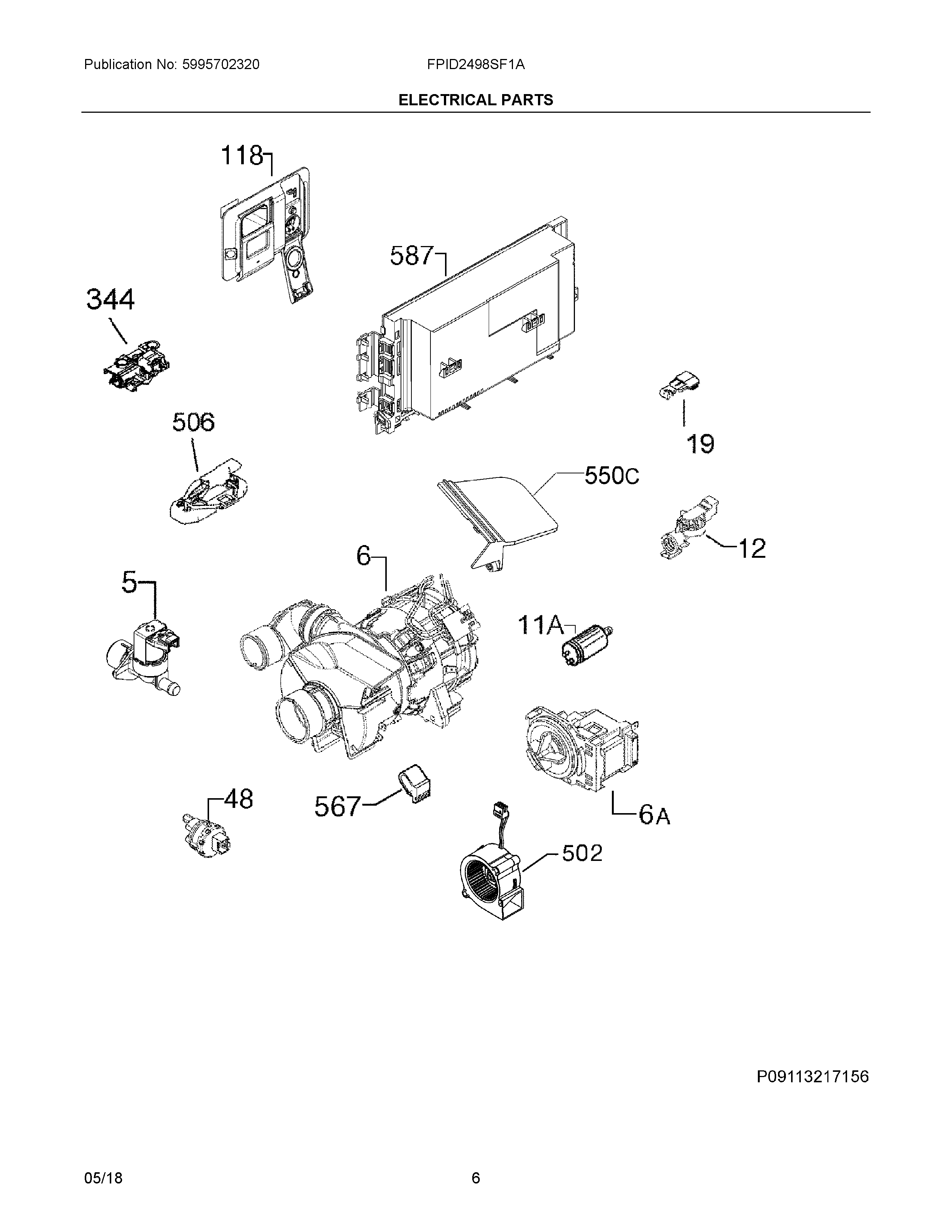

FPID2498SF1A 04 – ELECTRICAL PARTS

Products

Position	Product
NI	A05193103 Frigidaire Dishwasher Harness
NI	807556302 Frigidaire Dishwasher Harness
NI	A02719801 Frigidaire Dishwasher Harness
NI	A00233431 Frigidaire Dishwasher Harness
5	807445905 Frigidaire Dishwasher Valve
6A	A00044305 Frigidaire Dishwasher Drain Pump
6	5304514365 Frigidaire Dishwasher Water Pump
11A	A00194401 Frigidaire Dishwasher Capacitor
12	A00055408 Frigidaire Dishwasher Switch
19	A00666007 Frigidaire Lamp
48	A00040106 Frigidaire Dishwasher Sensor
118	A00130341 Frigidaire Dishwasher Dispenser Assembly
344	111315040 Frigidaire Dishwasher Door Lock
502	A05660402 Frigidaire Dishwasher Assembly-Blower
506	A00056506 Frigidaire Switch Assembly
550C	808089001 Frigidaire Dishwasher Cover
567	117193401 Frigidaire Dishwasher Buffer
587	5304531894 Frigidaire Control Assembly
