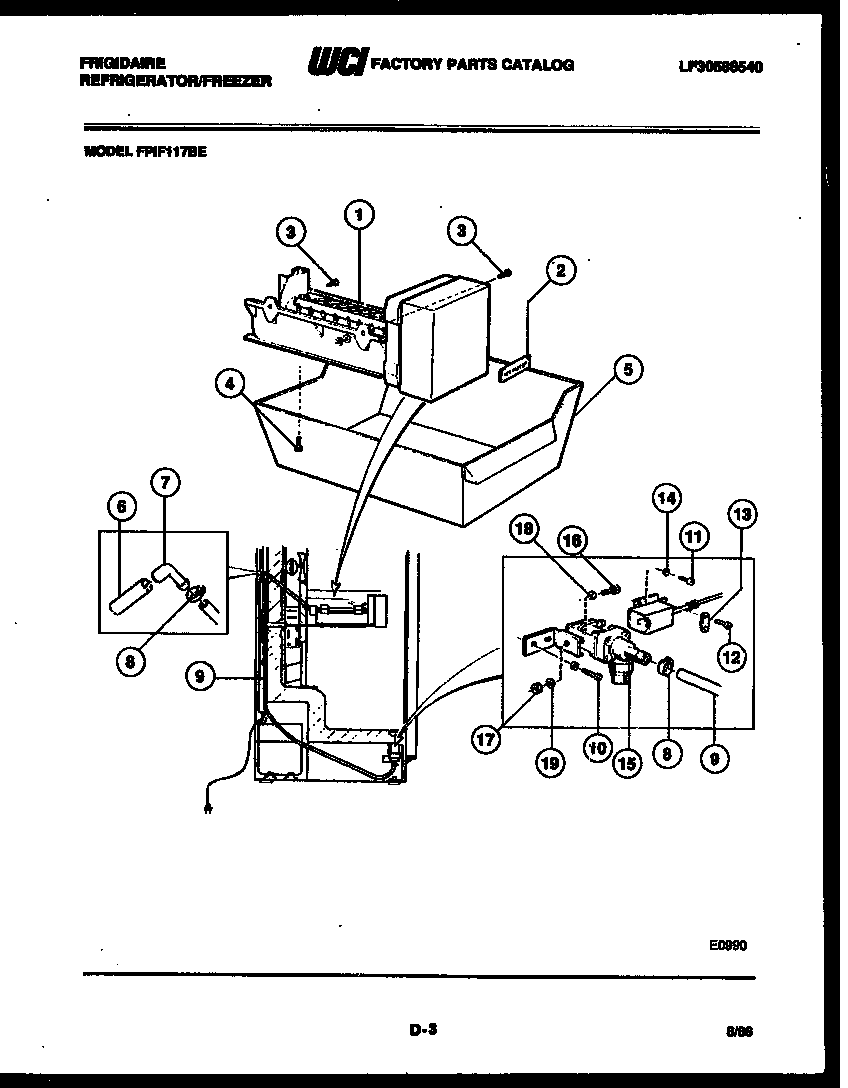

FPIF117BE 05 – ICE MAKER AND INSTALLATION PARTS

Written by

Products

Position	Product
1	WCI 3015894
2	NAMEPLATE
3	WCI 3015559
4	SCREW
5	5303212918 Frigidaire Refrigerator Cont
6	WCI 3015895
7	WCI 3015564
8	WCI 3015565
9	WCI 3015896
10	SCREW
11	WCI 3015923
12	SCREW
13	WCI 3015569
14	WASHER
15	WCI 3015571
16	SCREW
17	NUT
18	WASHER
19	SPRING WASHER
