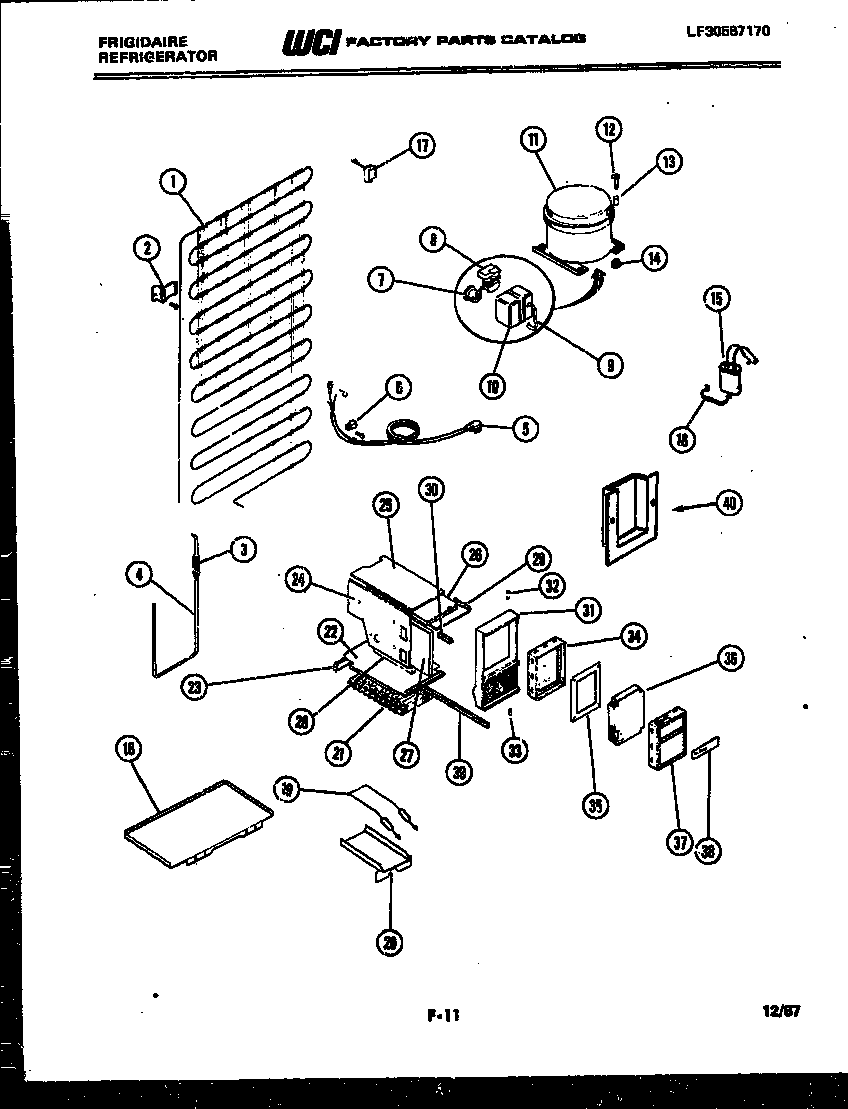

FPIM18MF4 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	WCI 3007561
2	BRACKET-CONDENSER MOUNTING (4)
2A	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
3	WCI 8000027
4	LINE-SUCTION AND CAP TUBE
5	WCI 8000064
6	CLAMP-CABLE (3)
7A	CLIP-OVERLOAD
7	WCI 3015179
7	WCI 8017572
8	WCI 8017226
8	WCI 3015178
9	WCI 8000117
10	WCI 8006982
11	WCI 3916007
11	WCI 3916008
12	WCI 8000029
13	WCI 8002758
14	WCI 8008778
15	WCI 3001650
16	WCI 8017231
17	WCI 8000805
18	CONDENSER-CONDENSATE
19A	WCI 8000110
19	WCI 3007377
20	WCI 3007378
21	WCI 3015180
21A	INSULATION
21	WCI 8008773
22	BOTTOM
22A	24
23	INSULATION
24	HOUSING-SIDE
25	HOUSING-TOP
26	INSULATION
27	INSULATION
28A	INSULATION
28	INSULATION
29	HOUSING
30	MAGNET
31	WCI 8008762
31A	INSULATION
32	PIN
33	PIN
34	PANEL-INTERIOR
35	SEAL
36	INSULATION
37	DOOR
38	LABEL
39C	PLUG BUTTON
39B	PLUG BUTTON
39A	WCI 8008760
39	WCI 8008759
40A	HARNESS COMPRESSOR AND LIGHT SWITCH
40B	INSULATOR
40	WCI 8013644
