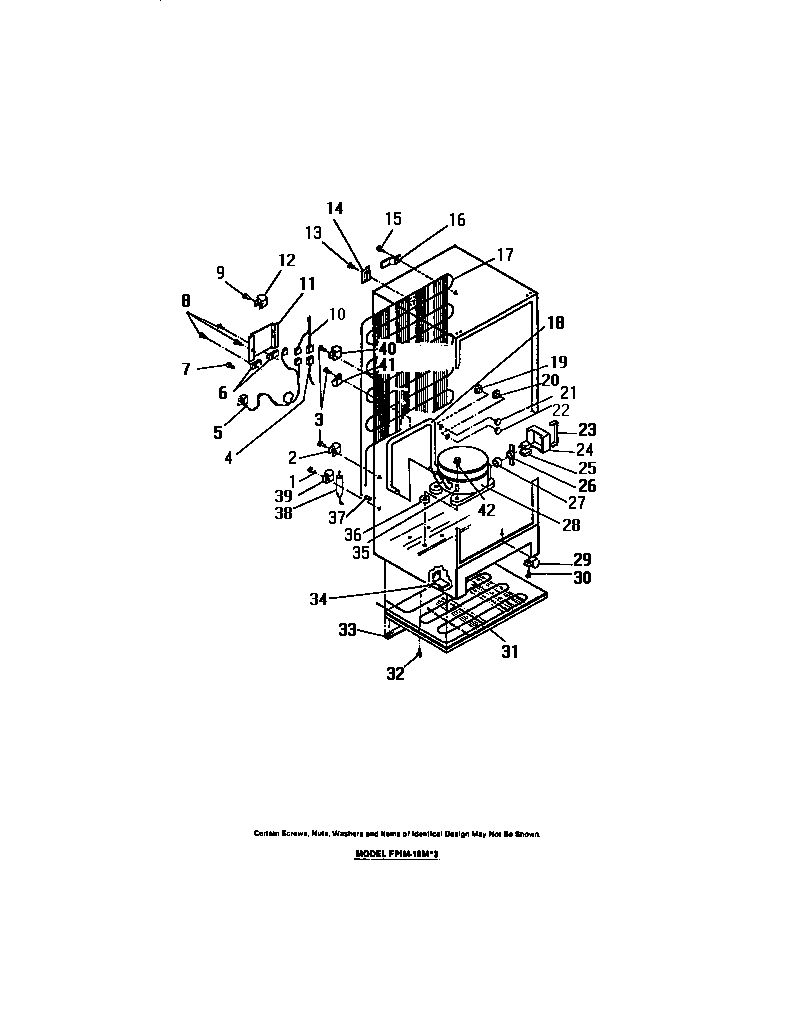

FPIM18ML3 05 – COMPRESSOR, CONDENSER

Products

Position	Product
*73046	OVERLOAD PROTECTOR (ML064 COMPRESSOR)
*73048	START RELAY (ML064 COMPRESSOR)
*73042	WCI 8000117
*73040	WCI 8000115
*73044	WCI 8000116
1	SCREW (3)
4	HARNESS COMPRESSOR AND LIGHT SWITCH
5	WCI 8000064
6	CLAMP-STRAIN RELIEF (3)
7	WCI 8000206
10	HARNESS
11	WCI 8013644
12	WCI 8000187
13	WCI 8000096
14	WCI 8000038
16	BRACKET-CONDENSER MOUNTING (4)
17	WCI 8008779
18	LINE-SUCTION AND CAP TUBE
19	WCI 8000014
20	WCI 8000040
21	PLUG BUTTON
22	PLUG BUTTON
23	WCI 8007439
24	WCI 8007438
25	RELAY
26	WCI 8007437
27	PROTECTOR-OVERLOAD
28	WCI 8950037
29	CLAMP
30	SCREW-PANEL MOUNTING (56)
31	CONDENSER-CONDENSATE
32	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
33	WCI 8000185
34	WCI 8000099
35	WCI 8002758
36	WCI 8008778
37	WCI 8003645
38	WCI 8000027
39	WCI 8008782
40	CLAMP-CABLE (3)
41	WCI 8000132
