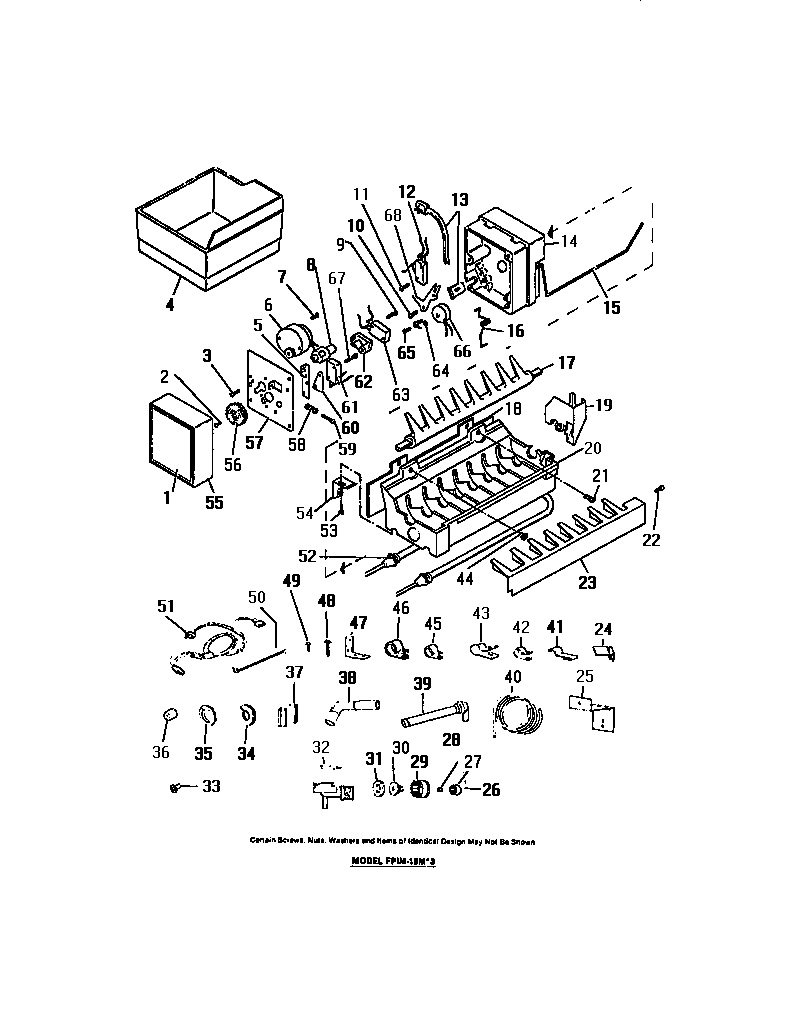

FPIM18ML3 06 – IK-1J AUTOMATICE ICE MAKER

Products

Position	Product
1	WCI 8005251
2	WCI 8001182
3	SCREW (3)
4	CONTAINER-ICE
5	PLATE-VALVE SW.
6	WCI 8001244
7	WCI 8001156
8	WCI 8001247
9	WCI 8001148
10	WCI 8001255
11	SCREW 4-24 X 3/4
13	WCI 8014553
14	WCI 8001235
15	ARM-SHUT OFF
16	SPRING-SHUT OFF
17	WCI 8001253
18	WCI 8000236
19	BEARING & INLET
20	WCI 8001254
21	WCI 8005288
23	STRIPPER-ICE
24	WCI 8000201
25	BRACKET-WATER VALVE
26	WCI 8000205
27	WCI 114627
28	WCI 114628
29	WCI 1121985
30	WCI 1121980
31	WCI 8001143
33	WCI 8010335
34	WCI 8000241
35	WCI 8000240
36	NUT 7/16-20 NYLON
37	PLUG-ADAPTER
38	TUBE-FILLER
39	TUBE-INLET
40	WCI 8010366
41	CLIP-TUBE
42	WCI 8000250
43	WCI 8009561
44	EYELET (2)
45	WCI 8000221
46	WCI 8000133
47	CLAMP-CABLE (3)
48	WCI 8002728
49	SCREW-BRACKET MOUNTING (4) (NON-ILLUSTRATED)
50	SEALING STRIP-BULK
51	WCI 8950138
52	WCI 8001243
53	SCREW
54	WCI 8001246
55	WCI 8000214
56	WCI 8001248
57	WCI 8001239
58	WCI 8001251
60	WCI 8001241
62	SPACER-HOLD. SW.
63	SWITCH-SHUT OFF
64	WCI 8001236
65	SCREW 8-32 X 1
66	WCI 8001250
