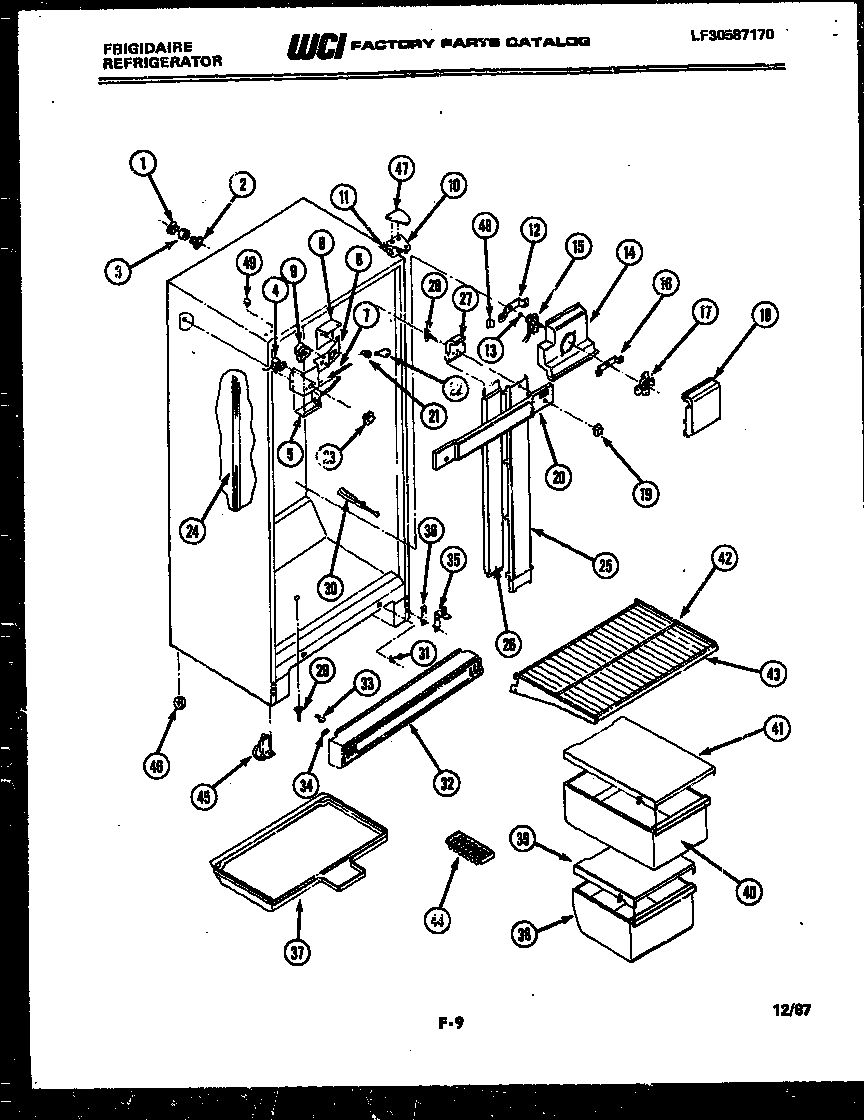

FPIM18ML4 03 – CABINET PARTS

Products

Position	Product
1	WCI 8006970
2	WCI 8006971
3	WCI 8000004
4B	SCREW-CONTROL MOUNTING (2) (NON-ILLUSTRATED)
4A	HARNESS
4	THERMOSTAT
5	COVER
6A	INSULATOR
6	BRACKET-CONTROLS
7	WELL
8	REFLECTOR
9B	WCI 8000008
9A	WCI 8003581
9	215846604 Frigidaire Refrigerator Defrost Timer
10	WCI 8012843
10B	WCI 8002738
10A	SCREW-HINGE MOUNTING (2)
11	WCI 8012829
12	WCI 8000042
13	WCI 8000032
14	HOUSING
15	WCI 8000036
16	WCI 8000043
17	WCI 8000010
18	COVER
19	KNOB
20A	LABEL
20B	LABEL
20	SHIELD-LIGHT
21	WCI 8000815
22	WCI 8000801
23	KNOB
24	WCI 8002744
24A	WCI 8002728
25	DUCT-AIR
26	INSULATION
27	INSULATION
28A	NUT
28	DAMPER
29	TUBE-DRAIN
30A	WCI 8003665
30	DAMPER
31	WCI 8000729
32	APRON
33	WCI 8000091
34	WCI 8000168
35B	SCREW-MTG (2) (NON-ILLUSTRATED)
35A	WASHER-1/4 NYLON (3)
35C	WCI 8000011
35	WCI 8000059
36A	WCI 8000013
36B	WCI 8000001
36	WCI 8000088
37	PAN
38	TRAY-MEATS
39	WCI 8017221
40	WCI 8009626
41	WCI 8017220
42	SHELF (4)
43	TRIM (4)
44	ICE CUBE TRAY (2)
45A	WCI 8017044
45	WCI 8000118
46B	WCI 8000067
46A	WCI 8000266
46	WCI 8000265
47	COVER, HNG, ALMD
48A	SCREW-PANEL MOUNTING (56)
48	WCI 8000107
49	WCI 8007129
49A	PLUG-REFRIGERATOR LINER (2)
49B	WCI 8016571
49C	PLATE-TAPPING (2)
