FPIM18MW4 02 – DOOR PARTS – Aparts

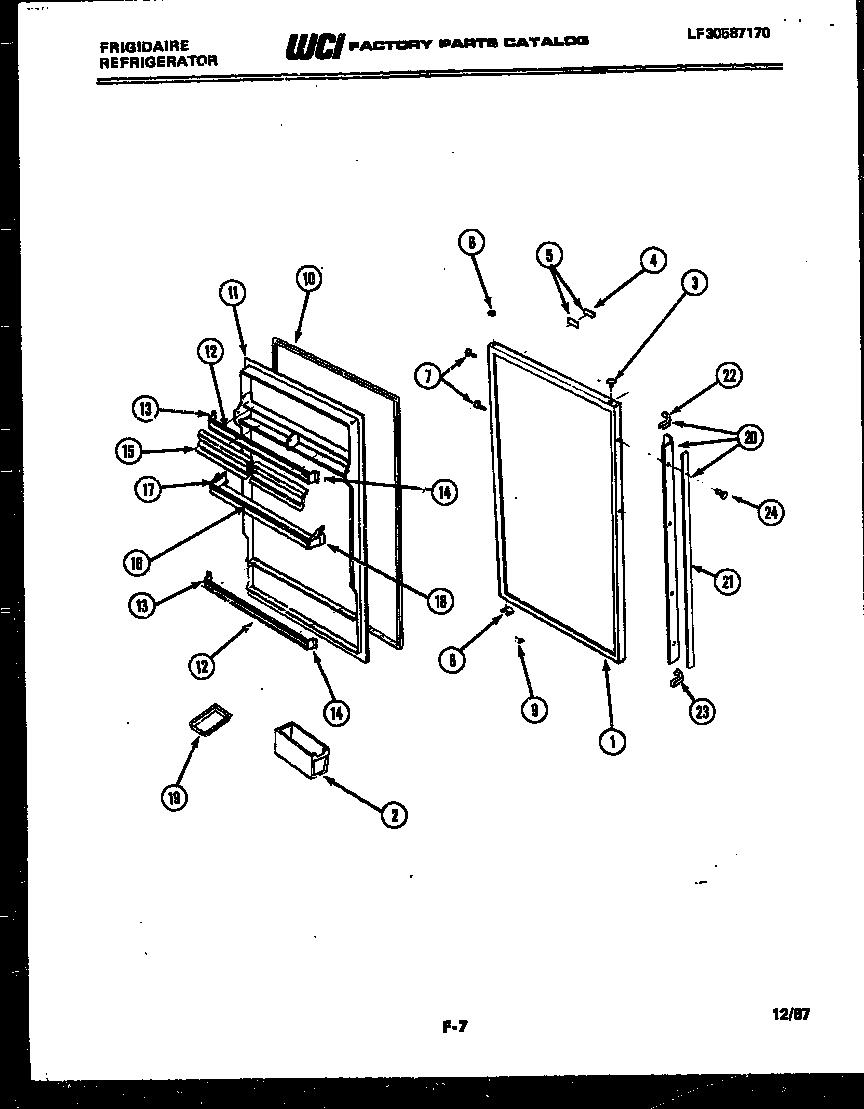

FPIM18MW4 02 – DOOR PARTS

Products

Position	Product
1	OUTER PANEL-WHTE
2	CONTAINER-EGG
3	PLUG-HINGE, WHITE
4	WCI 8011327
5	WCI 8009843
6	HINGE BEARING (8)
7	PLUG-HANDLE, WHITE
8A	WCI 8011745
8	WCI 8000255
9	WCI 8000790
10	WCI 3007357
11A	SCREW-PANEL MOUNTING (56)
11	PANEL INTERIOR FOOD DOOR
12	FRONT-SHELF (3)
13	INSERT-SHELF FRONT L.H. (3)
14	INSERT-SHELF FRONT R.H. (3)
15	WCI 8009600
15A	DOOR-SPREADS
16	FRONT-SHELF (2)
17	INSERT-SHELF FRONT L.H. (2)
18A	WCI 8000812
18B	WCI 8002773
18	INSERT-SHELF FRONT R.H. (2)
19	WCI 8009664
20	HANDLE-FOOD DOOR
21	WCI 8010237
22	END CAP-BOTTOM (2)
23	END CAP-TOP (2)
24	SCREW-HANDLE MOUNTING (4)
