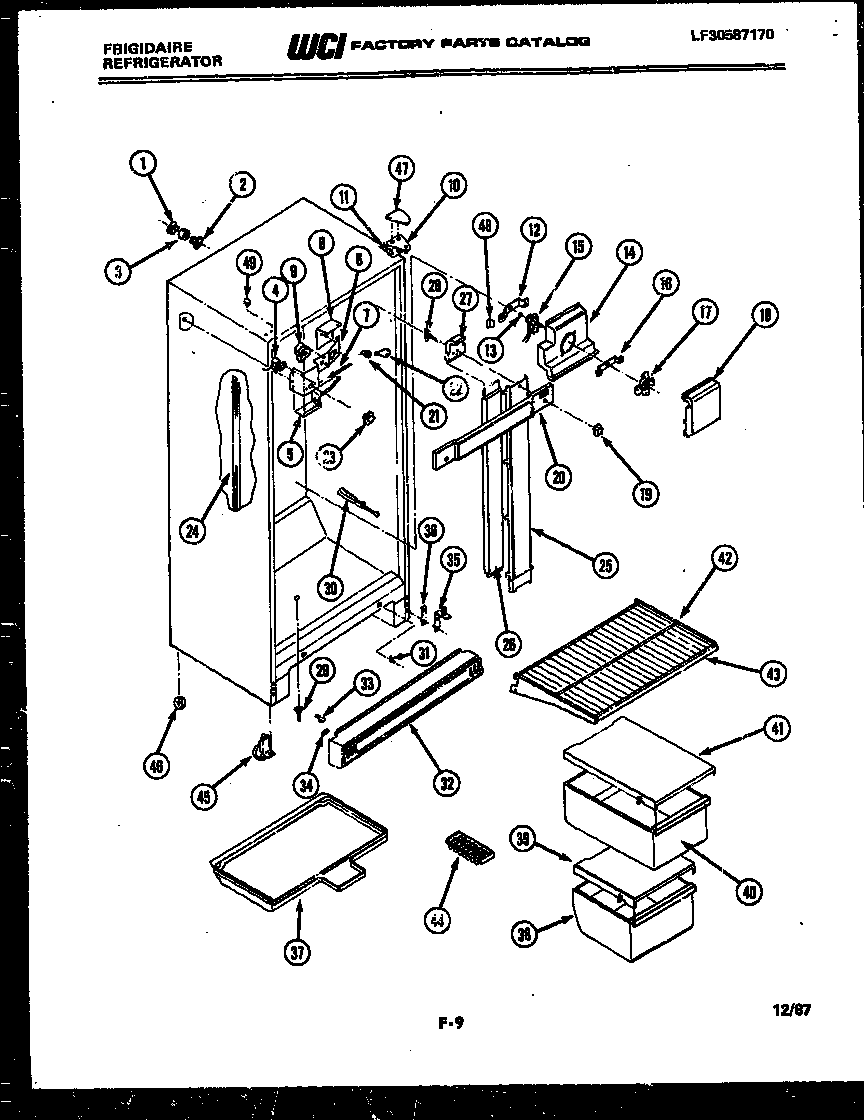

FPIM18MW4 03 – CABINET PARTS

Products

Position	Product
1	WCI 8006970
2	WCI 8006971
3	WCI 8000004
4	THERMOSTAT
4A	HARNESS
4B	SCREW-CONTROL MOUNTING (2) (NON-ILLUSTRATED)
5	COVER
6A	INSULATOR
6	BRACKET-CONTROLS
7	WELL
8	REFLECTOR
9	215846604 Frigidaire Refrigerator Defrost Timer
9A	WCI 8003581
9B	WCI 8000008
10	WCI 8012843
10B	WCI 8002738
10A	SCREW-HINGE MOUNTING (2)
11	WCI 8012829
12	WCI 8000042
13	WCI 8000032
14	HOUSING
15	WCI 8000036
16	WCI 8000043
17	WCI 8000010
18	COVER
19	KNOB
20A	LABEL
20B	LABEL
20	SHIELD-LIGHT
21	WCI 8000815
22	WCI 8000801
23	KNOB
24A	WCI 8002728
24	WCI 8002744
25	DUCT-AIR
26	INSULATION
27	INSULATION
28	DAMPER
28A	NUT
29	TUBE-DRAIN
30	DAMPER
30A	WCI 8003665
31	WCI 8000729
32	APRON
33	WCI 8000091
34	WCI 8000168
35A	WASHER-1/4 NYLON (3)
35	WCI 8000059
35B	SCREW-MTG (2) (NON-ILLUSTRATED)
35C	WCI 8000011
36B	WCI 8000001
36A	WCI 8000013
36	WCI 8000088
37	PAN
38	TRAY-MEATS
39	WCI 8017221
40	WCI 8009626
41	WCI 8017220
42	SHELF (4)
43	TRIM (4)
44	ICE CUBE TRAY (2)
45	WCI 8000118
45A	WCI 8017044
46B	WCI 8000067
46A	WCI 8000266
46	WCI 8000265
47	COVER, HNG, WHTE
48A	SCREW-PANEL MOUNTING (56)
48	WCI 8000107
49B	WCI 8016571
49	WCI 8007099
49A	PLUG-REFRIGERATOR LINER (2)
49C	PLATE-TAPPING (2)
