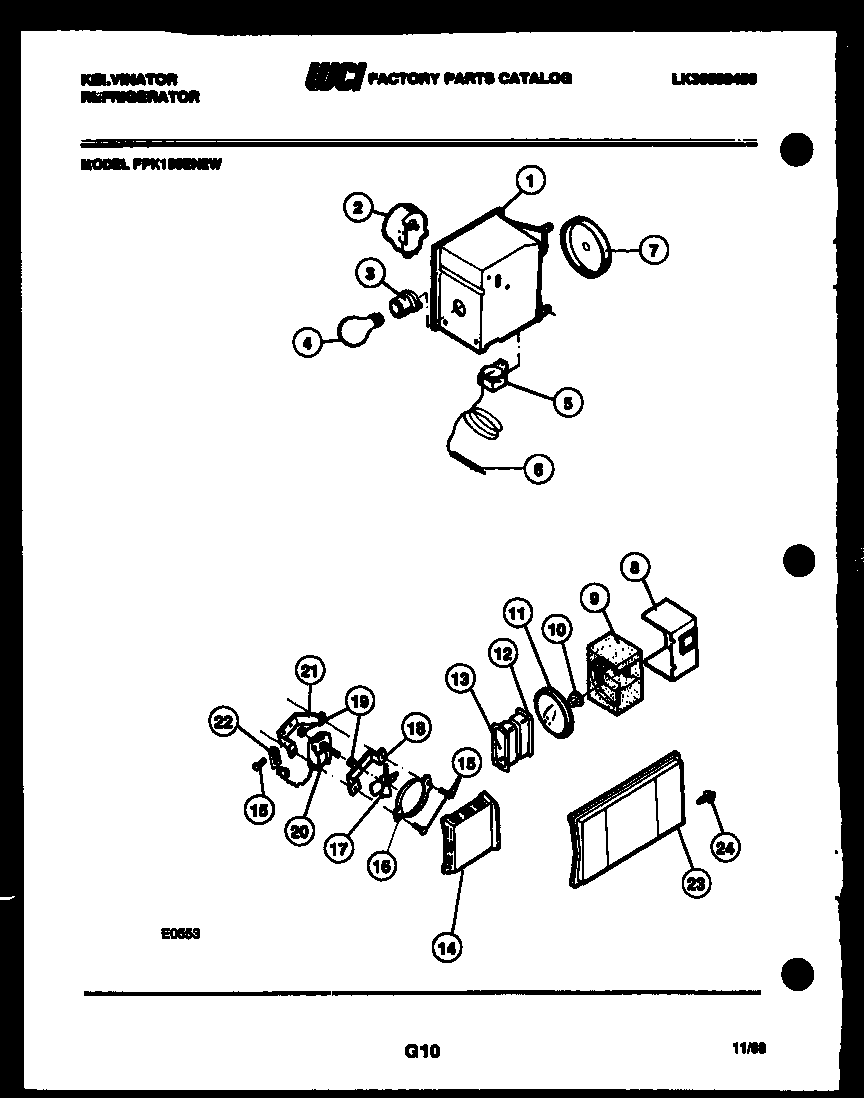

FPK190EN2W 06 – REFRIGERATOR CONTROL ASSEMBLY, DAMP

Products

Position	Product
1B	WCI G165434
1	WCI G189359
1A	5304455852 Frigidaire Refrigerator Screw
2A	5304455649 Frigidaire Refrigerator Screw
2	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
3	SOCKET LIGHT
4	316538904 Frigidaire Oven Lamp Light
5	WCI G162205-05
5B	WIRING HARNESS-CONTROL (NON-ILLUSTRATED)
5A	WCI G107080
6	TUBE
7	WCI G164906-01
8	WCI G164523
9	WCI G164575
10	WCI G185373
11	KNOB, DAMPER CONT.
12	WCI G166803
13A	WCI G167582
13	WCI G166802
14	WCI G164654-01
14A	5304455650 Frigidaire Refrigerator Screw
15	5304455651 Frigidaire Refrigerator Screw
16	RING, FAN ORIFICE
16A	NUT, ORIFICE (2)
17	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
18	WCI G185302
19	G187559 Frigidaire Refrigerator Bushing
20	5300158289 Frigidaire Evaporator Fan Motor
21	WCI G185303
22	WCI G164571
23	LIGHT SHIELD-REFRIGERATOR
24	WCI G165177
