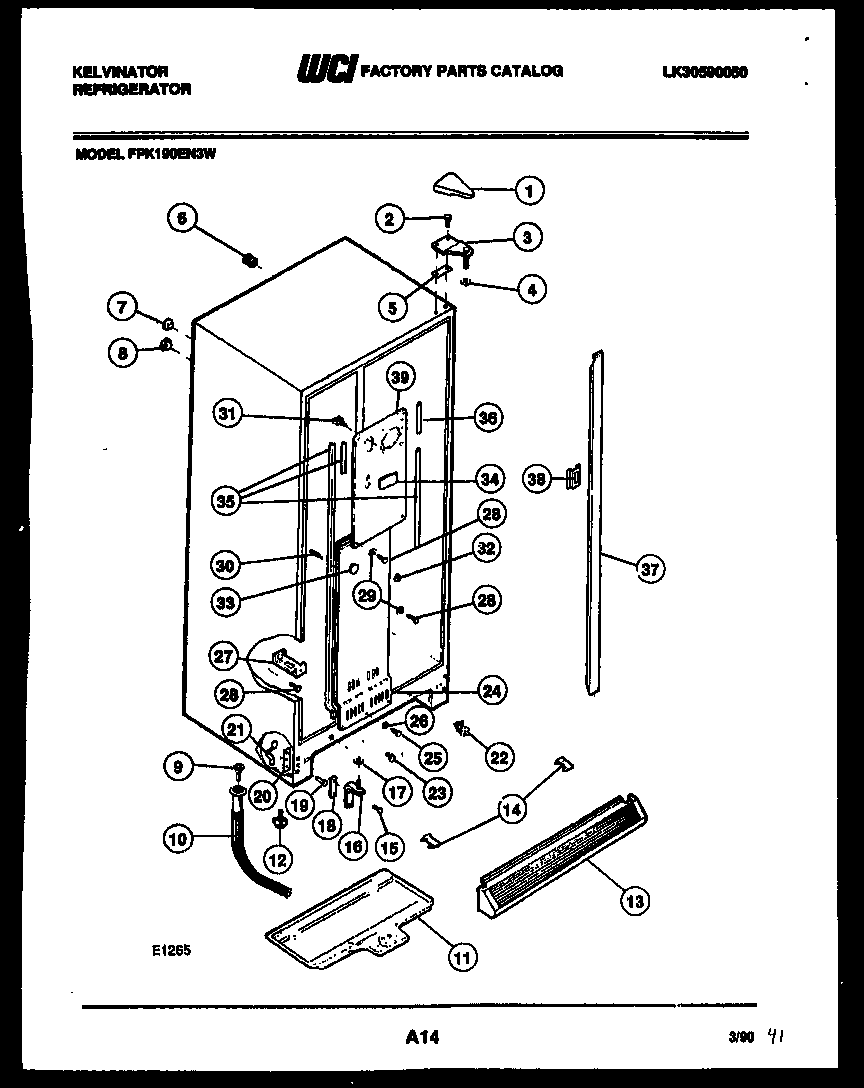

FPK190EN3D 04 – CABINET PARTS

Products

Position	Product
*13613	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
1	COVER-UPPER HINGE, ALMOND
2	241710601 Frigidaire Refrigerator Screw
3A	WCI 5303001062
3	WCI 5308012934
3B	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
4	WCI 5308000186
5	SHIM - UPPER HINGE
6	TUBE-RUBBER
7	WCI 5303001287
8	WCI 5303001286
9	WCI 5308000853
10	WCI 5303209723
11	WCI 5308000086
12	LEVELING SCREW (2)
13	WCI G161905-07
14	CLIP-GRILLE
15	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
16	HINGE-BOTTOM
17	WASHER, .28 X .62 X .19, NYLON
18	SHIM-BTM HINGE (3)
19	WCI 5308000013
20	WCI 5303001273
21	WCI 5300077210
22	5303289051 Frigidaire Refrigerator Light Switch
23	BUTTON PLUG-CAB BASE
24	WCI 5308017223
25	WCI 5303001230
26	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
27	WCI 5308000738
28	5304455650 Frigidaire Refrigerator Screw
29	WASHER-NYLON,3/16 X 5/8 OD
30	WCI 5303001250
31	SUPPORT-COIL COVER
32	WCI 5303001231
33	5303208309 Frigidaire Refrigerator Plug Hole
34	PLUG-DECORATIVE
35	WCI 5303001233
36	WCI 5303001219
37	WCI 5303916448
38A	WCI 5303001281
38	WCI 5300169100
39	COVER-EVAP COIL, UPPER
