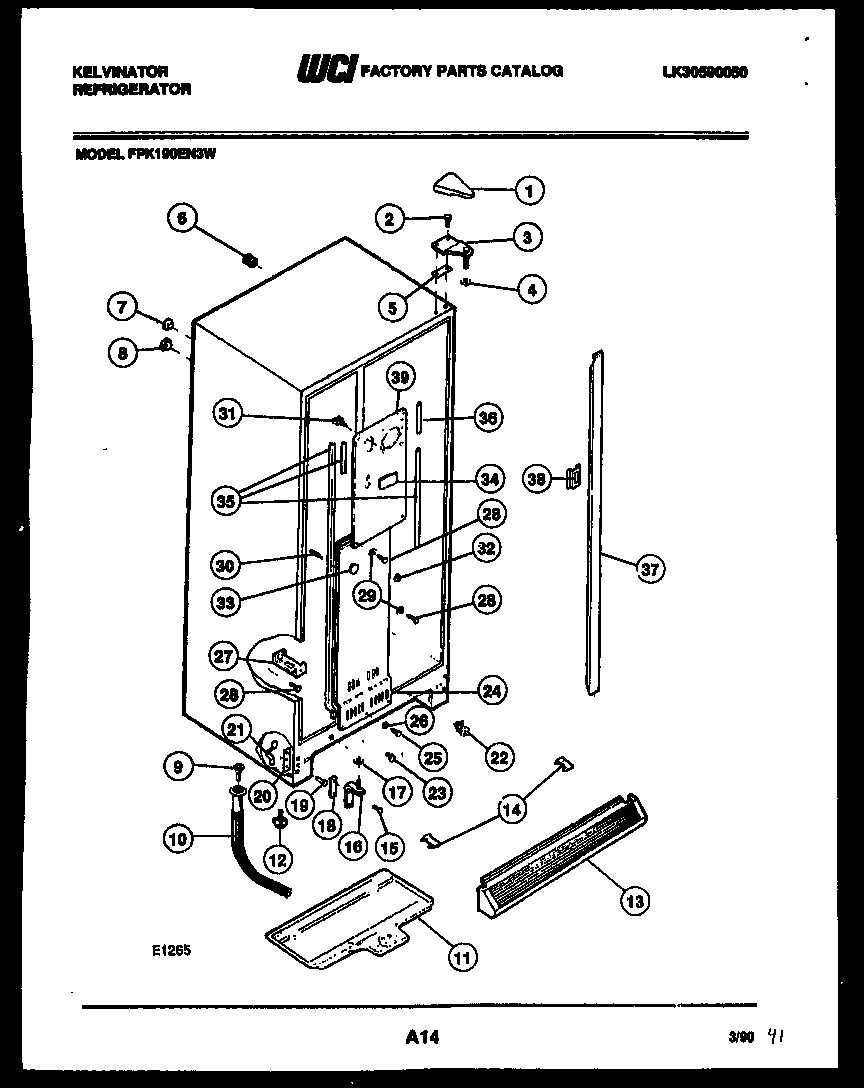

FPK190EN3F 04 – CABINET PARTS

FPK190EN3F 04 – CABINET PARTS

Written by

in

FPK190EN3F 04 – CABINET PARTS

Products

PositionProduct
*13613NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
1WCI 5303001666
2241710601 Frigidaire Refrigerator Screw
3WCI 5308012934
3AWCI 5303001062
3BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
4WCI 5308000186
5SHIM – UPPER HINGE
6TUBE-RUBBER
7WCI 5303001287
8WCI 5303001286
9WCI 5308000853
10WCI 5303209723
11WCI 5308000086
12LEVELING SCREW (2)
13WCI G161905-07
14CLIP-GRILLE
15SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
16HINGE-BOTTOM
17WASHER, .28 X .62 X .19, NYLON
18SHIM-BTM HINGE (3)
19WCI 5308000013
20WCI 5303001273
21WCI 5300077210
225303289051 Frigidaire Refrigerator Light Switch
23BUTTON PLUG-CAB BASE
24WCI 5308017223
25WCI 5303001230
26WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
27WCI 5308000738
285304455650 Frigidaire Refrigerator Screw
29WASHER-NYLON,3/16 X 5/8 OD
30WCI 5303001250
31SUPPORT-COIL COVER
32WCI 5303001231
335303208309 Frigidaire Refrigerator Plug Hole
34PLUG-DECORATIVE
35WCI 5303001233
36WCI 5303001219
37WCI 5303916447
38AWCI 5303001281
38WCI 5300169100
39COVER-EVAP COIL, UPPER
