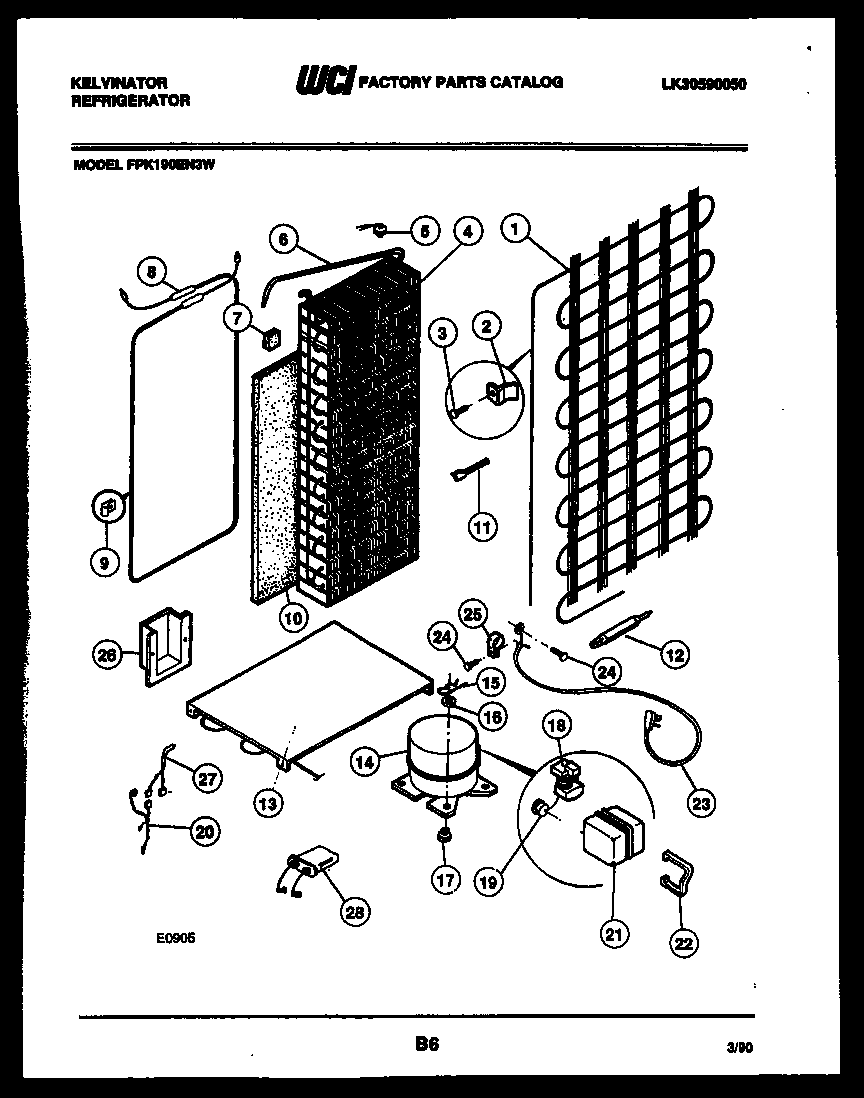

FPK190EN3F 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
1	WCI 5308017228
1A	WCI 5300189379
2	BRACKET-MTG (4)
3	5308000039 Frigidaire Refrigerator Screw
3A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
4A	TUBE-INLET (NOT ILLUSTRATED)
4B	WCI 5308009619
4	WCI 3206421
5	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
6	WCI 5308017565
7	WCI 5308000828
8	WCI 5303007568
9	WCI 5308002777
10	WCI 5303001235
11	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
12	5303305677 Frigidaire Replacement Filter Dryer Filters
12B	218843801 Frigidaire Refrigerator Screw
13	WCI 5300188724
14	WCI 08950223
15	CLIP - COMPRESSOR MTG
16	WASHER-COMPR MTG
17	218513300 Frigidaire Refrigerator Compressor Mount Grommet
18	RELAY-TL
19	5303271616 Frigidaire Refrigerator P1-Overload
20	WIRING HARNESS, COMPR/LIGHT SW
22	5303006412 Frigidaire Refrigerator Cover Mounting Strap
23	CORD-ELECTRIC POWER
24	5304455651 Frigidaire Refrigerator Screw
25C	5308000133 Frigidaire Refrigerator Clamp
25A	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
26	WCI 5303001197
27	WIRING HARNESS, CONTROLS
27C	WCI 5303001231
27B	5304455650 Frigidaire Refrigerator Screw
27A	CLIP-WIRING HARNESS
28	CAPACITOR
