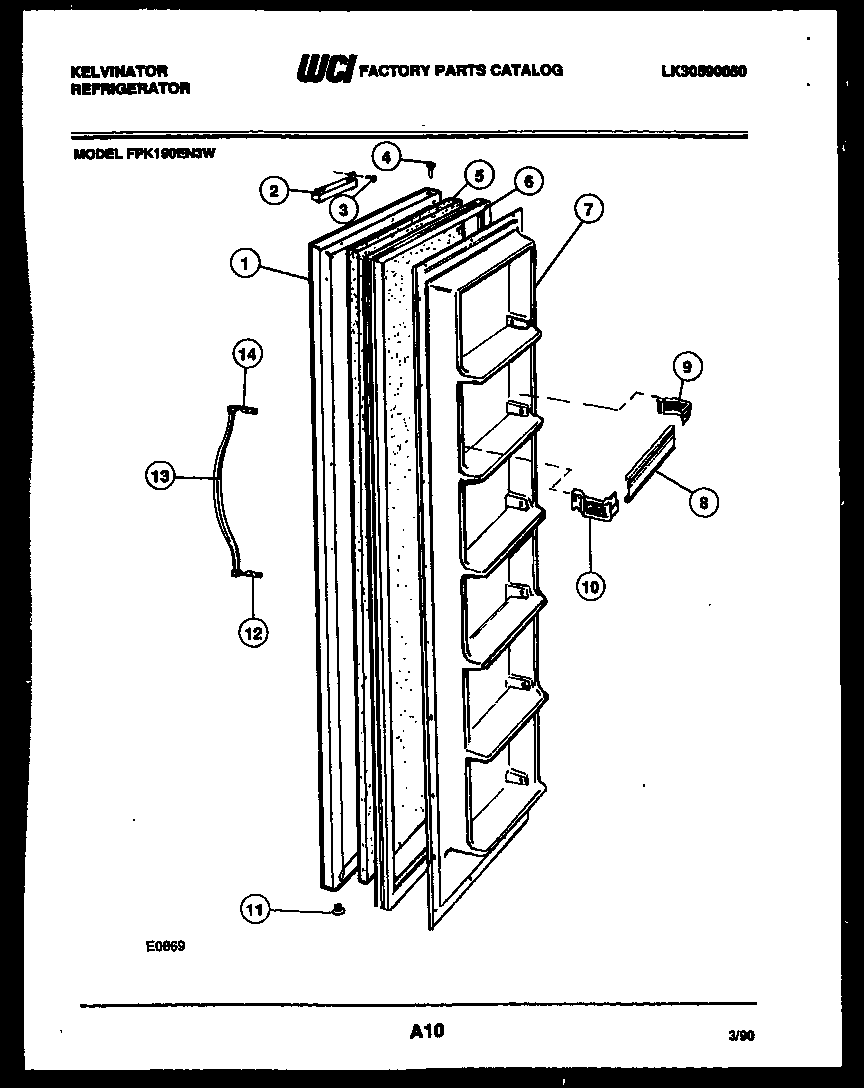

FPK190EN3V 02 – FREEZER DOOR PARTS

Products

Position	Product
*13590	WCI 5308011745
1	PANEL – EXTERIOR – AVOCADO
2	WCI 5303200272
3	SCREW-CLOSER MTG
4A	BEARING-HINGE
4	WCI 5303001022
5	INSULATION-BULK (NON-ILLUSTRATED)
6	WCI 5303200474
7B	WCI 5303209636
7	218843801 Frigidaire Refrigerator Screw
7	WCI G166891-03
8	RACK-FREEZER DOOR (6)
9	SUPPORT – RACK RH (6)
10	SUPPORT – RACK LH (6)
11	WCI 5315230801
12	HANDLE END-TOP
13D	ANCHOR – NUT (2) (NON-ILLUSTRATED)
13B	SPACER-HANDLE (2) (NON-ILLUSTRATED)
13A	INSERT – HANDLE (NON-ILLUSTRATED)
13C	SCREW (6)
13	HANDLE – DOOR
14	HANDLE, END-BOTTOM
