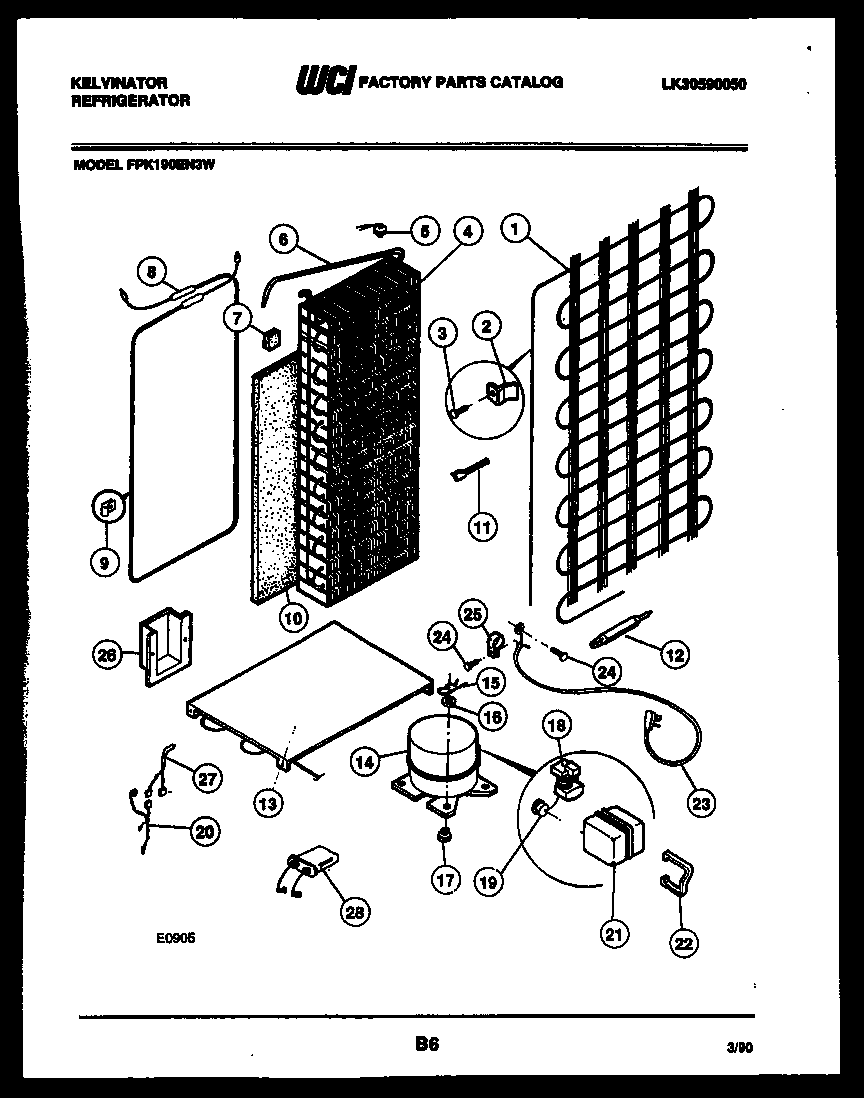

FPK190EN3W 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPK190EN3W 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPK190EN3W 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI 5308017228
1AWCI 5300189379
2BRACKET-MTG (4)
35308000039 Frigidaire Refrigerator Screw
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
4ATUBE-INLET (NOT ILLUSTRATED)
4BWCI 5308009619
4WCI 3206421
55303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
6WCI 5308017565
7WCI 5308000828
8WCI 5303007568
9WCI 5308002777
10WCI 5303001235
115308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
125303305677 Frigidaire Replacement Filter Dryer Filters
12B218843801 Frigidaire Refrigerator Screw
13WCI 5300188724
14WCI 08950223
15CLIP – COMPRESSOR MTG
16WASHER-COMPR MTG
17218513300 Frigidaire Refrigerator Compressor Mount Grommet
18RELAY-TL
195303271616 Frigidaire Refrigerator P1-Overload
20WIRING HARNESS, COMPR/LIGHT SW
225303006412 Frigidaire Refrigerator Cover Mounting Strap
23CORD-ELECTRIC POWER
245304455651 Frigidaire Refrigerator Screw
25C5308000133 Frigidaire Refrigerator Clamp
25A5303001199 Frigidaire Refrigerator Wiring Harness Clamp
26WCI 5303001197
27WIRING HARNESS, CONTROLS
27CWCI 5303001231
27B5304455650 Frigidaire Refrigerator Screw
27ACLIP-WIRING HARNESS
28CAPACITOR
