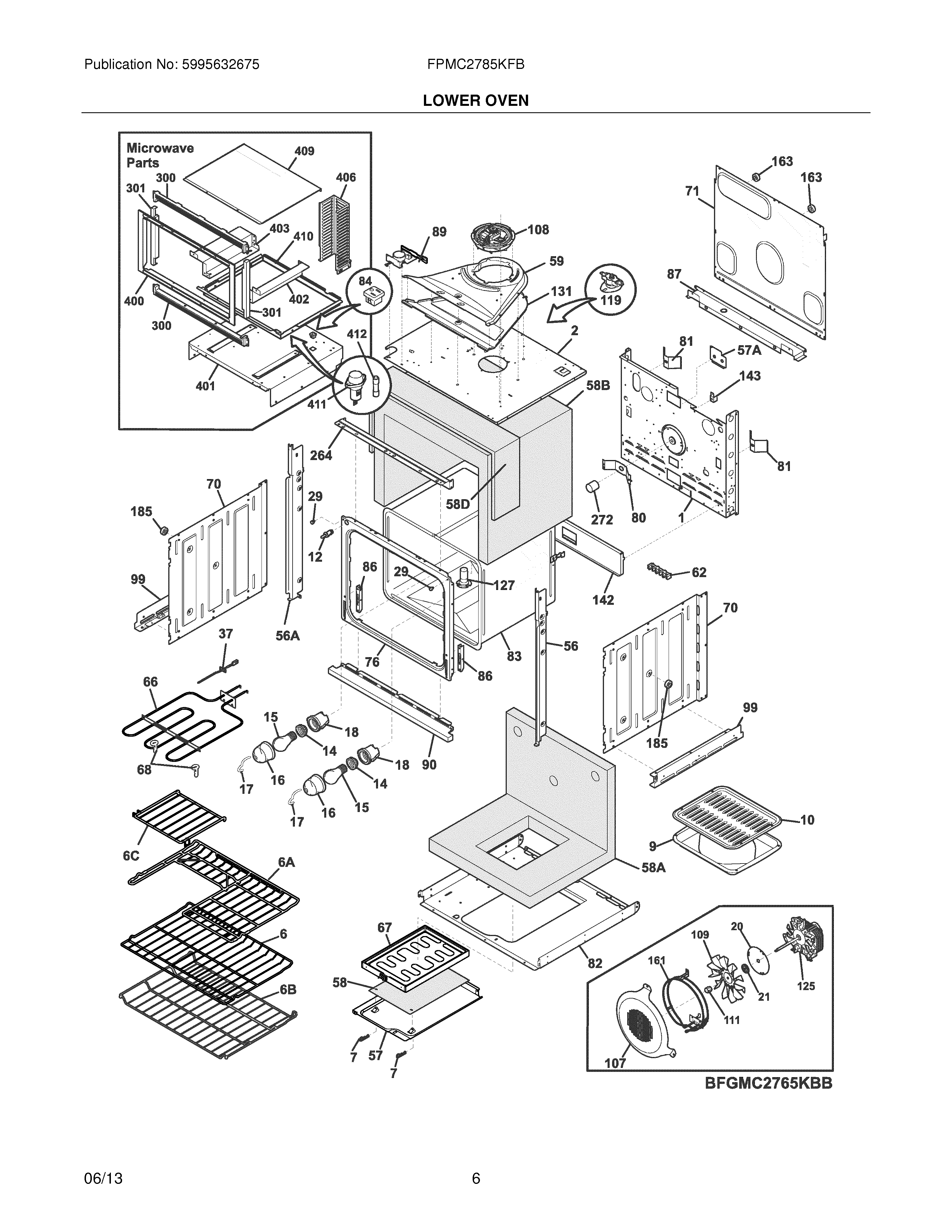

FPMC2785KFB 07 – LOWER OVEN

FPMC2785KFB 07 – LOWER OVEN

Written by

in

FPMC2785KFB 07 – LOWER OVEN

Products

PositionProduct
NI318165800 Frigidaire Oven Door Glass Spacer with Screw
NIWCI 318368501
NIScrew,No.8-18 x 3/8 ,(10)
NI5304461333 Frigidaire Oven Screw
NIWCI 318268004
NI5304506984 Frigidaire Harness Assembly
NI5303323129 Frigidaire Oven Screw
NIWCI 318572714
NISCREW-SHOULDER
NIWCI 318579001
NIWCI 5304400192
NIWCI 318231870
NIWCI 318572721
NI5303211311 Frigidaire Refrigerator Screw
NI5303323277 Frigidaire Oven Screw
NI5304436875 Frigidaire Oven Screw
NI5304480396 Frigidaire Screw
NI5303323139 Frigidaire Oven Screw
NI5304453707 Frigidaire Oven Screw
NI5304415832 Frigidaire Oven Screw
NISCREW, TOP TRIM, 6-32 X 3/8, BLACK, (2) (NOT ILLUSTRATED
NI5303324184 Frigidaire Wall Oven Range Screw
NI316205500 Frigidaire Oven Nut
NI5303323130 Frigidaire Oven Screw
1WCI 318259213
2WCI 318570510
6318922301 Frigidaire Oven Rack
6AWCI 318926804
6BWCI 318919800
6CWCI 318929703
7318368300 Frigidaire PIN
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12808136601 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
18WCI 318222400
20WCI 318389400
21318389000 Frigidaire Oven Seal
29316517600 Frigidaire Oven Spacer
37SENSOR
56AWCI 318276355
56WCI 318276354
57WCI 318902701
57AWCI 318402800
58AWCI 318594320
58BWCI 318594303
58WCI 318330503
58DWCI 318372006
59WCI 318570600
625304409888 Frigidaire Oven Terminal Block with Hardware
66318255606 Frigidaire Range Oven Broil Element
67318902502 Frigidaire Oven Element
685304403015 Frigidaire Oven Support
70WCI 318259105
71WCI 318260001
76WCI 318056224
80WCI 5303320846
81WCI 318192400
82WCI 318258774
83WCI 318261512
84WCI 318146833
86318561100 Frigidaire Receptacle
87WCI 318260623
89318261229 Frigidaire Oven Motor
90WCI 318259863
99WCI 318256203
107WCI 318219405
108318575603 Frigidaire Range Cooling Fan Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318578506 Frigidaire Oven High Limit Thermostat
1255304463302 Frigidaire Convection Motor
127WCI 318317105
131WCI 318574800
142WCI 318123910
143318172904 Frigidaire Bracket
161318255504 Frigidaire Oven Element
163Spacer,(4)
185318531800 Frigidaire Oven Spacer
264WCI 318257713
272WCI 318249412
300WCI 318925002
301WCI 318925105
400WCI 318930303
401WCI 318297206
402WCI 318276204
403WCI 318276206
406WCI 318277201
409WCI 318295301
410WCI 318297111
412318647300 Frigidaire Microwave Fuse and Holder
