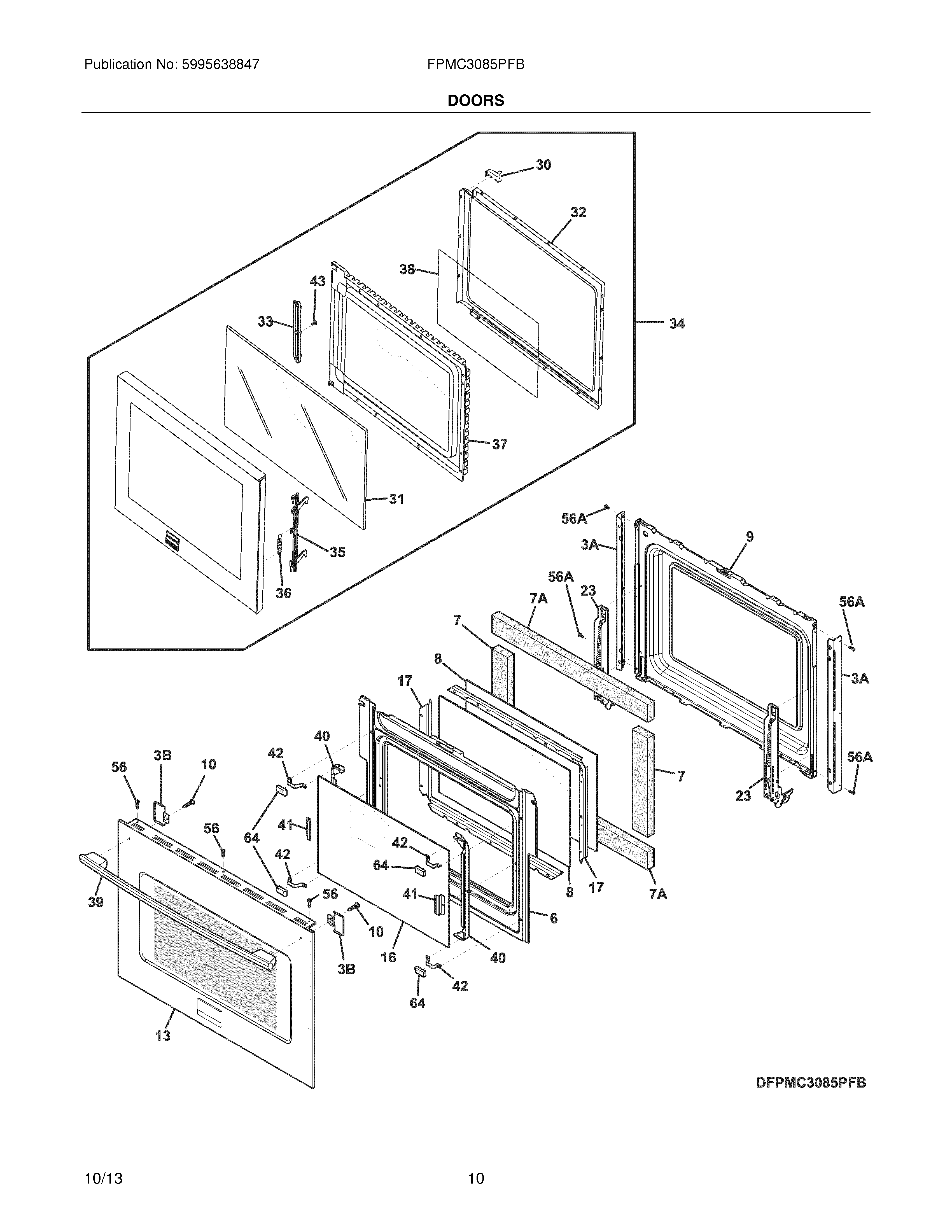

FPMC3085PFB 09 – DOORS

Products

Position	Product
NI	316418900 Frigidaire Oven Screw
3B	318262104 Frigidaire Oven Cover
3A	139014401 Frigidaire Oven Trim
6	139006905 Frigidaire Oven Baffle
7	318372017 Frigidaire Insulation
7A	318372016 Frigidaire Insulation
8	5304503232 Frigidaire Oven Inner Door Glass
9	139000411 Frigidaire Oven Liner
10	WCI 5304472906
13	DOOR ASSEMBLY, OUTER, STAINLESS, W/TRIM & BADGE
16	316446401 Frigidaire Oven Glass
17	318264731 Frigidaire Oven Spacer
23	316575915 Frigidaire Oven Hinge
30	5304442145 Frigidaire Microwave Door STOP
31	WCI 5304472853
32	5304440861 Frigidaire Microwave CHOKE Cover
33	WCI 5304440862
34	WCI 5304475289
35	5304441893 Frigidaire Microwave Latch
36	5304440316 Frigidaire Microwave Spring Assembly
37	WCI 5304472852
38	5304440860 Frigidaire Microwave Seal
39	WCI 316551500
40	318242702 Frigidaire Oven Bracket Assembly
41	318370602 Frigidaire Oven Bracket
42	318382302 Frigidaire Bracket
43	5304452259 Frigidaire Screw
56A	5303324184 Frigidaire Wall Oven Range Screw
56	316021109 Frigidaire Oven Screw
64	318165800 Frigidaire Oven Door Glass Spacer with Screw
