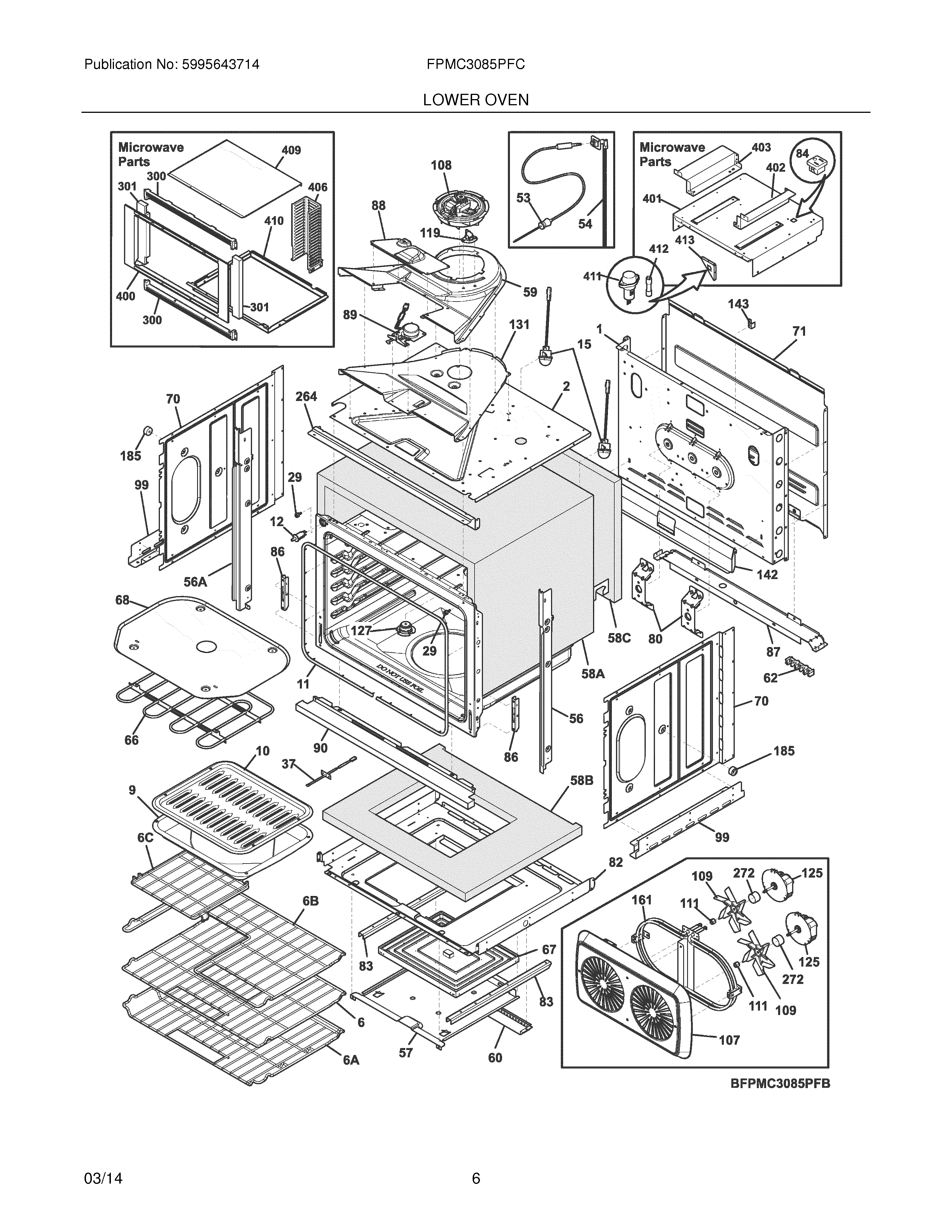

FPMC3085PFC 07 – LOWER OVEN

FPMC3085PFC 07 – LOWER OVEN

Written by

in

FPMC3085PFC 07 – LOWER OVEN

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5304506955 Frigidaire Harness Assembly
NIWCI 318579001
NI5303323130 Frigidaire Oven Screw
NI318946500 Frigidaire Oven Light Bulb Range/Wall
NI5304470882 Frigidaire Oven Screw
NI316303501 Frigidaire Assembly Harness
NIWCI 316533900
NI318165800 Frigidaire Oven Door Glass Spacer with Screw
NI316418900 Frigidaire Oven Screw
NI316001017 Frigidaire Screw
NIWCI 318231870
NIWCI 5304490878
NI316205500 Frigidaire Oven Nut
NI5304517368 Frigidaire Harness
NI316021109 Frigidaire Oven Screw
NI240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
NI5303289910 Frigidaire Oven Screw
1WCI 139017304
2139028107 Frigidaire Shield
65304514983 Frigidaire Oven Rack
6A139012400 Frigidaire Oven Rack
6CRACK INSERT, HALF RACK
6BRACK, OVEN, HALF, W/HANDLE
9318138801 Frigidaire Oven Pan
10316082001 Frigidaire Oven Insert
11807545502 Frigidaire Oven Seal
12316445501 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
29316517600 Frigidaire Oven Spacer
37SENSOR
535304504202 Frigidaire Red Meat Temperature Probe
54139017203 Frigidaire Assembly Receptacle
56AWCI 318276355
56WCI 318276354
57807988901 Frigidaire Oven Panel
58A139001700 Frigidaire Insulation
58B807989001 Frigidaire Insulation
58C139021400 Frigidaire Insulation
59139027600 Frigidaire Oven Duct
60807285601 Frigidaire Oven Shield
625304409888 Frigidaire Oven Terminal Block with Hardware
665304521861 Frigidaire Element
67318601604 Frigidaire Oven Bake Element
68WCI 807890403
70139000601 Frigidaire Oven Shield
71139020000 Frigidaire Shield
80139021101 Frigidaire Bracket Assembly
82Shield,insulation ,lower
83807988802 Frigidaire Shield
845304517286 Frigidaire Outlet Assembly
86318561100 Frigidaire Receptacle
87139020100 Frigidaire Oven Bracket
885304506964 Frigidaire Oven Cover
89139021302 Frigidaire Oven Motor
90139008713 Frigidaire Oven Trim
99318256201 Frigidaire Oven Bracket
107COVER, DUAL FAN, CONVECTION
107807597603 Frigidaire Oven Screw
108318575612 Frigidaire Oven Cooling Fan Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318578506 Frigidaire Oven High Limit Thermostat
125139008502 Frigidaire Oven Motor Assembly
127139042600 Frigidaire Tube Assembly
131139027700 Frigidaire Oven Duct
1425304507678 Frigidaire Shield
143318172904 Frigidaire Bracket
1615304522063 Frigidaire Element
185318531800 Frigidaire Oven Spacer
264139017601 Frigidaire Oven Trim
272139021700 Frigidaire Oven Tube
300WCI 318925002
301WCI 318925104
400SCREW, TOP TRIM, 6-32 X 3/8 (NOT ILLUSTRATED)
400WCI 318930203
401WCI 139085502
402WCI 318276204
403WCI 318276206
406WCI 318277201
409WCI 318295301
410WCI 318297111
4115304453707 Frigidaire Oven Screw
412318647300 Frigidaire Microwave Fuse and Holder
413807874501 Frigidaire Microwave Gusset
