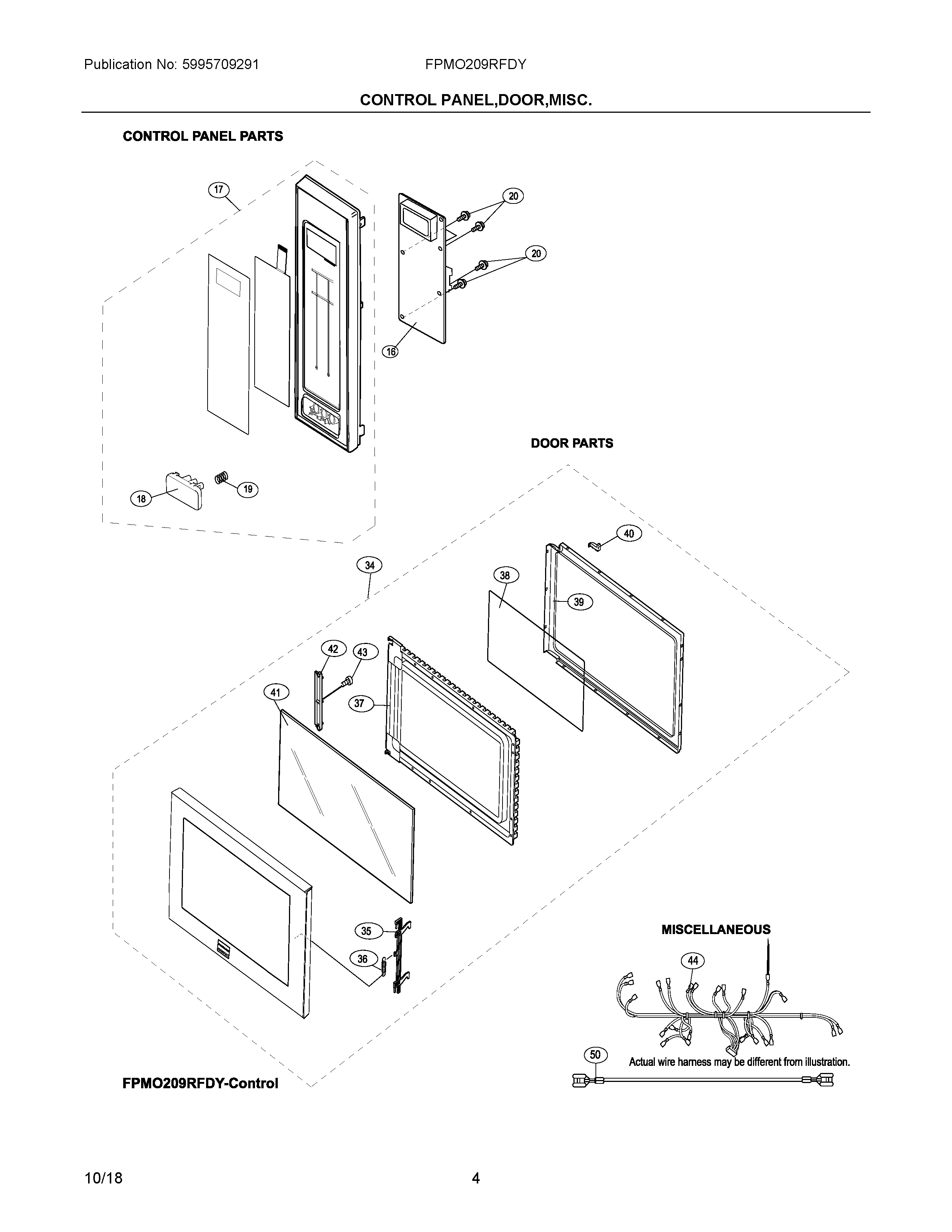

FPMO209RFDY 03 – CONTROL PANEL,DOOR,MISC.

FPMO209RFDY 03 – CONTROL PANEL,DOOR,MISC.

Written by

in

FPMO209RFDY 03 – CONTROL PANEL,DOOR,MISC.

Products

PositionProduct
165304516276 Frigidaire Microwave Control Board
175304503438 Frigidaire Microwave Control Panel Assembly
185304462915 Frigidaire Microwave Push Button
195304440831 Frigidaire Microwave Spring Assembly
205304456930 Frigidaire Microwave Screw
345304503440 Frigidaire Microwave Door Assembly
355304441893 Frigidaire Microwave Latch
365304440316 Frigidaire Microwave Spring Assembly
375304440857 Frigidaire Microwave Panel
385304440860 Frigidaire Microwave Seal
395304440861 Frigidaire Microwave CHOKE Cover
405304442145 Frigidaire Microwave Door STOP
41WCI 5304503441
42WCI 5304440862
435304452259 Frigidaire Screw
445304516269 Frigidaire Microwave Wiring Harness
505304493150 Frigidaire Microwave Assembly Rectifier
