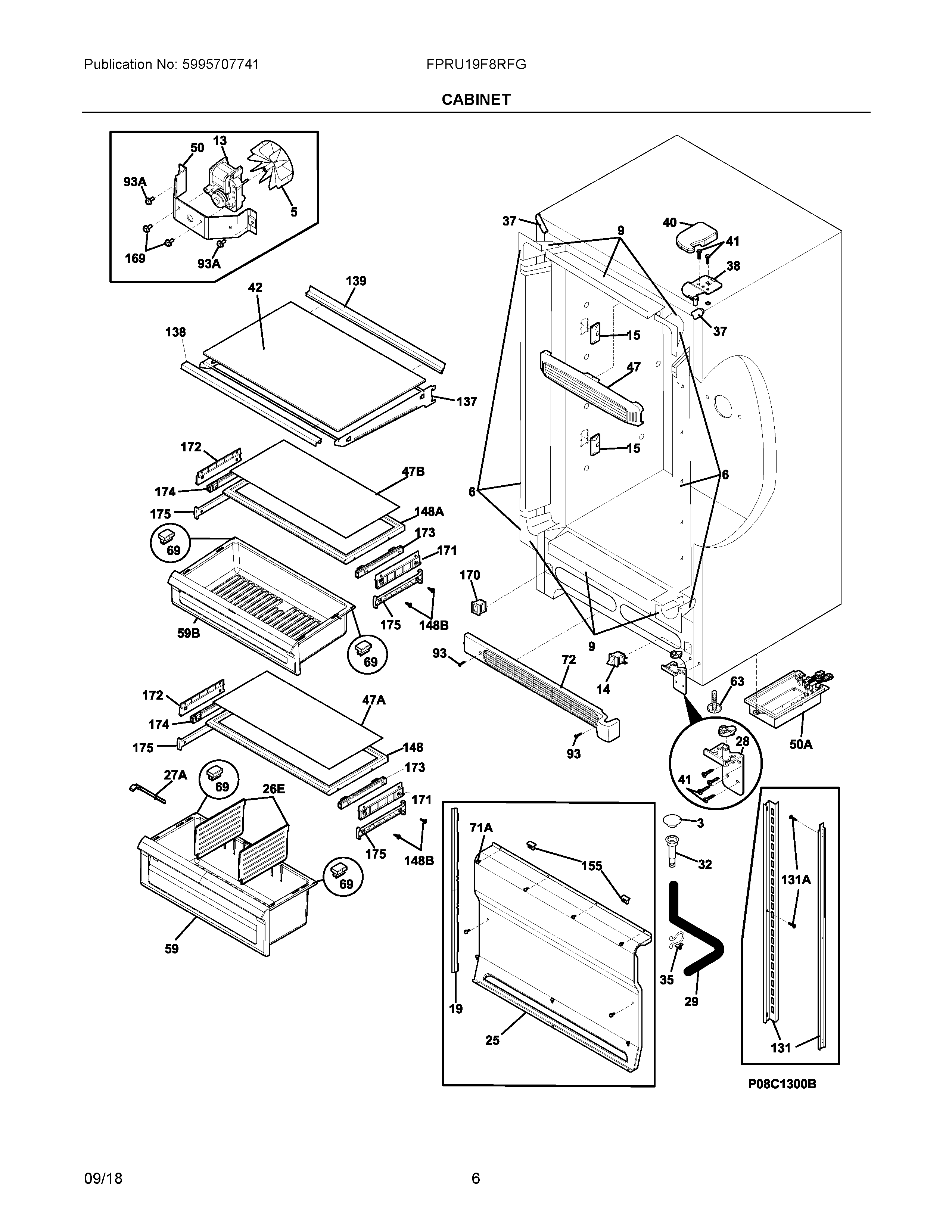

FPRU19F8RFG 03 – CABINET

FPRU19F8RFG 03 – CABINET

Written by

in

FPRU19F8RFG 03 – CABINET

Products

PositionProduct
NI297048000 Frigidaire Refrigerator Screw
NI216036601 Frigidaire Refrigerator Screw
NIABracket,LH leg levelor
NIBBracket,RH leg levelor
NI5304498525 Frigidaire Service Data Sheet
NI297165400 Frigidaire Refrigerator Access Cover
NIA297001704 Frigidaire Refrigerator Insulation
NI216337701 Frigidaire Refrigerator Screw
NIWCI 5304508335
3216503100 Frigidaire Refrigerator Screen-Drain
5FAN BLADE, EVAPORATOR
6297200900 Frigidaire Refrigerator Breaker Kit W/Corne
9297200100 Frigidaire Refrigerator W/Corner Breaker Kit
13EVAP FAN MOTOR – 115V
14216822900 Frigidaire Refrigerator Switch
15LIGHT-LED
19216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
25COVER-EVAPORATOR
26CWCI 297295600
26EWCI 297099400
27AKNOB, HUMIDITY CONTRL
28297302512 Frigidaire Refrigerator Hinge-Lower
295304510353 Frigidaire Refrigerator Hose
30BREAKER, CORNERS
31297165800 Frigidaire Refrigerator Drain Pan
325304511843 Frigidaire Refrigerator Sleeve
35216273000 Frigidaire Refrigerator Strap
37297273906 Frigidaire Refrigerator Corner Trim Cabinet
38HINGE-UPPER, RH
40COVER-HINGE, GRAY, RH
41240578902 Frigidaire Screw Mounting Hinge
42297265900 Frigidaire Refrigerator Glass Shelf
47A297102705 Frigidaire Glass Cover Crisper
47B297102704 Frigidaire Glass Crisper Cover
47297192903 Frigidaire Refrigerator Baffle
50WCI 08013207
50ABOARD-LED POWER
59A11791811 Frigidaire Crisper Drawer
59B297292302 Frigidaire Refrigerator Deli Drawer
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
69WCI 297297300
71AScrew,8-18AB x.470 QX
72297036907 Frigidaire Refrigerator Grille Kickplate
93A241853202 Frigidaire Refrigerator Screw
93216858001 Frigidaire Refrigerator Screw
131297130200 Frigidaire CHANNEL-SHELF MTG
131ASCREW, TH, 8-18X.470 AB QX, WHITE, (6)
137297050600 Frigidaire Refrigerator Frame-Shelf
138WCI 297261400
139WCI 297261500
148AWCI 297271701
148WCI 297271700
148B297142600 Frigidaire Refrigerator/Freezer Screw
155WCI 5303313703
169216912401 Frigidaire Refrigerator Screw
170297280403 Frigidaire Refrigerator Valve
171297092700 Frigidaire Refrigerator Bracket
172297092701 Frigidaire Refrigerator Bracket
1735304515502 Frigidaire Refrigerator Slide
1745304515501 Frigidaire Refrigerator Slide
175297099500 Frigidaire Refrigerator Support
