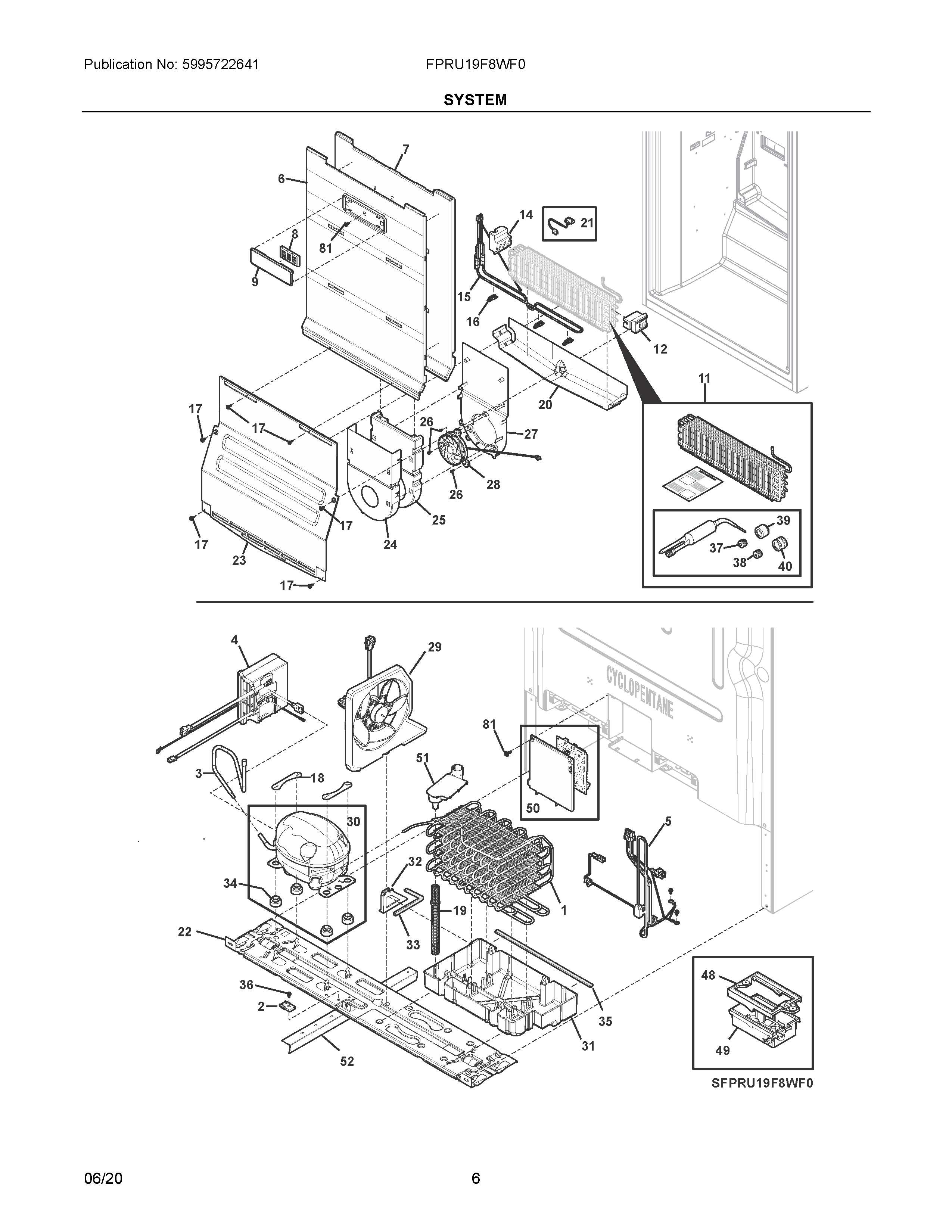

FPRU19F8WF0 04 – SYSTEM

Products

PositionProduct
NI5304523801 Frigidaire Screw Assembly
NI241500305 Frigidaire Refrigerator Screw
NI5304455650 Frigidaire Refrigerator Screw
NI5304464772 Frigidaire Refrigerator Wire Tie
15304533258 Frigidaire Condenser
25304456288 Frigidaire Refrigerator Clamp
35304524612 Frigidaire Refrigerator Tube
45304523779 Frigidaire Refrigerator Inverter
55304532290 Frigidaire Harness
65304528047 Frigidaire Refrigerator Cover Assembly
8PAULTRA2 Frigidaire Pure Air Ultra 2 Filter
95304524695 Frigidaire Refrigerator Cover
11HEAT EXCHANGER KIT,TALL TWINS
125304524954 Frigidaire Refrigerator Support
145304523832 Frigidaire Support
155304524953 Frigidaire Refrigerator Heater
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
175304523738 Frigidaire Refrigerator Screw
185304524607 Frigidaire Clamp
195304525042 Frigidaire Refrigerator Drain Tube
205304524755 Frigidaire Trough
215304524828 Frigidaire Refrigerator Harness Assembly
225304524791 Frigidaire Refrigerator Base Assembly
235304524719 Frigidaire Refrigerator Cover Assembly
24WCI 5304524718
25WCI 5304524847
26240569202 Frigidaire Refrigerator Screw
275304524782 Frigidaire Bracket
285304523741 Frigidaire Evaporator Fan Motor Assembly
295304519734 Frigidaire Refrigerator Fan Assembly
305304532529 Frigidaire Refrigerator Compressor Kit with Installation
315304523709 Frigidaire Refrigerator Pan
325304519745 Frigidaire Refrigerator Baffle
335304519751 Frigidaire Refrigerator Seal
345304523829 Frigidaire Refrigerator Grommet
355304523724 Frigidaire Seal
36240433204 Frigidaire Refrigerator Screw
37L13005643 American Vulkan Lokring Vulkan Fittings 7/2 Nr Al 00
38WCI 5304524188
39WCI 5304524189
485304524865 Frigidaire Frame
495304524866 Frigidaire Refrigerator PC Board
505304529959 Frigidaire Refrigerator Main PC Board Assembly with Housing
51DRAIN JUMPER, ASSEMBLY
52BAFFLE, DIVIDER
815304519765 Frigidaire Refrigerator Screw
