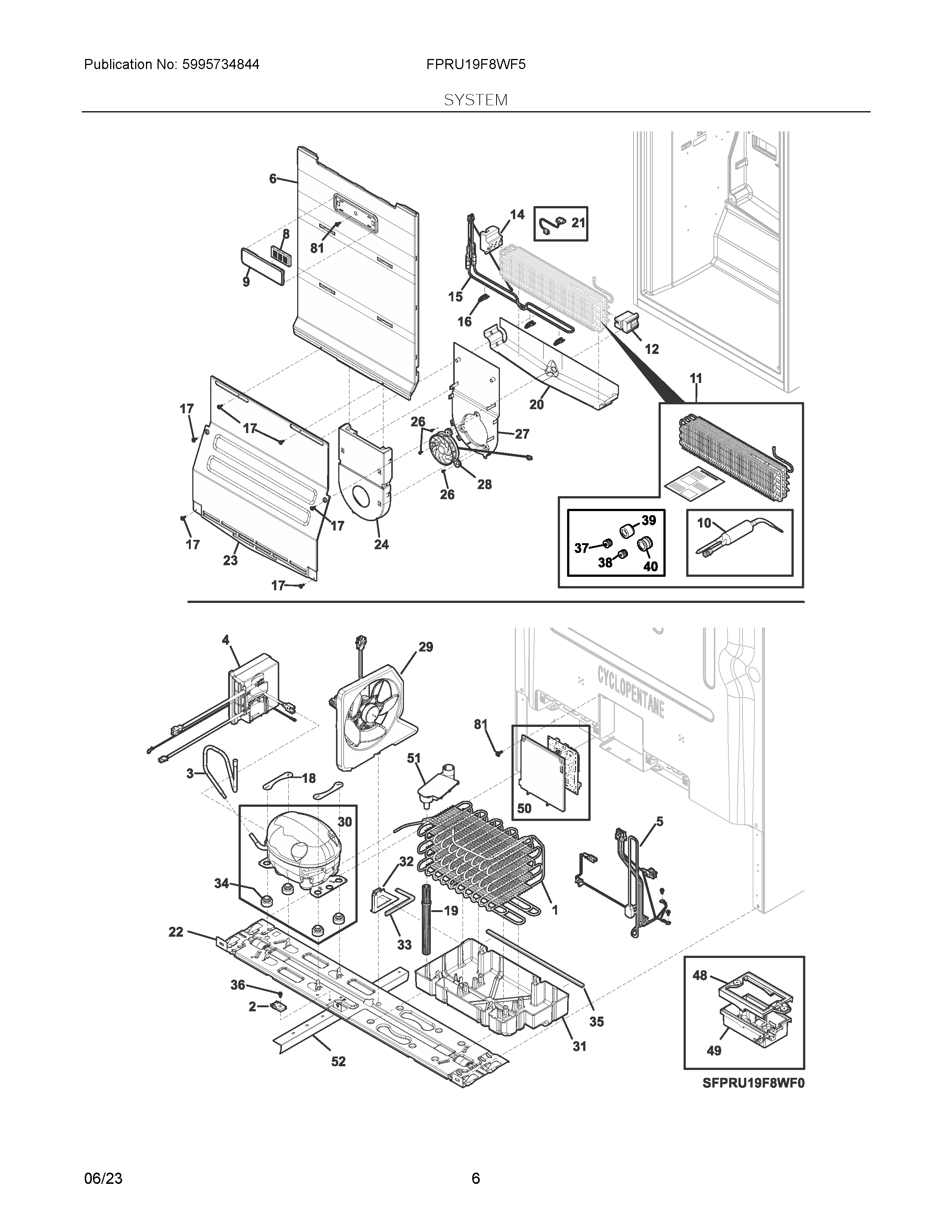

FPRU19F8WF5 04 – SYSTEM

FPRU19F8WF5 04 – SYSTEM

Written by

in

FPRU19F8WF5 04 – SYSTEM

Products

PositionProduct
NI5304464772 Frigidaire Refrigerator Wire Tie
NI5304523801 Frigidaire Screw Assembly
NI5304455650 Frigidaire Refrigerator Screw
15304533258 Frigidaire Condenser
25304456288 Frigidaire Refrigerator Clamp
35303918898 Frigidaire Suction Tube & Lok
45304531506 Frigidaire Refrigerator Inverter
55304532290 Frigidaire Harness
65304528047 Frigidaire Refrigerator Cover Assembly
8FILTER, AIR
95304524695 Frigidaire Refrigerator Cover
10A19676501 Frigidaire Refrigerator Drier Filter
11HEAT EXCHANGER KIT,TALL TWINS
125304524954 Frigidaire Refrigerator Support
145304523832 Frigidaire Support
155304524953 Frigidaire Refrigerator Heater
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
175304523738 Frigidaire Refrigerator Screw
185304524607 Frigidaire Clamp
195304525042 Frigidaire Refrigerator Drain Tube
205304524755 Frigidaire Trough
215304524828 Frigidaire Refrigerator Harness Assembly
225304524791 Frigidaire Refrigerator Base Assembly
235304524719 Frigidaire Refrigerator Cover Assembly
245304528048 Frigidaire Refrigerator Cover Assembly
26240569202 Frigidaire Refrigerator Screw
275304524782 Frigidaire Bracket
285304523741 Frigidaire Evaporator Fan Motor Assembly
295304535399 Frigidaire Condenser Fan Shroud Assembly
30AGROMMET, CMPRSR MTG, 23
305304530136 Frigidaire Refrigerator Compressor
31A5304519744 Frigidaire Refrigerator Tape
315304523709 Frigidaire Refrigerator Pan
325304519745 Frigidaire Refrigerator Baffle
335304519751 Frigidaire Refrigerator Seal
345304523829 Frigidaire Refrigerator Grommet
355304523724 Frigidaire Seal
36240433204 Frigidaire Refrigerator Screw
37RING-LOK (JUMPER IN), 37 #
40LOCK RING, DRIER
485304524865 Frigidaire Frame
495304524866 Frigidaire Refrigerator PC Board
505304536819 Frigidaire Electrical Control
515304530111 Frigidaire Refrigerator Drain Jumper
52BAFFLE, DIVIDER
53COVER, DRAIN JUMPER
815304519765 Frigidaire Refrigerator Screw
