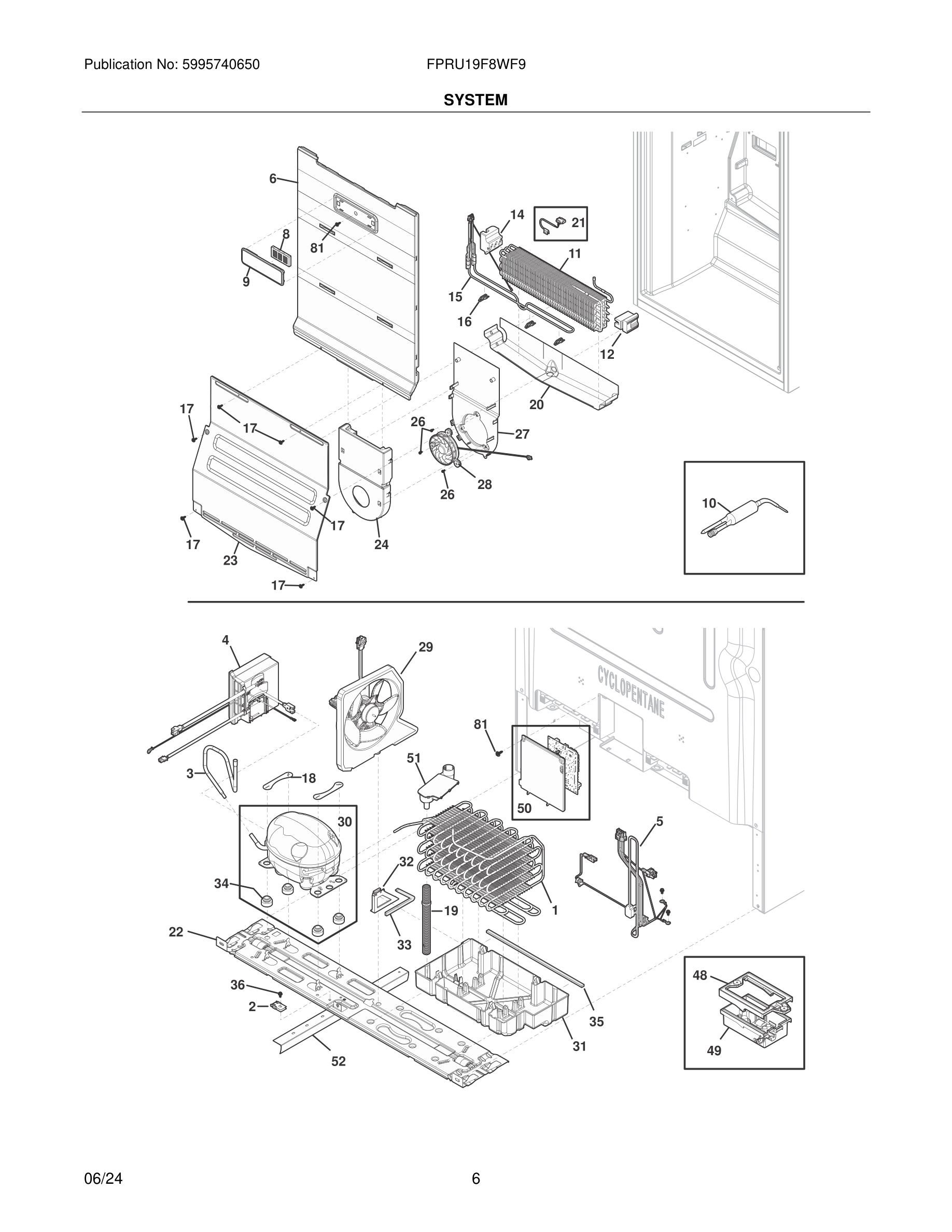

FPRU19F8WF9 07 – SYSTEM

FPRU19F8WF9 07 – SYSTEM

Written by

in

FPRU19F8WF9 07 – SYSTEM

Products

PositionProduct
*5304523801 Frigidaire Screw Assembly
*WCI 30534600
*5304464772 Frigidaire Refrigerator Wire Tie
1#5304533258 Frigidaire Condenser
25304456288 Frigidaire Refrigerator Clamp
3#5304519693 Frigidaire Tube
4#5304531506 Frigidaire Refrigerator Inverter
5#5304532290 Frigidaire Harness
65304528047 Frigidaire Refrigerator Cover Assembly
8FILTER, AIR
95304524695 Frigidaire Refrigerator Cover
10A19676501 Frigidaire Refrigerator Drier Filter
115304523830 Frigidaire Refrigerator Evaporator
125304524954 Frigidaire Refrigerator Support
145304523832 Frigidaire Support
15#5304524953 Frigidaire Refrigerator Heater
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
175304523738 Frigidaire Refrigerator Screw
185304524607 Frigidaire Clamp
195304525042 Frigidaire Refrigerator Drain Tube
205304524755 Frigidaire Trough
21#5304524828 Frigidaire Refrigerator Harness Assembly
225304524791 Frigidaire Refrigerator Base Assembly
235304524719 Frigidaire Refrigerator Cover Assembly
245304528048 Frigidaire Refrigerator Cover Assembly
26240569202 Frigidaire Refrigerator Screw
275304524782 Frigidaire Bracket
28#5304523741 Frigidaire Evaporator Fan Motor Assembly
29#5304535399 Frigidaire Condenser Fan Shroud Assembly
30#5304530136 Frigidaire Refrigerator Compressor
315304523709 Frigidaire Refrigerator Pan
325304519745 Frigidaire Refrigerator Baffle
335304519751 Frigidaire Refrigerator Seal
34GROMMET, CMPRSR MTG, 23
355304523724 Frigidaire Seal
36240433204 Frigidaire Refrigerator Screw
485304524865 Frigidaire Frame
49#5304524866 Frigidaire Refrigerator PC Board
50#5304536819 Frigidaire Electrical Control
515304530111 Frigidaire Refrigerator Drain Jumper
52BAFFLE, DIVIDER
53COVER, DRAIN JUMPER
815304519765 Frigidaire Refrigerator Screw
