FPRU19F8WFB 05 – CABINET

FPRU19F8WFB 05 – CABINET

Written by

in

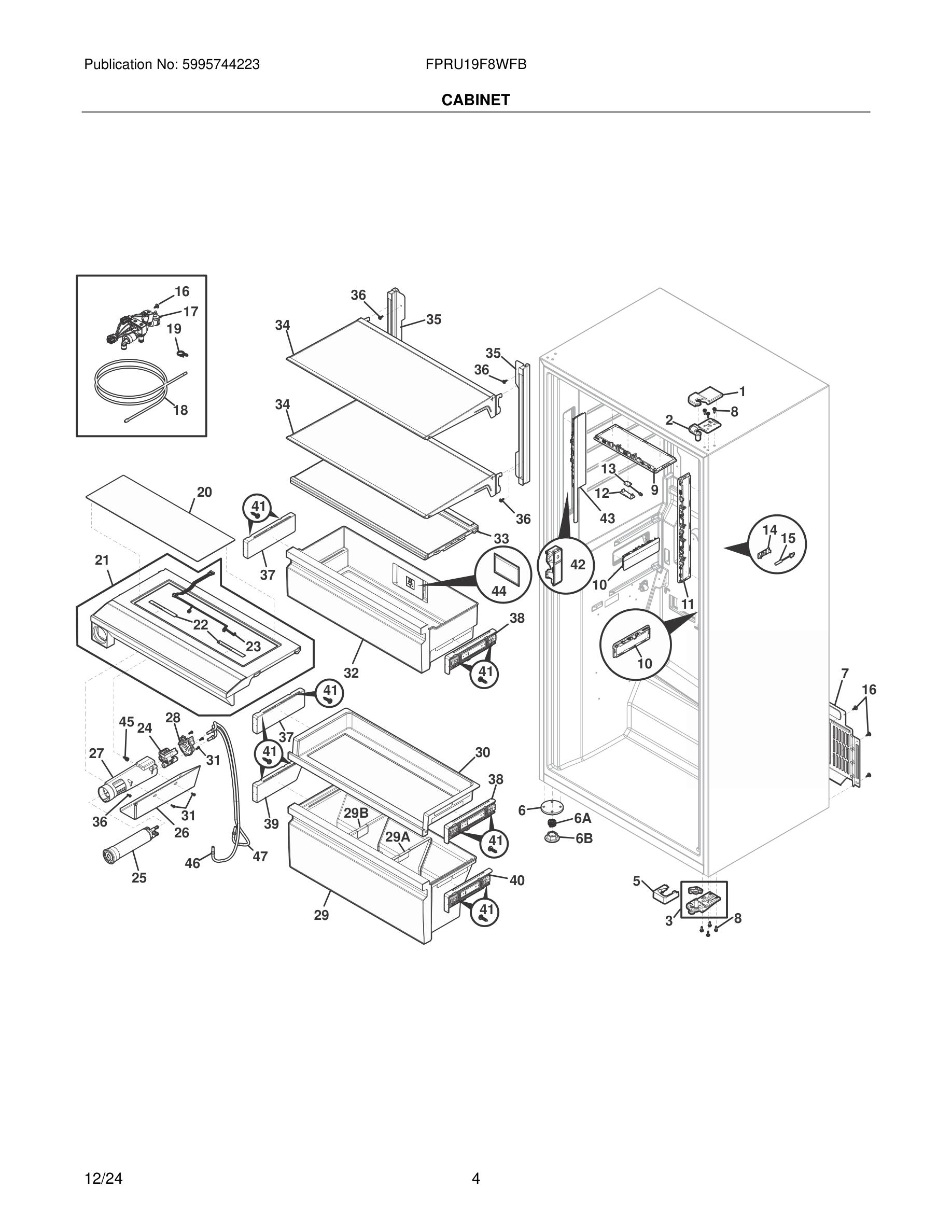

FPRU19F8WFB 05 – CABINET

Products

Position	Product
*	241500305 Frigidaire Refrigerator Screw
*	5304523801 Frigidaire Screw Assembly
*	WCI 5304534034
1	COVER
2	5304524636 Frigidaire Refrigerator Hinge
4	5304525238 Frigidaire Refrigerator Hinge Assembly
5	5304525237 Frigidaire Refrigerator Cover
6	5304528813 Frigidaire Refrigerator Base
6A	5304528814 Frigidaire Nut
6B	5304528815 Frigidaire Leg/Foot Levelling
7	5304525858 Frigidaire Refrigerator Cover
8	5304522279 Frigidaire Screw
9#	5304530711 Frigidaire Refrigerator Light Assembly
10#	5304530715 Frigidaire Refrigerator Assembly Light
11#	5304530717 Frigidaire Refrigerator Light Assembly
12	5304524761 Frigidaire Refrigerator Cover
13#	5304519044 Frigidaire Magnet
14	5304524759 Frigidaire Refrigerator Cover
15#	5303918775 Frigidaire Refrigerator Thermistor
17*	5304528818 Frigidaire Screw
17#	5304524756 Frigidaire Refrigerator Valve
18#	5304528820 Frigidaire Refrigerator Tube
19	5304528819 Frigidaire Refrigerator Clamp
20	ASSY-CONTROL COVER TCD HLNDR
21#	5304524714 Frigidaire Refrigerator Control Panel
22#	POLARIS LED CLUSTER PCBA
23#	HARNESS
24#	5304524817 Frigidaire Water Filter Head Manifold
25	FPPWFU01 Frigidaire Refrigerator PurePour Water Filter
26	5304524748 Frigidaire Refrigerator Cover
27	5304524837 Frigidaire Refrigerator Bracket
28#	MOTOR-FAN, EVAP RADIAL
29B	5304525862 Frigidaire Divider
29	5304524710 Frigidaire Refrigerator Assembly-Drawer
29A	5304525861 Frigidaire Divider
30	5304524706 Frigidaire Refrigerator Shelf Assembly
31	5304453707 Frigidaire Oven Screw
32	5304524701 Frigidaire Refrigerator Drawer Assembly
32*	5304522179 Frigidaire Tape
33	5304524894 Frigidaire Refrigerator Crisper Cover
34*	297350900 Frigidaire Refrigerator Gasket
34	5304524669 Frigidaire Shelf
35	RAIL-SHLF SUPRT CNTLVR ASSY TT
36	5304519765 Frigidaire Refrigerator Screw
37	5304524850 Frigidaire Refrigerator Slide Assembly
38	5304524849 Frigidaire Refrigerator Slide Assembly
39	5304524852 Frigidaire Refrigerator Slide Assembly
40	5304524851 Frigidaire Refrigerator Slide Assembly
41	5304524845 Frigidaire Refrigerator Screw
42#	5304524691 Frigidaire Refrigerator Dispenser
43#	5304524659 Frigidaire Refrigerator Lamp Assembly
44	FRPAPKRF Frigidaire Freshness Booster Refill
45	WCI 5304525288
46	242220129 Frigidaire Hose Assembly
47	242220130 Frigidaire Hose Assembly
