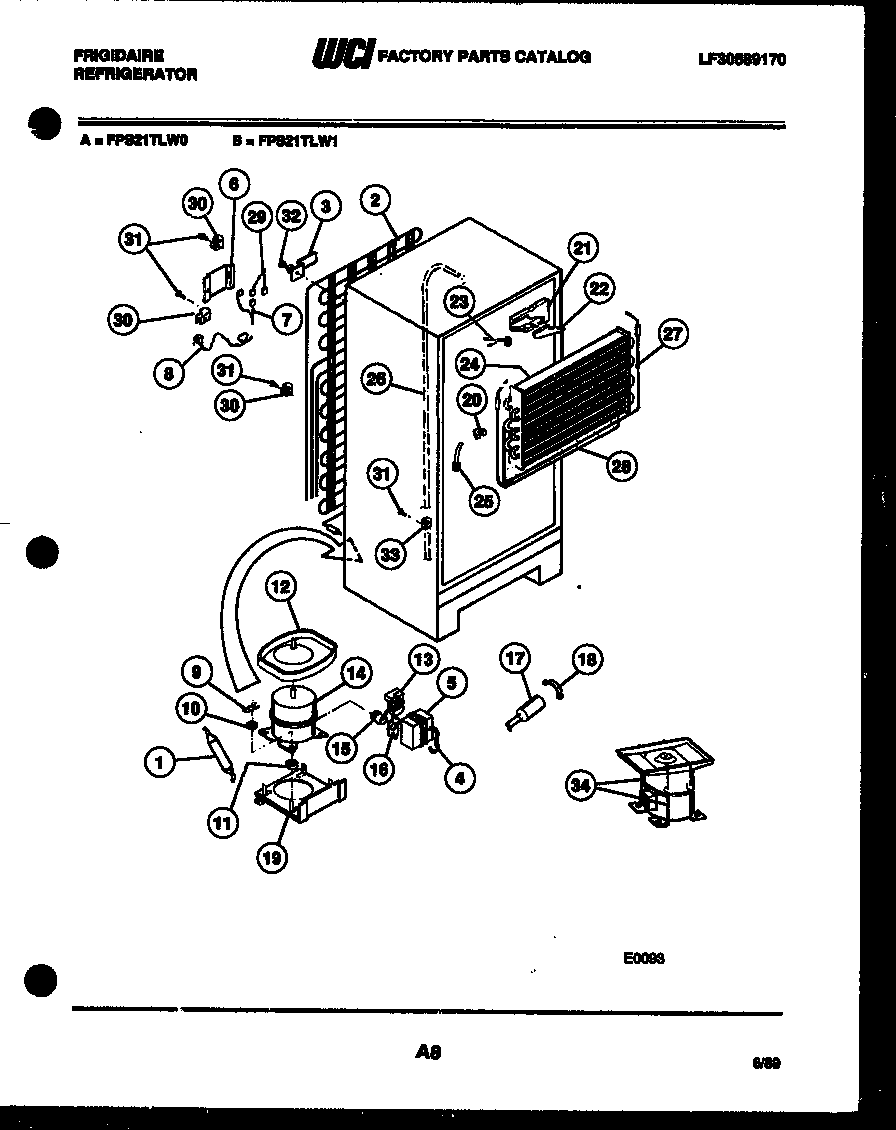

FPS21TLA1 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*32292	WCI 09960001
*32291	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI 08000094
3	WCI 08003600
3A	WCI 08009617
4	STRAP-BALE
5	WCI 08016583
6	WCI 08013644
7	WCI 08009628
8	WCI 08000064
9	CLIP (4)
10	WCI 08003597
11	218513300 Frigidaire Refrigerator Compressor Mount Grommet
12B	NUT
12A	PAN-DEFROST
12	WCI 08003634
13	WCI 08017226
14	WCI 3916004
15	WCI 3202863
16	WCI 3202891
17	CAPACITOR-RUN
18	STRAP-CAPACITOR MTG
19	WCI 08013663
20	WCI 08017227
21	WCI 08013648
22	WCI 08013646
23	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24	WCI 08000062
25	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26	WCI 08010274
27	5317842502 Frigidaire Defrost Heater
28	INSULATOR
29	HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
30	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
31	5304455651 Frigidaire Refrigerator Screw
32	5308000039 Frigidaire Refrigerator Screw
33	240396801 Frigidaire Refrigerator Tube Clamp
34	PAN RETAINER KIT-SERVICE
