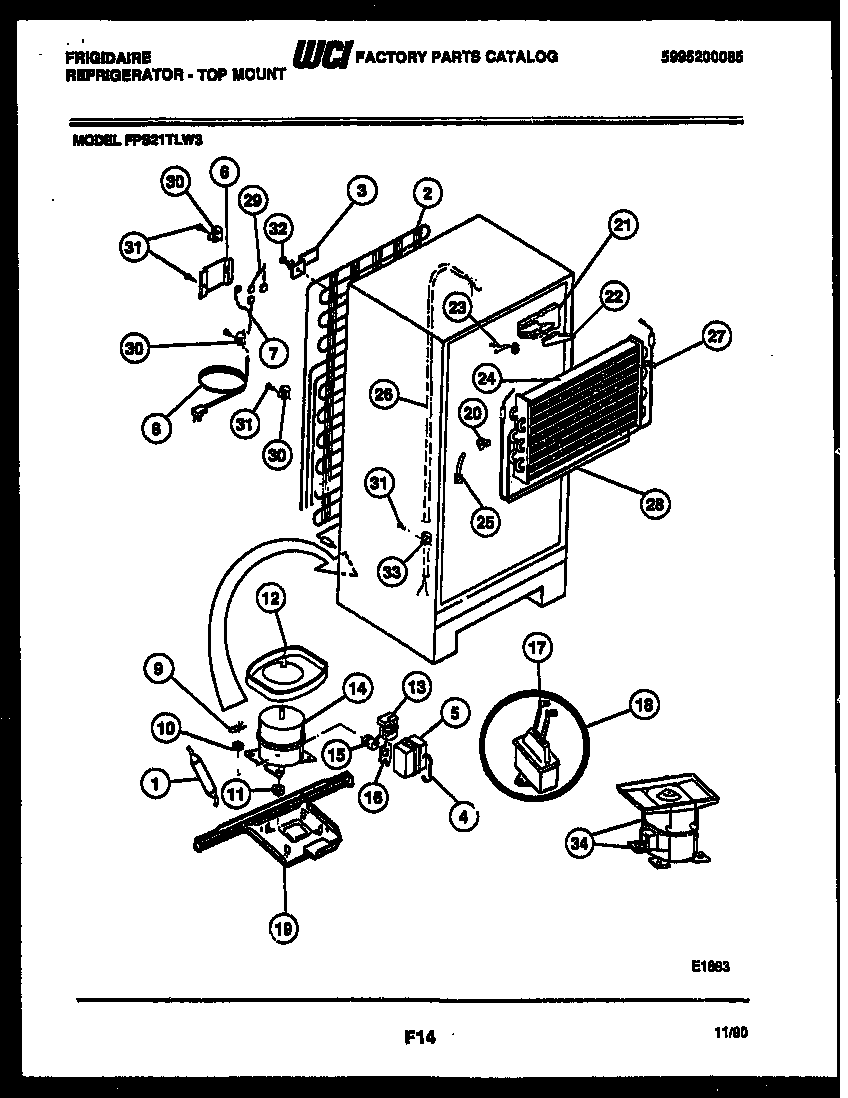

FPS21TLH3 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

FPS21TLH3 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FPS21TLH3 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*39489HOT TUBE REPAIR KIT-SERVICE
*394895303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*394895303208309 Frigidaire Refrigerator Plug Hole
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI 5300163133
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
3BRACKET-MTG (4)
4WCI 5303211232
5WCI 5303209254
6WCI 5303001197
7WIRING HARNESS, COMPRESSOR,
8CORD-ELECTRIC POWER
9CLIP – COMPRESSOR MTG
10WASHER-COMPR MTG
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12APAN-DEFROST DRAIN, ORIG/SVCE COMPR
12PAN-DEFROST-ORIG COMPRESSOR
12BNut,lock `1/4-20 ,drain pan mtg
13RELAY-TL
14COMPRESSOR W/ ELECTRICALS
15WCI 3206096
16WCI 3202891
17CAPACITOR
18STRAP-CAPACITOR MTG
19WCI 5308013663
20INSULATION BLOCK, LH
21INSULATION BLOCK, RH
22INSULATION PLUG, RH
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24WCI 5300162506
255308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26WCI 5308000728
275317842502 Frigidaire Defrost Heater
28INSULATOR-EVAP, PLASTIC
29HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
305303001199 Frigidaire Refrigerator Wiring Harness Clamp
315304455651 Frigidaire Refrigerator Screw
325308000039 Frigidaire Refrigerator Screw
335308000133 Frigidaire Refrigerator Clamp
34PAN RETAINER KIT, SERVICE
