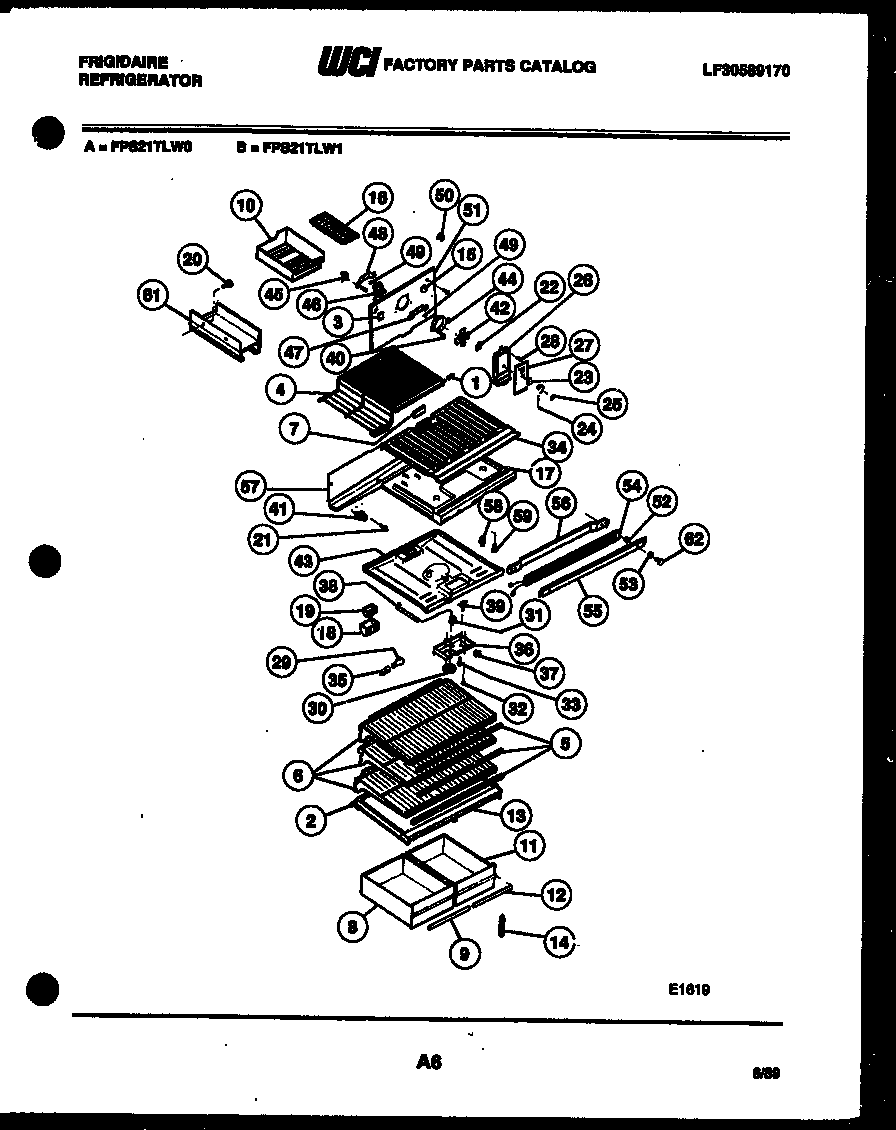

FPS21TLL1 04 – SHELVES AND SUPPORTS

FPS21TLL1 04 – SHELVES AND SUPPORTS

Written by

in

FPS21TLL1 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1END CAP-SHELF,PROTECTOR
2WCI 3200329
3WCI 08013636
4WCI 3205036
5TRIM
6WCI 3203770
7WCI 08000185
8PAN, CRISPER, LH
9TRIM-PAN
105303212918 Frigidaire Refrigerator Cont
11PAN, CRISPER, RH
12TRIM-PAN
13WCI 3007603
14WCI 3016528
15PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
16WCI 01121808
17WCI 3019039
18WCI 08000055
19WCI 3204206
205304455852 Frigidaire Refrigerator Screw
21PIN-PUSH
22WCI 08000066
23WCI 08000067
24WCI 08009793
25LABEL, KNOB
26WCI 08009825
27WCI 08009934
29316538904 Frigidaire Oven Lamp Light
30KNOB, TEMP CONTROL
31CONTROL-TEMPERATURE
325304455649 Frigidaire Refrigerator Screw
33SCREW-MOUNTING (NON-ILLUSTRATED)
34WCI 08013664
35218906802 Frigidaire Light Lamp Socket
36CONTROL BOX
36A5304455650 Frigidaire Refrigerator Screw
37WCI 3018896
38WCI 3018891
39215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
40218843801 Frigidaire Refrigerator Screw
41WCI 08000056
425308000010 Frigidaire Refrigerator Evaporator Fan Blade
43WCI 3019038
44WCI 08000124
45WCI 08000107
45A5304455651 Frigidaire Refrigerator Screw
465300158289 Frigidaire Evaporator Fan Motor
47WCI 08000043
48WCI 08000042
49G187559 Frigidaire Refrigerator Bushing
50WCI 08000126
51WCI 08013665
52SPACER (NON-ILLUSTRATED)
53WASHER-MULLION (4)
54WCI 08000058
55WCI 3200370
56WCI 08010008
57WCI 08009772
585309918806 Frigidaire Refrigerator Light Switch Door
59WCI 08000070
61WCI 08009824
61AWCI 08012329
62WCI 08012258
