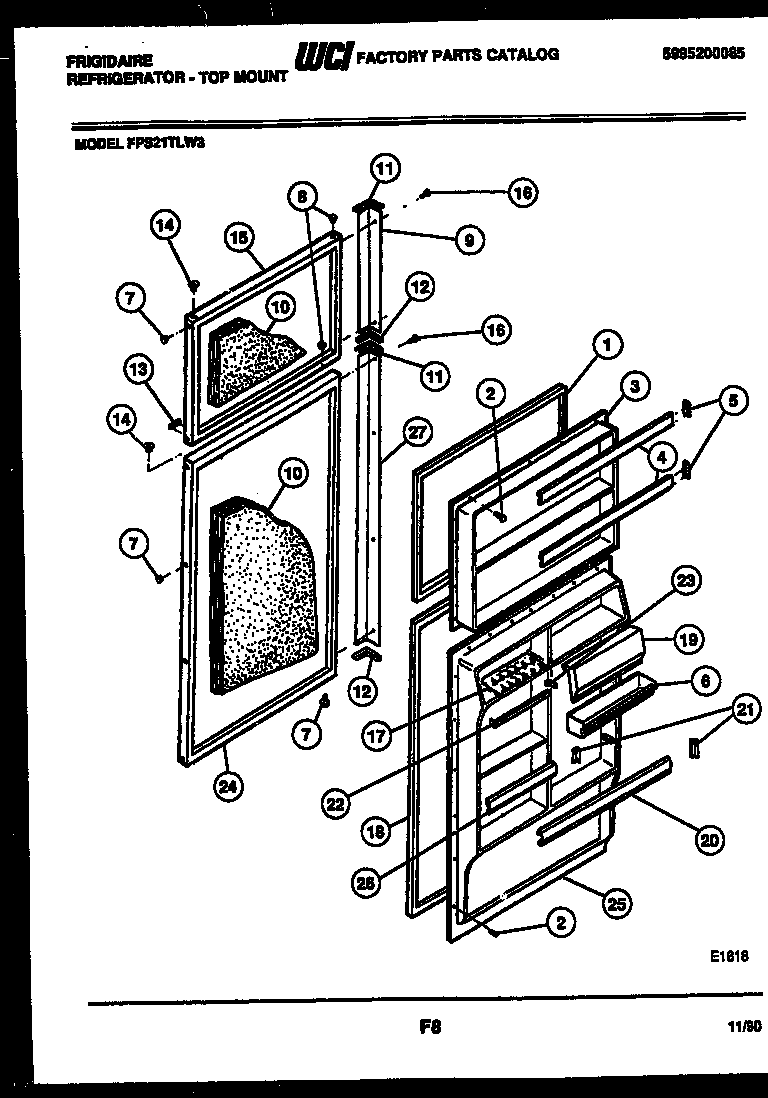

FPS21TLL3 02 – DOOR PARTSadmin2025-04-26T08:36:35+00:00FPS21TLL3 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *39479 | WCI 5308000255 |
| *39479 | WCI 5308011745 |
| *39479 | DOOR STOP, REFR SECTION |
| *39479 | SNUGGER-FINGER (NON-ILLUSTRATED) |
| 1 | WCI 5308017483 |
| 2 | 5304455651 Frigidaire Refrigerator Screw |
| 3 | WCI 3019030 |
| 4 | WCI 3017419 |
| 6 | WCI 3018973 |
| 7 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 8 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 9 | HANDLE-COMPLETE FRZR (W/ TRIM & END CAPS) |
| 10 | INSULATION-BULK (NON-ILLUSTRATED) |
| 11 | WCI 5308010239 |
| 12 | END CAP-BOTTOM (2) |
| 13 | NAMEPLATE |
| 14 | BEARING-HINGE |
| 15 | PANEL, FREEZER, ALMD |
| 16 | SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2 |
| 17 | 215817806 Frigidaire Refrigerator Egg Tray |
| 18 | GASKET-REFR DOOR, BROWN, MAGNETIC |
| 19 | DOOR-DAIRY |
| 20 | 215516220 Frigidaire Refrigerator Door Rack |
| 21A | 5303325991 Frigidaire Refrigerator Door Bar Endcap |
| 21 | 5303325990 Frigidaire Refrigerator Door Bar End Cap |
| 22 | WCI 3019031 |
| 23 | 5303323480 Frigidaire Refrigerator Door Bar End Cap Rh |
| 23A | 5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap |
| 24 | WCI 5308009930 |
| 25 | WCI 3019032 |
| 27 | HANDLE-COMPLETE |
