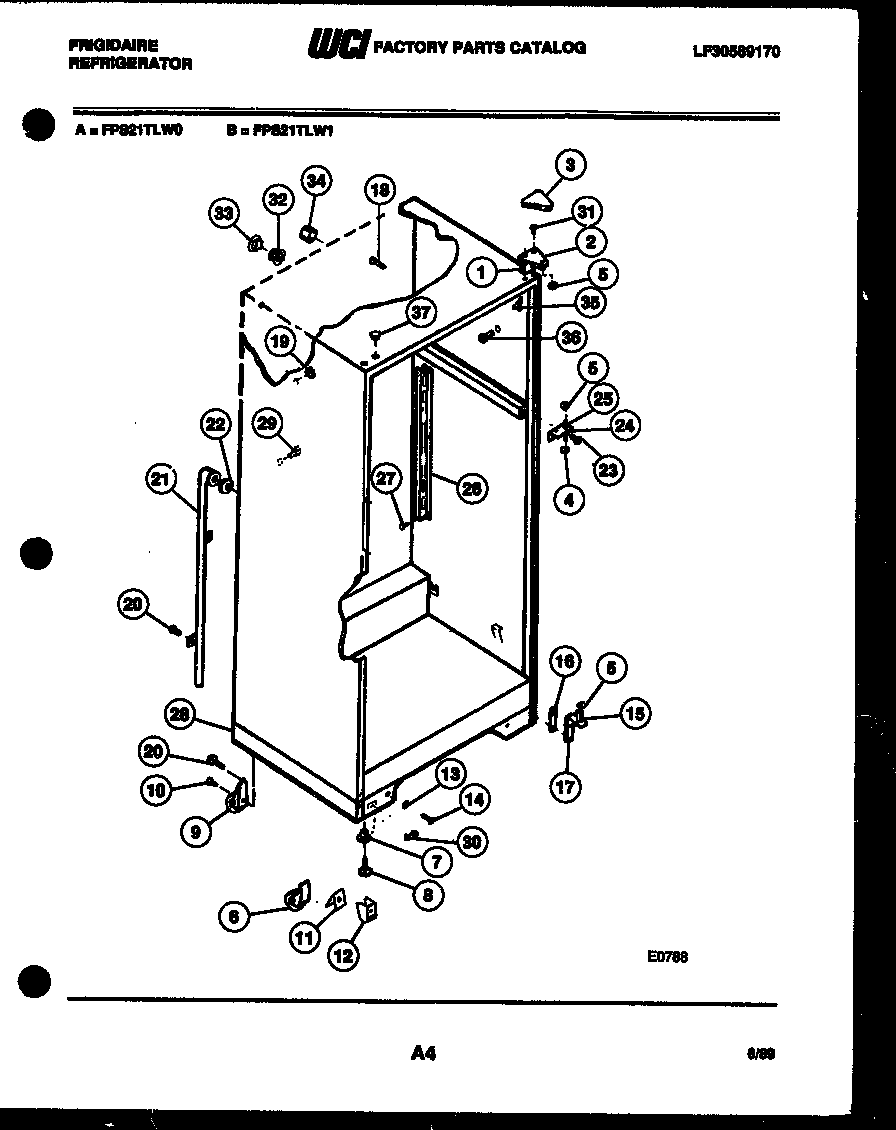

FPS21TLW0 03 – CABINET PARTS

Products

Position	Product
*32233	TAPPING PLATE (2)
1	WCI 08012829
2	WCI 08012843
3	WCI 08012820
4	WCI 08000100
5	WCI 08000007
6	WCI 08009760
7	WCI 08003584
8	WCI 08003583
9	WCI 08009773
10	WCI 08009762
11	WCI 08009790
12	WCI 08013678
13	WCI 08011326
14	WCI 08009761
15	5303001321 Frigidaire Refrigerator Lower Hinge Pin
16	SHIM
17	HINGE-BRACKET-BOTTOM
18	WCI 08000097
19	WCI 08016571
20	5304455651 Frigidaire Refrigerator Screw
21	WCI 08010012
22	RING-SEAL
23B	SPACER (NON-ILLUSTRATED)
23	WCI 08012258
23A	WASHER-MULLION (4)
24	WCI 08000757
25	WCI 08000184
26	WCI 08000302
27	5304455852 Frigidaire Refrigerator Screw
28	WCI 08010092
29	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
30	WCI 08003585
31	241710601 Frigidaire Refrigerator Screw
32	FERRULE
33	FERRULE
34	TUBE
35	WCI 3202336
36	5304509705 Frigidaire Refrigerator Grommet
37	WCI 08007099
