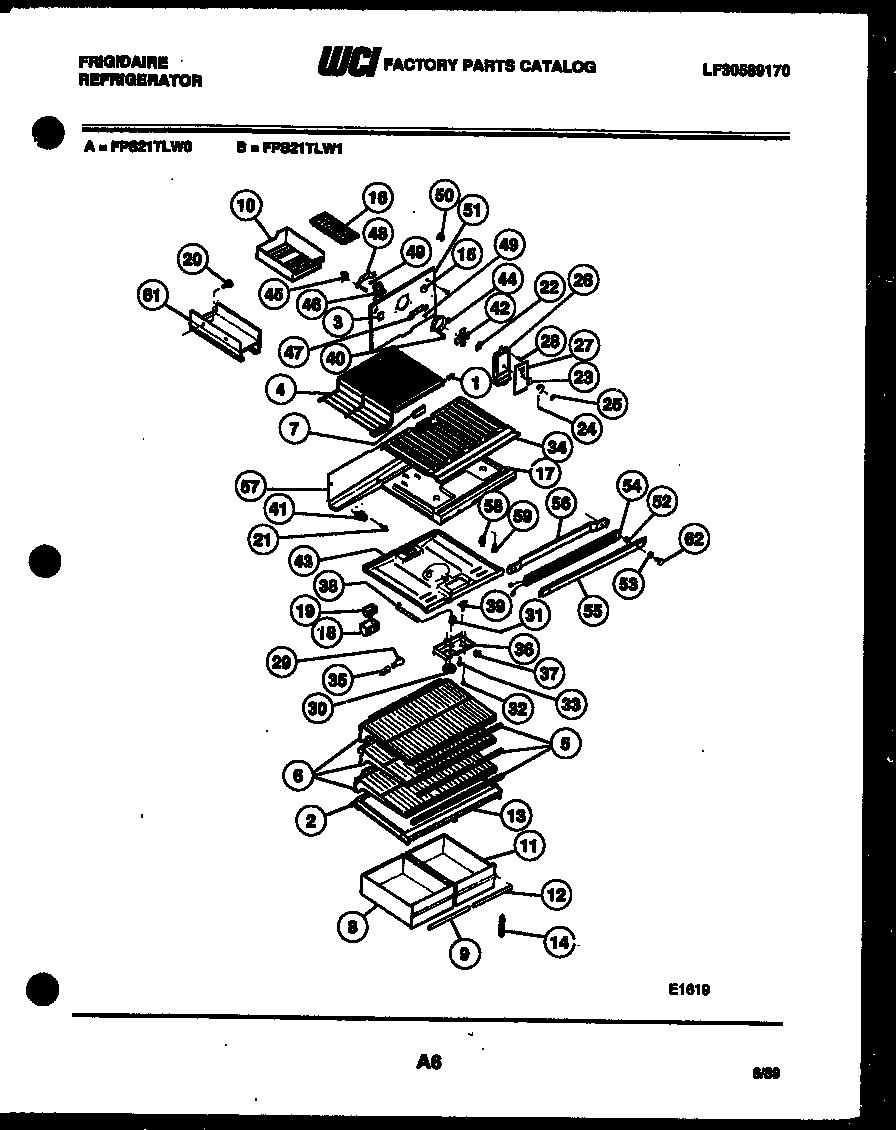

FPS21TLW0 04 – SHELVES AND SUPPORTS

Written by

Products

Position	Product
1	END CAP-SHELF,PROTECTOR
2	WCI 3200329
3	WCI 08013636
4	WCI 3205036
5	TRIM
6	WCI 3203770
7	WCI 08000185
8	PAN, CRISPER, LH
9	TRIM-PAN
10	5303212918 Frigidaire Refrigerator Cont
11	PAN, CRISPER, RH
12	TRIM-PAN
13	WCI 3007603
14	WCI 3016528
15	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
16	WCI 01121808
17	WCI 3019039
18	WCI 08000055
19	WCI 3204206
20	5304455852 Frigidaire Refrigerator Screw
21	PIN-PUSH
22	WCI 08000066
23	WCI 08000067
24	WCI 08009793
25	LABEL, KNOB
26	WCI 08009825
27	WCI 08009934
29	316538904 Frigidaire Oven Lamp Light
30	KNOB, TEMP CONTROL
31	CONTROL-TEMPERATURE
32	5304455649 Frigidaire Refrigerator Screw
33	SCREW-MOUNTING (NON-ILLUSTRATED)
34	WCI 08013664
35	218906802 Frigidaire Light Lamp Socket
36	CONTROL BOX
36A	5304455650 Frigidaire Refrigerator Screw
37	WCI 3018896
38	WCI 3018891
39	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
40	218843801 Frigidaire Refrigerator Screw
41	WCI 08000056
42	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
43	WCI 3019038
44	WCI 08000124
45	WCI 08000107
45A	5304455651 Frigidaire Refrigerator Screw
46	5300158289 Frigidaire Evaporator Fan Motor
47	WCI 08000043
48	WCI 08000042
49	G187559 Frigidaire Refrigerator Bushing
50	WCI 08000126
51	WCI 08013665
52	SPACER (NON-ILLUSTRATED)
53	WASHER-MULLION (4)
54	WCI 08000058
55	WCI 3200366
56	WCI 08010008
57	WCI 08009772
58	5309918806 Frigidaire Refrigerator Light Switch Door
59	WCI 08000070
61	WCI 08009824
61A	WCI 08012329
62	WCI 08012258
