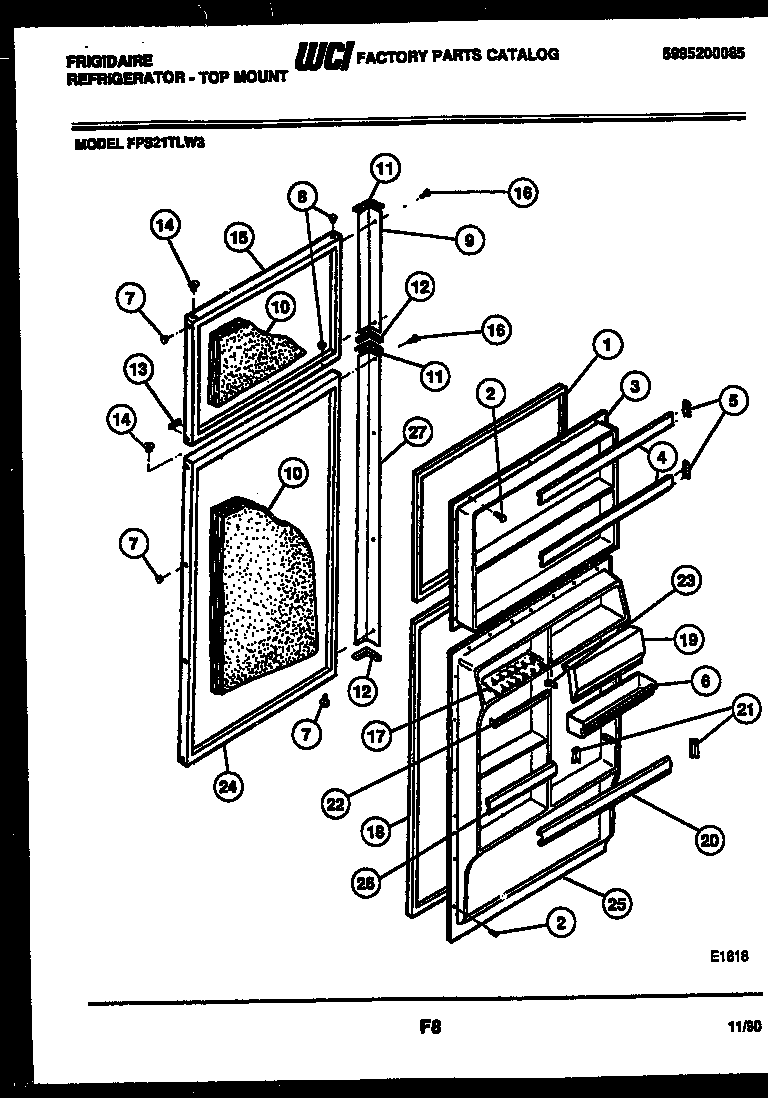

FPS21TLW3 02 – DOOR PARTS

Products

Position	Product
*39479	WCI 5308000255
*39479	WCI 5308011745
*39479	DOOR STOP, REFR SECTION
*39479	SNUGGER-FINGER (NON-ILLUSTRATED)
1	WCI 5308017483
2	5304455651 Frigidaire Refrigerator Screw
3	WCI 3019030
4	WCI 3017419
6	WCI 3018973
7	240494001 Frigidaire Refrigerator Plug Button
8	PLUG-BUTTON, WHITE, HINGE BRG HOLE
9	HANDLE-COMPLETE FRZR (W/ TRIM & END CAPS)
10	INSULATION-BULK (NON-ILLUSTRATED)
11	WCI 5308010239
12	END CAP-BOTTOM (2)
13	NAMEPLATE
14	BEARING-HINGE
15	WCI 5318468708
16	SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
17	215817806 Frigidaire Refrigerator Egg Tray
18	GASKET-REFR DOOR, BROWN, MAGNETIC
19	DOOR-DAIRY
20	215516220 Frigidaire Refrigerator Door Rack
21	5303325990 Frigidaire Refrigerator Door Bar End Cap
21A	5303325991 Frigidaire Refrigerator Door Bar Endcap
22	WCI 3019031
23	5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
23A	5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
24	WCI 53080009928
25	WCI 3019032
27	HANDLE-COMPLETE
