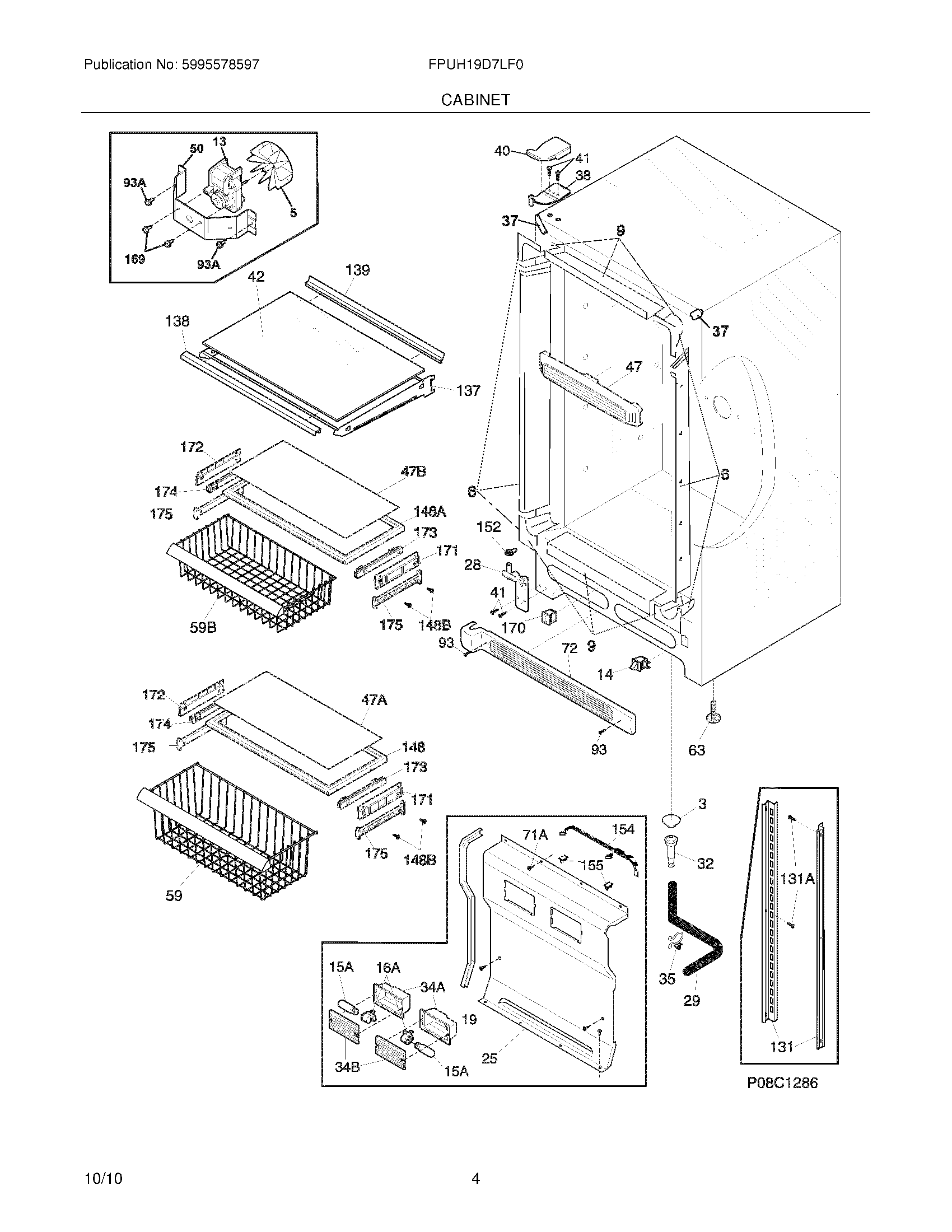

FPUH19D7LF0 05 – CABINET

FPUH19D7LF0 05 – CABINET

Written by

in

FPUH19D7LF0 05 – CABINET

Products

PositionProduct
NIWCI 297305500
NIWCI 297330100
NIBracket,RH leg levelor
NIBracket,LH leg levelor
NIWCI 216327800
NI297001704 Frigidaire Refrigerator Insulation
3216503100 Frigidaire Refrigerator Screen-Drain
5FAN BLADE, EVAPORATOR
6297200900 Frigidaire Refrigerator Breaker Kit W/Corne
9297200100 Frigidaire Refrigerator W/Corner Breaker Kit
13EVAP FAN MOTOR – 115V
14216822900 Frigidaire Refrigerator Switch
15A241552802 Frigidaire Refrigerator Light Bulb
16A297139501 Frigidaire Refrigerator Socket
19216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
25WCI 297099254
285303018741 Frigidaire Refrigerator Freezer Hinge Kit
295304512272 Frigidaire Hose Drain
325304511843 Frigidaire Refrigerator Sleeve
34B297053200 Frigidaire Refrigerator Lens
34AWCI 297053102
35216273000 Frigidaire Refrigerator Strap
37297273906 Frigidaire Refrigerator Corner Trim Cabinet
38HINGE-UPPER, LH
40COVER-HINGE, GRAY, LH
41240578902 Frigidaire Screw Mounting Hinge
42297265900 Frigidaire Refrigerator Glass Shelf
47A297102705 Frigidaire Glass Cover Crisper
47B297102704 Frigidaire Glass Crisper Cover
47297192903 Frigidaire Refrigerator Baffle
50WCI 08013207
59BWCI 297269700
59WCI 297270000
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71AScrew,8-18AB x.470 QX
72297036907 Frigidaire Refrigerator Grille Kickplate
93A241853202 Frigidaire Refrigerator Screw
93216858001 Frigidaire Refrigerator Screw
131SCREW, TH, 8-18X.470 AB QX, WHITE, (6)
131297130200 Frigidaire CHANNEL-SHELF MTG
137297050600 Frigidaire Refrigerator Frame-Shelf
138WCI 297261400
139WCI 297261500
148297142600 Frigidaire Refrigerator/Freezer Screw
148WCI 297271704
148WCI 297271703
152BEARING-HINGE
154297053000 Frigidaire Refrigerator Wire
155WCI 5303313703
169216912401 Frigidaire Refrigerator Screw
170297280403 Frigidaire Refrigerator Valve
171297092700 Frigidaire Refrigerator Bracket
172297092701 Frigidaire Refrigerator Bracket
1735304517648 Frigidaire Refrigerator Basket-Slide
1745304517649 Frigidaire Refrigerator Basket-Slide
175297099500 Frigidaire Refrigerator Support
