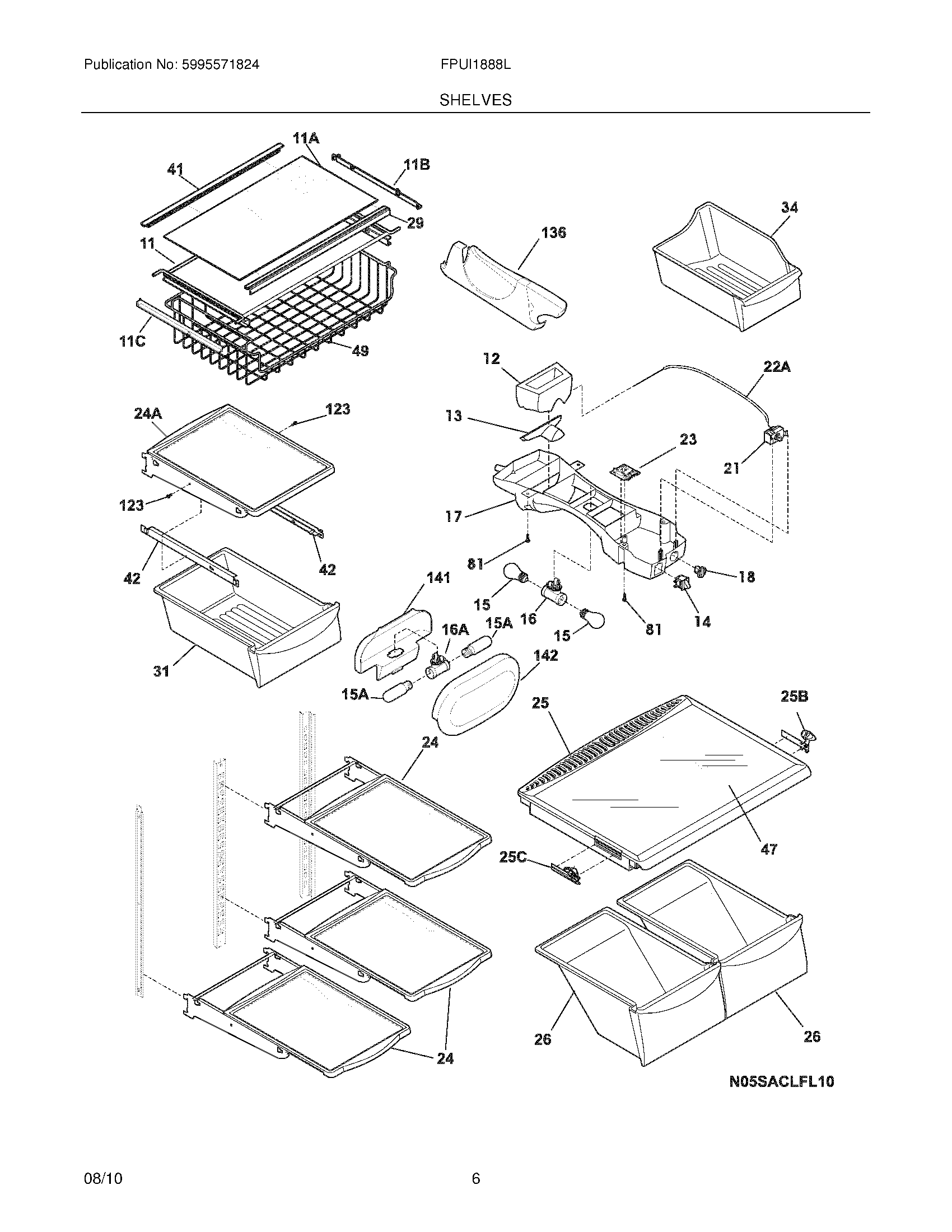

FPUI1888LR1 07 – SHELVES

FPUI1888LR1 07 – SHELVES

Written by

in

FPUI1888LR1 07 – SHELVES

Products

PositionProduct
NI5304455649 Frigidaire Refrigerator Screw
NI242081702 Frigidaire Refrigerator Wiring Harness
NI5304535377 Frigidaire Aluminum Tape
NIWCI 242028593
NI240568606 Frigidaire Refrigerator Coil Cover Seal
11FRAME-SHELF, FULL WIDTH
11AGLASS-SHELF, FULL SHELF
11BCOVER, HANGER RH, WIRE BASKET
11CCOVER, HANGER LH, WIRE BASKET
12241542001 Frigidaire Refrigerator Deflector
13240362601 Frigidaire Refrigerator P1 Diffuser
14241554901 Frigidaire Refrigerator Light/Lamp Switch
15316538904 Frigidaire Oven Lamp Light
15A241552802 Frigidaire Refrigerator Light Bulb
16A241622802 Frigidaire Refrigerator Socket-Light
16240364201 Frigidaire Refrigerator Light/Lamp Socket
16AWCI 241593901
17WCI 240352704
18Knob-control
21241537103 Frigidaire Refrigerator Temperature Control Thermostat
22A240468202 Frigidaire Refrigerator Tube
23WCI 242011003
24241616607 Frigidaire Refrigerator Spill Safe Shelf
25240364787 Frigidaire Refrigerator Crisper Pan Cover
25C241613502 Frigidaire Refrigerator Humidity Control Crisper Drawer
25B241613501 Frigidaire Refrigerator Humidity Control Crisper Drawer
26240337103 Frigidaire Crisper Drawer
29TRIM-SHELF, FRONT
31MEAT PAN
34240385201 Frigidaire Refrigerator Ice Container
41TRIM-SHELF, REAR
42240365401 Frigidaire Refrigerator Meat Pan Tray Hanger Left Hand
42240356501 Frigidaire Tray Hanger Pan
47CRISPER COVER GLASS INSERT
49WCI 241833101
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
136DISPENSER-CAN, WHITE
141WCI 241562101
142WCI 241562202
