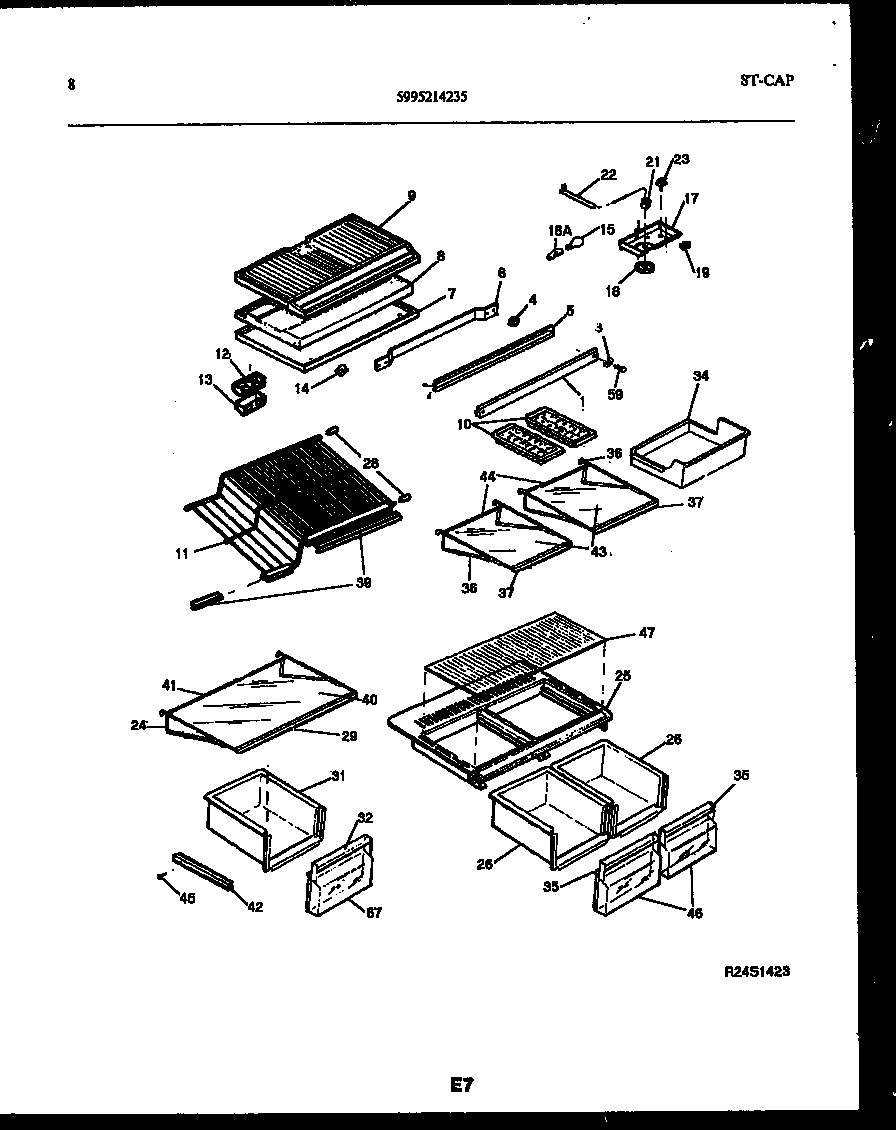

FPW18TPW1 05 – SHELVES AND SUPPORTS

FPW18TPW1 05 – SHELVES AND SUPPORTS

Written by

in

FPW18TPW1 05 – SHELVES AND SUPPORTS

Products

PositionProduct
*57091WCI 5303001260
1WCI 3206446
3WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
4WCI 5303206753
5WCI 3206445
6WCI 5303206752
7WCI 3206454
7AWCI 5303001380
8WCI 3206456
8AWCI 3018900
9BOTTOM PANEL-FRZR
9A3205266 Frigidaire Refrigerator Edge Protector
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303208422
12BEXTENSION, AIR DEFLECTOR, WITH INSULATION
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17A5304455650 Frigidaire Refrigerator Screw
17WCI 3206390
18WCI 3206391
19WCI 3206389
21WCI 5303018894
