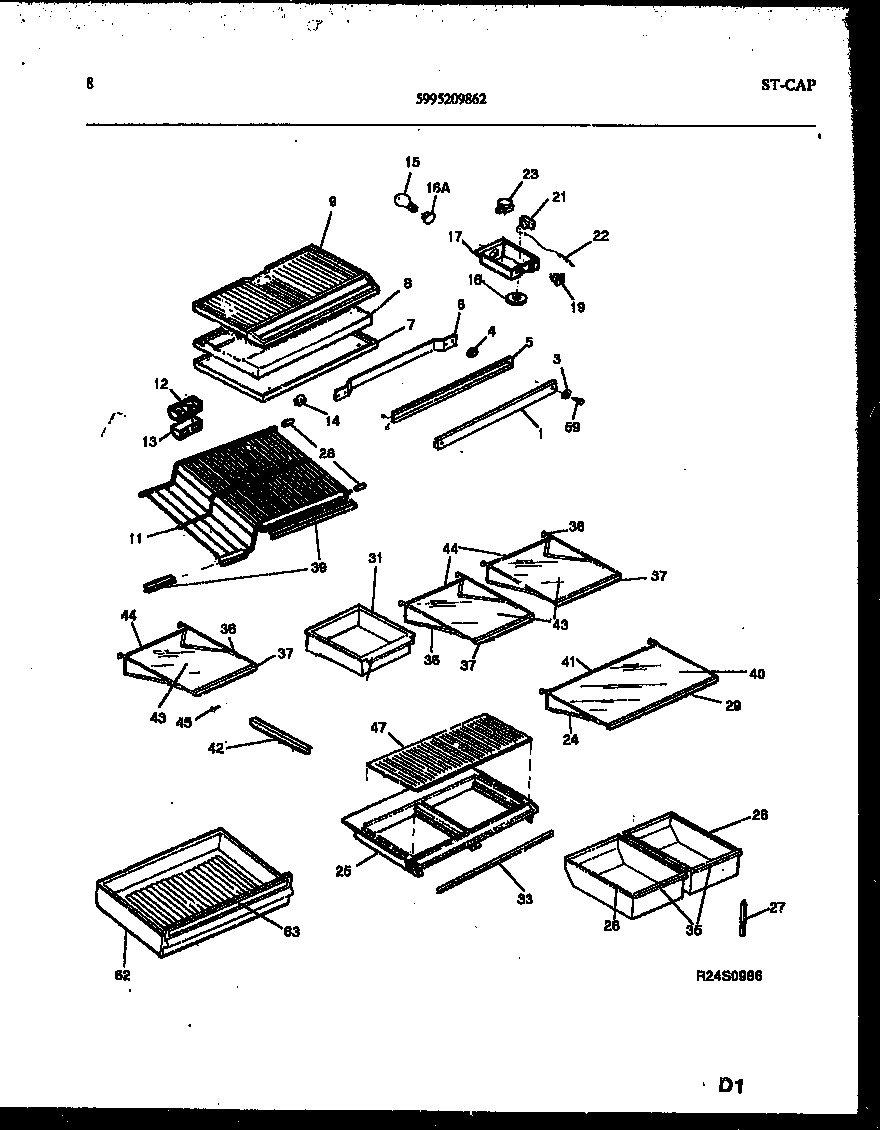

FPW21TIPL0 05 – SHELVES AND SUPPORTS

FPW21TIPL0 05 – SHELVES AND SUPPORTS

Written by

in

FPW21TIPL0 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7WCI 3019038
7AWCI 5303001380
8AHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
8WCI 5303019039
9BOTTOM, FREEZER
9A3205266 Frigidaire Refrigerator Edge Protector
11SHELF-FREEZER, STEP
12BEXTENSION, AIR DEFLECTOR, WITH INSULATION
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17CONTROL BOX
17A5304455650 Frigidaire Refrigerator Screw
18KNOB, TEMP CONTROL
19WCI 5303018896
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24BWCI 5303211965
24CWCI 5303211966
24WCI 5303211963
24ACLIP-CANTILEVER SHLF
25AWCI 3200579
25WCI 5303019035
26PAN, CRISPER, LH
