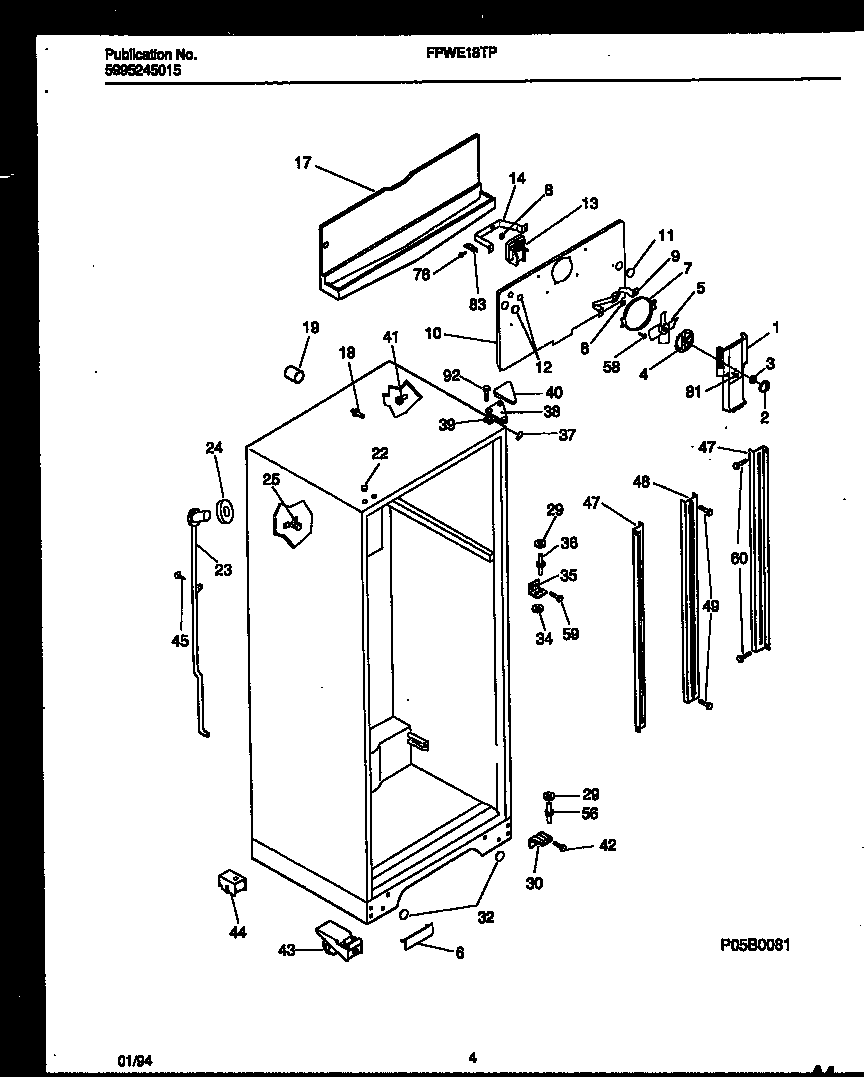

FPWE18TPW1 03 – CABINET PARTS

FPWE18TPW1 03 – CABINET PARTS

Written by

in

FPWE18TPW1 03 – CABINET PARTS

Products

PositionProduct
*91796PLUG, BUTTON, CABINET LINER (NI)
1WCI 3206387
2WCI 5303275839
3Nut,push-on
4WCI 3206110
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 3206135
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 3206451
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 215079100
12WCI 215079000
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17TROUGH-DRAIN
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22215774901 Frigidaire Refrigerator Button Plug
23WCI 5303269702
24WCI 5303207353
25AWCI 5303001361
25WCI 5308000056
29WASHER, .34 X .62 X .05, NYLON
30WCI 3206136
32WCI 215217702
34WCI 5308000186
35BRACKET-CTR HINGE
36WCI 5308000184
37TRIM-CABINET CORNER, WHITE
38WCI 3206100
39SHIM – UPPER HINGE
40WCI 3206101
41A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
415304509705 Frigidaire Refrigerator Grommet
42241710601 Frigidaire Refrigerator Screw
43WCI 5300188673
43E5304500008 Frigidaire Oven Screw
43BBOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
43DWCI 5308011326
43CWCI 5308009790
43AWCI 5308009760
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
47WCI 3206202
48WCI 3916030
49WCI 5308016568
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59WCI 5308012258
605304455852 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
