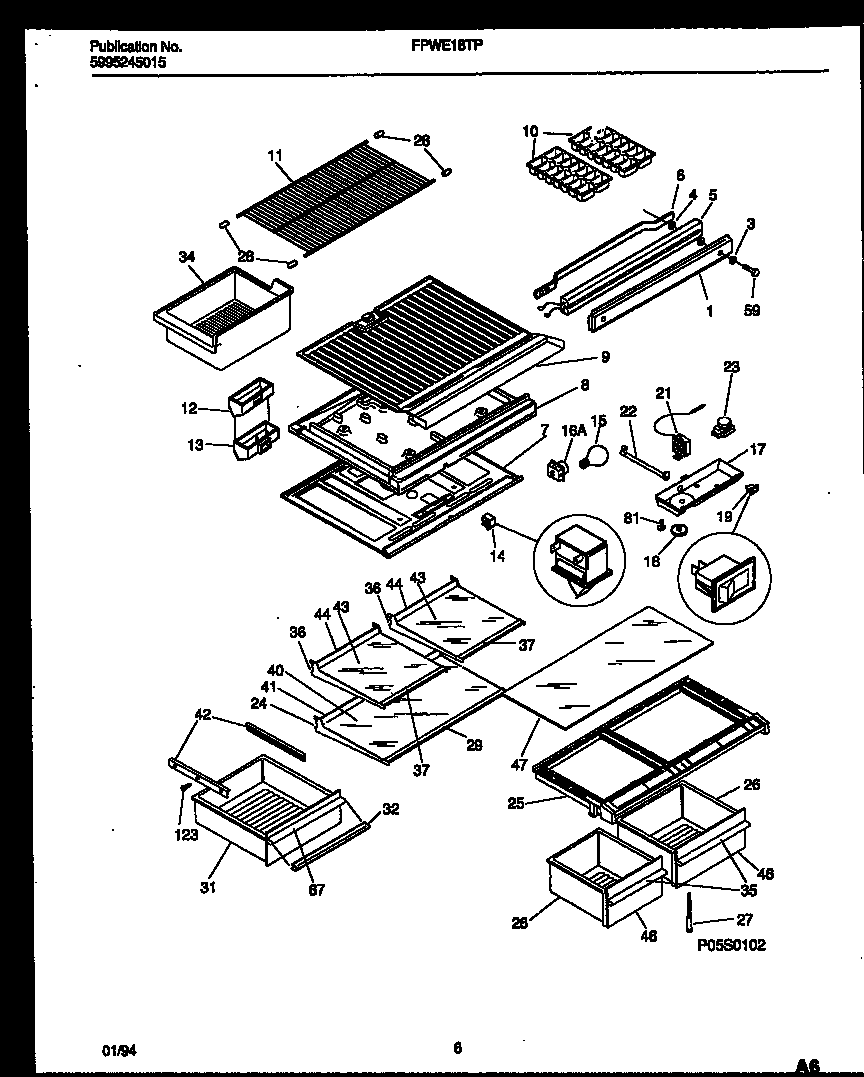

FPWE18TPW1 04 – SHELVES AND SUPPORTS

FPWE18TPW1 04 – SHELVES AND SUPPORTS

Written by

in

FPWE18TPW1 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*91801CLIP-CANTILEVER SHLF
1WCI 3206446
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 3206445
6WCI 215170802
7WCI 3206454
7AWCI 5303001380
8AWCI 3018900
8B3205266 Frigidaire Refrigerator Edge Protector
8WCI 3206456
9BOTTOM PANEL-FRZR
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF, FREEZER, FIXED/FLAT, FULL WIDTH, WIRE
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 3206390
17ANUT, ANCHOR (NI)
18WCI 3206391
19WCI 5303207249
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24WCI 215069021
25WCI 5303207340
25AWCI 5303208431
263206438 Frigidaire Refrigerator Crisper Pan
28END CAP-SHELF,PROTECTOR
29AWCI 5303209274
29WCI 215217504
31MEAT PAN
32WCI 5303208419
345303212918 Frigidaire Refrigerator Cont
35WCI 3206440
36FRAME-HALF SHELF, (2)
37WCI 215217503
37ARETAINER-GLASS, (3) (NON-ILLUSTRATED)
40WCI 5303282446
41ALOCK-SHELF TRIM, REAR
41WCI 5303282450
42WCI 5303282331
42WCI 5303282330
43WCI 5303282445
44WCI 5303282451
46WCI 5303290917
46WCI 5303290918
47INSERT-CRISPER COVER, GLASS
59WCI 5308012258
67WCI 5303290919
815304455650 Frigidaire Refrigerator Screw
1235304455651 Frigidaire Refrigerator Screw
