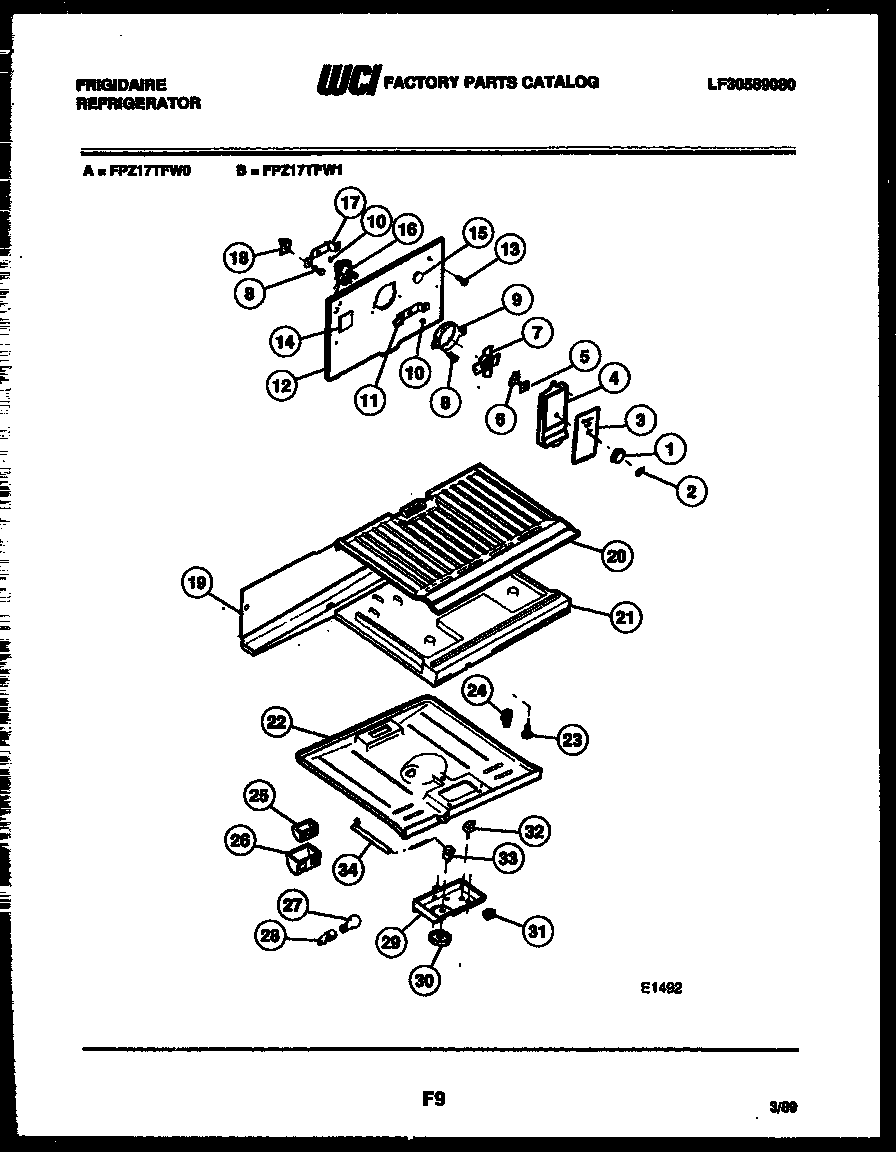

FPZ17TFA0 04 – REFRIGERATOR AND DAMPER CONTROL ASS

Products

PositionProduct
1WCI 08009793
2LABEL, KNOB
3WCI 08009822
4WCI 08009821
5WCI 08000067
6WCI 08000066
75308000010 Frigidaire Refrigerator Evaporator Fan Blade
85304455651 Frigidaire Refrigerator Screw
9WCI 08000124
10G187559 Frigidaire Refrigerator Bushing
11WCI 08000043
12AWCI 08000126
12WCI 08009753
13A240396801 Frigidaire Refrigerator Tube Clamp
14WCI 08013636
15PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
165300158289 Frigidaire Evaporator Fan Motor
17WCI 08000042
18WCI 08000107
19TROUGH-DRAIN
20WCI 08010002
20AWCI 08000185
21B3205266 Frigidaire Refrigerator Edge Protector
21AWCI 3018900
21OVEN LINER BACK
22TOP PANEL-REFR
23WCI 08000070
245309918806 Frigidaire Refrigerator Light Switch Door
25WCI 08000071
26WCI 08000055
27316538904 Frigidaire Oven Lamp Light
28218906802 Frigidaire Light Lamp Socket
29A5304455650 Frigidaire Refrigerator Screw
29CONTROL BOX
30KNOB, TEMP CONTROL
31WCI 3018896
32215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
32A5304455649 Frigidaire Refrigerator Screw
33AWCI 08000009
33CONTROL-TEMPERATURE
34WCI 3018891
