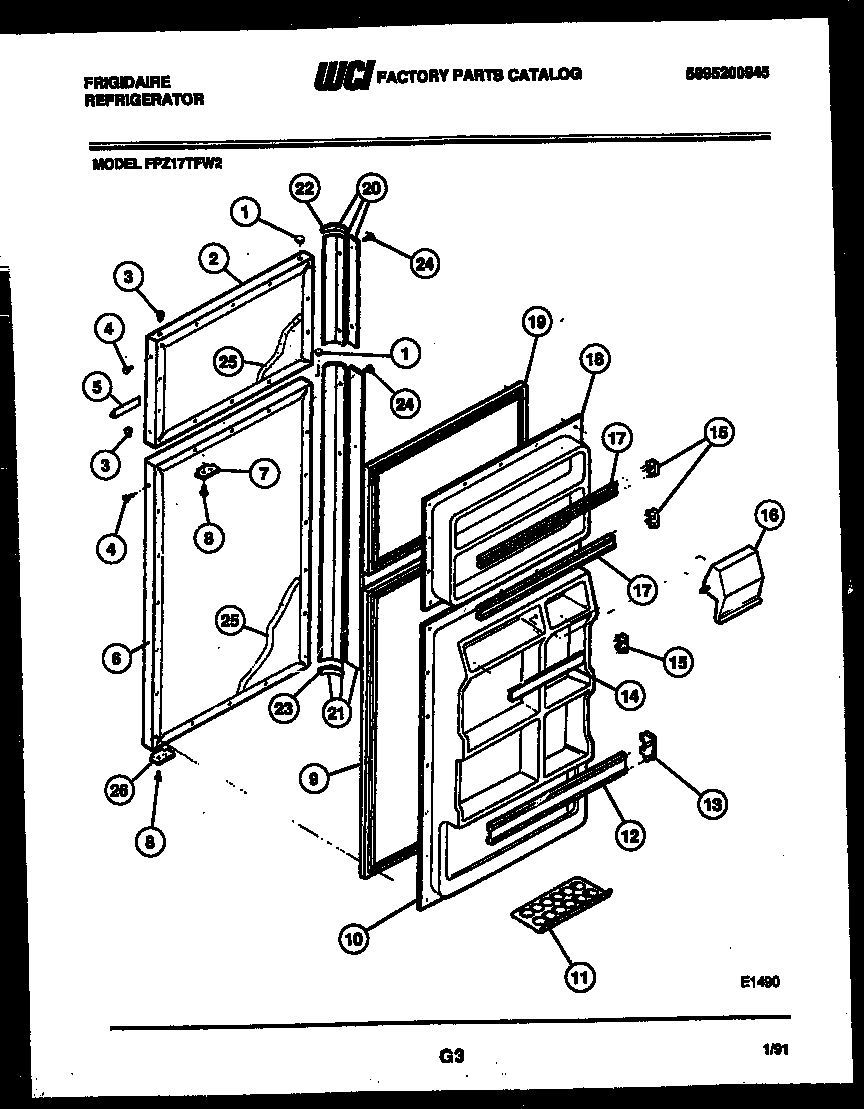

FPZ17TFA2 02 – DOOR PARTS

Products

Position	Product
1	BUTTON-AVOCADO
2	WCI 08012837
2	WCI 08012836
3	BEARING-HINGE
4	BUTTON-AVOCADO
5	WCI 3201581
6	WCI 08012839
7	WCI 5308000255
8	WCI 5308011745
9	218730603 Frigidaire Door Gasket
10	WCI 3200478
11	215817806 Frigidaire Refrigerator Egg Tray
12	215516220 Frigidaire Refrigerator Door Rack
13A	5303325991 Frigidaire Refrigerator Door Bar Endcap
13	5303325990 Frigidaire Refrigerator Door Bar End Cap
14	RACK-REFR DOOR
15	5303323480 Frigidaire Refrigerator Door Bar End Cap Rh
15A	5303323481 Frigidaire Refrigerator Left Hand Door Bar End Cap
16	WCI 3018867
17	WCI 5303018866
18	WCI 3018865
18A	5304455651 Frigidaire Refrigerator Screw
19	GASKET, FRZR DOOR, BROWN, MAGNETIC
20	HANDLE ASSY W/ CAP & TRIM-FREEZER
21	WCI 3202009
22	WCI 5308010239
23	END CAP-BOTTOM (2)
24	SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2
25	INSULATION-BULK (NON-ILLUSTRATED)
26	DOOR STOP, REFR SECTION
